ISO20653 IPX4 Test Chamber Electronic Electrical Products
ISO20653 IPX4 Test Chamber Electronic Electrical Products
ISO20653 IPX4 Test Chamber Electronic Electrical Products
ISO20653 IPX4 Test Chamber Electronic Electrical Products
ISO20653 IPX4 Test Chamber Electronic Electrical Products
ISO20653 IPX4 Test Chamber Electronic Electrical Products
ISO20653 IPX4 Test Chamber Electronic Electrical Products
ISO20653 IPX4 Test Chamber Electronic Electrical Products
Specifications
Brand Name :
LIB
Model Number :
R-1200
Certification :
CE,ROHS,
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
140 Sets/ Quarter
Delivery Time :
3-10 days
Packaging Details :
Wooden cases standard export package
Type :
IPX3 Test IPX4Test
Standard :
IEC 60529, ISO20653
Water System :
Water Circulation System
Interior Material :
SUS304 stainless steel
Application :
Lamps, Electric cabinets;
Controller :
Programmable controller
Description

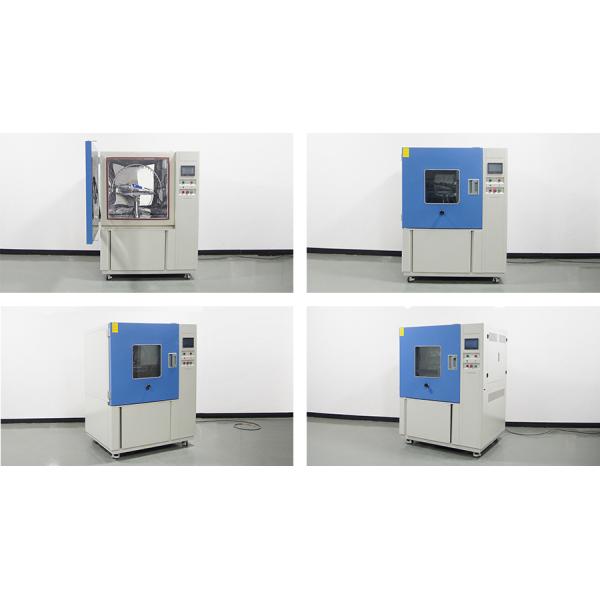

IPX4 Test Chamber

IPX4 test chamber is for testing electronic and electrical products, lamps, electric cabinets, electrical components, automobiles, motorcycles and their parts and components’ physical and other related properties under simulated climatic conditions.

After the test, ip water proof chamberis judged whether the performance of the product meets the requirements, so as to facilitate the design, improvement, verification and factory inspection of the product.

Main Parameters

Name

IPX4 Test Chamber

Model

R-800

R-1200

Internal Dimensions (mm)

900*900*900

1400*1400*1400

Overall Dimensions (mm)

1120*1460*1660

1600*1950*2100

Oscillating Tube Radius

0 ~ ±180° (Adjustable)

600mm

Swing Angle of Oscillating Tube

φ0.4mm

Turntable Rotation Speed

1r/min (Adjustable)

Water Pressure Control

Flowmeter

Controller

Programmable color LCD touch screen controller Ethernet connection, PC Link

Build-in Water Tank(mm)

370*375*950

View Window Size(mm)

475*475

Water supply system

Water tank, booster pump, Automatic water supply, Water purification system

Power Supply

380V 50Hz

Maximum Noise

65 dBA

Environmental Conditional

5℃～+35 ℃ ≤85% RH

Standard

IEC 60529, ISO20653

Standards Compliant

Rain test chamber meet IEC 60529: 2013 Degrees of protection provided by enclosures (IP Code), test for second characterics numerial 3 and 4.

ISO20653 IPX4 Test Chamber Electronic Electrical Products

Details

ISO20653 IPX4 Test Chamber Electronic Electrical Products ISO20653 IPX4 Test Chamber Electronic Electrical Products
Oscillating Tube Turntable

■ Oscillating Angle

IPX3: spray ±60° from vertical line to each side,

IPX4: spray ±180° from vertical line to each side,

■ Oscillating Speed

IPX3: 2*120° for 4s

IPX4: 2*360° for 12s
