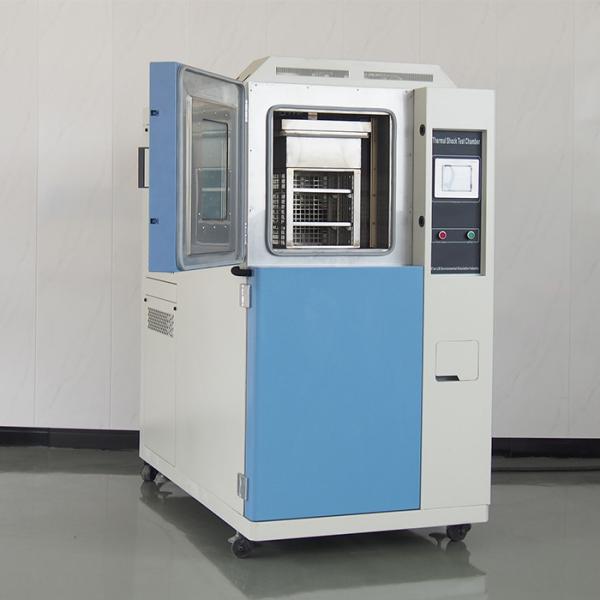

2 Zone Air To Air Thermal Cycling Chamber 220℃ -75℃
2 Zone Air To Air Thermal Cycling Chamber 220℃ -75℃
2 Zone Air To Air Thermal Cycling Chamber 220℃ -75℃
2 Zone Air To Air Thermal Cycling Chamber 220℃ -75℃
2 Zone Air To Air Thermal Cycling Chamber 220℃ -75℃
2 Zone Air To Air Thermal Cycling Chamber 220℃ -75℃
2 Zone Air To Air Thermal Cycling Chamber 220℃ -75℃
2 Zone Air To Air Thermal Cycling Chamber 220℃ -75℃
Specifications
Brand Name :
LIB
Model Number :
TS-340
Certification :
CE RoHS ISO17025
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
360 sets / quarter
Delivery Time :
10 days ( check if have stock)
Packaging Details :
Wooden cases standard export package
Name :
Air To Air Thermal Shock Chamber
Pre-high temp. :
+220℃
Volume :
160L, 210L, 500L, 1000L and more
Power supply :
380v, 50Hz
Cooling Mode :
Air-cool type
Temperature range :
-70C to 150C
Description

Description

2-Zone Thermal Shock Chambers from ATMARS consist of two separately controlled hot and cold zones (one atop the other) with product being transferred vertically by a pneumatic basket for rapid product temperature changes. The conditioned air is pre-cooled or pre-heated beyond the setpoint, allowing quicker recovery of the desired condition after transfer.


LIB INDUSTRY standard 2-zone thermal shock chamber models workspace volumes include: 22L, 72L, 211L, 505L, And interior dimensions can be customized

Temperature Range
Hot zone to +220℃
Cold zone to -75℃

Parameter

Name Air To Air Thermal Shock Chamber
Model TS-340
Inner dimensions of test room (mm) 450*450*360
Volume of test room (mm) 72L
Load of test room 30kg
Overall dimensions(mm) 1710*1020*1845

Pre-heat room

 Upper limit preheat temperature +220℃
Heating time Ambient temperature to ~ + 200℃, within in 30 minutes.

Pre-cool room

 Lower limit pre-cool temperature -75℃
Cooling time Ambient temperature to ~ -70℃, within in 30 minutes
Test room High temperature exposure range Ambient temperature +20 to +200°C
Low temperature exposure range –65 to -5°C
Recovery time Within 15 minutes
Temperature fluctuation ≤±0.5℃
Temperature deviation ≤±3 ℃
Controller Programmable color LCD touch screen controller
Cooling system Mechanical compression refrigeration system
Refrigerating unit French TECUMSEH compressor
Refrigerant R404A, R23
Air circulation Centrifugal wind fan
Exterior material Steel Plate with protective coating
Interior material SUS304 stainless steel
Power Supply 380V 50HZ
Environmental conditional 5℃～+40 ℃ ≤85% R

Advantage

2 Zone Air To Air Thermal Cycling Chamber 220℃ -75℃ 2 Zone Air To Air Thermal Cycling Chamber 220℃ -75℃

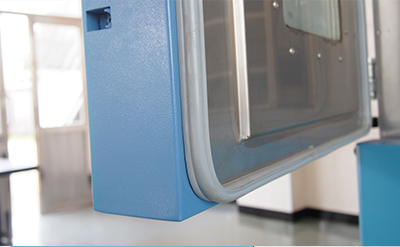

Internal and External Material
Material of the inner box is SUS304 stainless steel,of the outer chamber is stainless steel or see A3 stainless with paint coated.

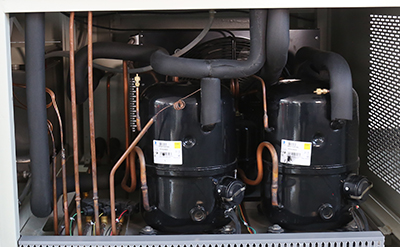

 Cooling System
Cold hot shock test chamber equip double-stage compressor,Environmentally friendly refrigerants

Optional Accessories

Thermal Shock Machine Optional Accessories
Custom colors
Water cooled condenser
Remote refrigeration system
Test hole size
Open the door direction

2 Zone Air To Air Thermal Cycling Chamber 220℃ -75℃
