60 ℃ Temperature Humidity Chamber 100% Condensation Humidity Test Equipment
60 ℃ Temperature Humidity Chamber 100% Condensation Humidity Test Equipment
60 ℃ Temperature Humidity Chamber 100% Condensation Humidity Test Equipment
60 ℃ Temperature Humidity Chamber 100% Condensation Humidity Test Equipment
60 ℃ Temperature Humidity Chamber 100% Condensation Humidity Test Equipment
60 ℃ Temperature Humidity Chamber 100% Condensation Humidity Test Equipment
60 ℃ Temperature Humidity Chamber 100% Condensation Humidity Test Equipment
60 ℃ Temperature Humidity Chamber 100% Condensation Humidity Test Equipment
Specifications
Brand Name :
LIB
Model Number :
ATH-100A
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
210Sets/quarter
Delivery Time :
5-14 Days
Packaging Details :
Wooden Cases Standard Export Package
Temperature Range :
10℃ ～ +60 ℃
Humidity Range :
95%RH ~ 100%
Sample shelf :
1pc sample shelf + 1pc round bar
Water trough :
Build-in water trough in testing room;
Controller :
Ethernet connection, USB port
Water supply system :
Automatic water supply
Description

Description

The Condensation Humidity test equipment has the advantages of simple structure, convenient operation and good test effect. Temperature and moisture in a machine, moisture may be invisible dew or a continuous flow of hot condensation water. Drying cycles can be set to remove osmotic pressure, or moisture erosion can be accelerated by increasing the condensation temperature.

◆Temperature
10 ~ +60℃

◆​Humidity
95%RH~100%

Technical Specification

Name60 ℃ 100% Condensation Humidity Test Equipment
ModelATH-100A
Internal Dimension (mm)400*500*500 D*W*H
Overall Dimension (mm)900*1050*1620 D*W*H
Temperature Range (℃)10℃ ～ +60 ℃
Humidity range95%RH ~ 100%
Cooling Rate1°C / min
Heating Rate3°C/ min
Testing room roofSlope shape designed, to avoid condensate drop on samples
Sample shelf1pc sample shelf + 1pc round bar
Water troughBuild-in water trough in testing room
Controller

Programmable color LCD touch screen controller
Ethernet connection, USB port

Temperature SensorPTR Platinum Resistance PT100Ω/MV A-class
Humidity sensorDry and wet bulb sensor
Air circulationCentrifugal wind fan
Water supply systemAutomatic water supply; Water purification system
Exterior materialSteel Plate with protective coating
Standard configurationDia50mm port on left side, with plug


Standard

condensation water test chamber
ISO 6270-1 test method can reveal the phenomenon of coating failure (including foaming, fouling, softening, wrinkling and embrittlement) and substrate failure.

Details

60 ℃ Temperature Humidity Chamber 100% Condensation Humidity Test Equipment60 ℃ Temperature Humidity Chamber 100% Condensation Humidity Test Equipment

Controller
◆PID programmable color touch screen controller.
Ethernet interface, USB port
◆LIB also can preset program into the controller based on user testing requirements.
◆The set system language is English for standard.

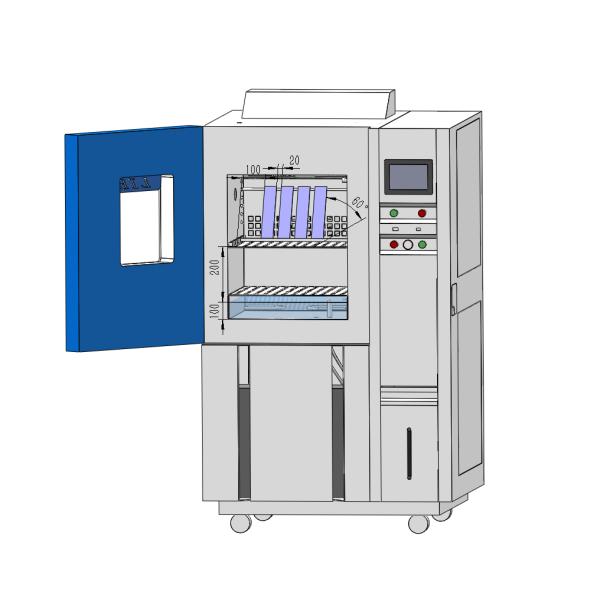

Sample Shelf
condensation environmental chamber
◆SUS304 stainless steel punching sample shelf
◆Place samples horizontal 60°angle;
◆Each shelf with max 50Kg load, if need more weight, tell us ahead.

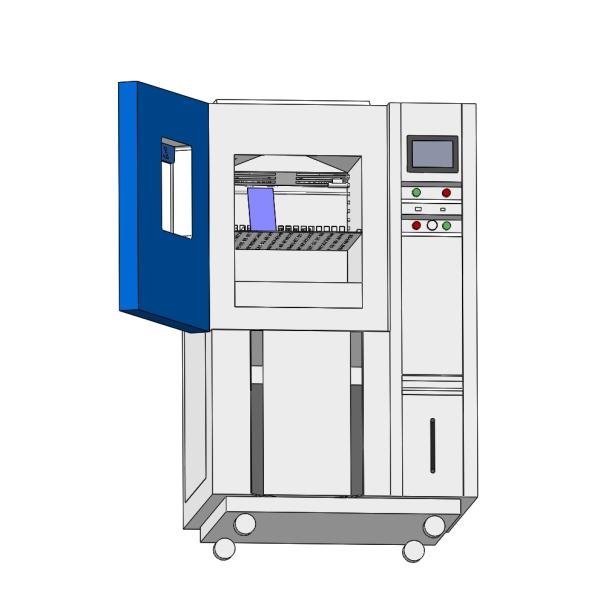

Climate condensation chamber structure

60 ℃ Temperature Humidity Chamber 100% Condensation Humidity Test Equipment60 ℃ Temperature Humidity Chamber 100% Condensation Humidity Test Equipment
