Steel Sand And Dust Test Chamber IP68 Environmental Test Device
Steel Sand And Dust Test Chamber IP68 Environmental Test Device
Steel Sand And Dust Test Chamber IP68 Environmental Test Device
Steel Sand And Dust Test Chamber IP68 Environmental Test Device
Steel Sand And Dust Test Chamber IP68 Environmental Test Device
Steel Sand And Dust Test Chamber IP68 Environmental Test Device
Steel Sand And Dust Test Chamber IP68 Environmental Test Device
Steel Sand And Dust Test Chamber IP68 Environmental Test Device
Specifications
Brand Name :
LIB
Model Number :
DI-800
Certification :
IEC60529,Rohs,CE
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability :
360 sets / quarter
Delivery Time :
3-14days
Packaging Details :
Wooden cases standard export package
Name :
IP Environmental IP68 Test Device
Temperature range :
Ambient to +50℃
Normal wire diameter :
50um
Normal width of a gap between wire :
75um
Standard :
IEC60529,ISO20653
Controller :
programmable color display touch screen controller
Description

Description

IP68 Test Device,IP68 test standard hardware equipment should be dust-free, and the amount of water immersed in the shell after continuous diving will not reach a harmful level. IP68 tester mainly to test the protection of the enclosure, lamps,etc.

Parameter

Steel Sand And Dust Test Chamber IP68 Environmental Test Device

IP6X test device:IP6X means completely prevent the intrusion of foreign objects and dust;

Model DI-800
Internal Dimension (mm) 800*1000*1000
Overall Dimension (mm) 1040*1450*1960
Interior Volume (L) 800
Temperature Range Ambient ~ +50℃
Humidity Range < 30% RH
Normal Wire Diameter 50um
Nominal Width of a Gap Between wires 75um
Specimen Power Outlet Dust-proof socket 16A
Vacuum System Equipped with a pressure gauge, air filter, pressure regulator, connecting tube
Standard Configuration Sample shelf, dust wiper, talcum powder(5kgs)

Steel Sand And Dust Test Chamber IP68 Environmental Test Device

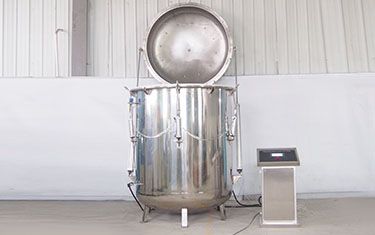

IPX8 test device:IPX8 means that the electrical appliance sinks under the specified water pressure indefinitely, which ensures that it will not cause damage due to immersion in water.

Model R78-1000
Useful volume Diameter 1000mm, Height 1500mm.
Material Material is steel plate, wall thickness 2cm
Water depth Water depth pressure range 1~100m, adjustable
Water supply Automatic water supply
Controller Programmable color touch screen type controller, display temperature, specimen surface temperature, water depth, run time.
Open/close Open/close lid by pneumatic lift, with safety lock.
Standard Comply with IEC60529 IPX7 IPX8 water tests

Precautions

1. The test piece must not have any gaps

2. The measuring piece itself cannot be waterproofed

3. The seal of the test piece must be complete and strong:

4. The key and hinge of the piece are well sealed:

5. The joint of the test piece is well sealed.

Name IPX7 immersion test equipment
Model R78-1000
Useful volume Diameter 1000mm, Height 1500mm.
Material Material is steel plate, wall thickness 2cm
Water depth Water depth pressure range 1~100m, adjustable
Water supply Automatic water supply
Controller Programmable color touch screen type controller
Open/close Open/close lid by pneumatic lift, with safety lock.
Standard Comply with IEC60529 IPX7 IPX8 water tests

Steel Sand And Dust Test Chamber IP68 Environmental Test Device Steel Sand And Dust Test Chamber IP68 Environmental Test Device
Steel Sand And Dust Test Chamber IP68 Environmental Test Device Steel Sand And Dust Test Chamber IP68 Environmental Test Device
