800L 1000L IPX5 Test Equipment SUS304 Stainless Steel
800L 1000L IPX5 Test Equipment SUS304 Stainless Steel
800L 1000L IPX5 Test Equipment SUS304 Stainless Steel
800L 1000L IPX5 Test Equipment SUS304 Stainless Steel
800L 1000L IPX5 Test Equipment SUS304 Stainless Steel
800L 1000L IPX5 Test Equipment SUS304 Stainless Steel
800L 1000L IPX5 Test Equipment SUS304 Stainless Steel
800L 1000L IPX5 Test Equipment SUS304 Stainless Steel
Specifications
Brand Name :
LIB
Model Number :
R56
Certification :
IEC60529,Rohs,CE
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability :
360 sets / quarter
Delivery Time :
3-14days
Packaging Details :
Wooden cases standard export package
IP65 Test :
IIPX5 Water Test
Application :
Electronic, street lamp
Standard :
IEC60529,ISO20653
Model :
800L,1000L,Customization
After Sale :
3 years warranty
Interior Material :
SUS304 stainless steel
Description

Description

The IPX5 and IPX6 tests are made by spraying the enclosure from all practicable directions with a stream of water from standard test nozzles, the test nozzles (hose nozzles) with Φ6.3mm and Φ12.5mm diameter.

IPX5 and IPX6 water ingress protection testing equipment is consisted by test tunnel and test chamber.

Test nozzles are placed at the test tunnel with a distance of 2.5m from the center of the turntable, the turntable is inside the test chamber, the test nozzles can swing up and down to spray the enclosure from all practicable directions automatically.



Technical Specification

Model

IPX5 Test Equipment
Standard IEC60529(IPX5 Test,IPX6 Test)
Workroom dimension (mm) 800*800*800 D*W*H
External dimension (mm)
950*3150*1800D*W*H
Diameter of Turntable (mm)
600
Internal Diameter of IPX5 Nozzle 6.3mm
Internal Diameter of IPX6 Nozzle 12.5mm
Water Flow Rate IPX5/ IPX6 12.5L/min ±5% / 100L/min ±5%
Water Supply System Water tank, booster pump, Automatic water supply, Water purification system
Standard IEC 60529, ISO20653

Details

800L 1000L IPX5 Test Equipment SUS304 Stainless Steel 800L 1000L IPX5 Test Equipment SUS304 Stainless Steel

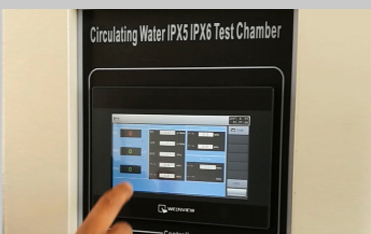

IPX5 water test equipment is controlled by PLC and touch screen IPX5 Water Test Equipment is made of stainless steel and can be customized

800L 1000L IPX5 Test Equipment SUS304 Stainless Steel

Test Requirement

IPx5 ipx6 test equipmen rate is 12.5L/min±5% for IPX5 test and 100L/min±5% for IPX6 test,
