SUS304 Stainless Steel Waterproof Test Chamber IPX4 Water Circulation
SUS304 Stainless Steel Waterproof Test Chamber IPX4 Water Circulation
SUS304 Stainless Steel Waterproof Test Chamber IPX4 Water Circulation
SUS304 Stainless Steel Waterproof Test Chamber IPX4 Water Circulation
SUS304 Stainless Steel Waterproof Test Chamber IPX4 Water Circulation
SUS304 Stainless Steel Waterproof Test Chamber IPX4 Water Circulation
SUS304 Stainless Steel Waterproof Test Chamber IPX4 Water Circulation
SUS304 Stainless Steel Waterproof Test Chamber IPX4 Water Circulation
Specifications
Brand Name :
LIB
Model Number :
R-1200
Certification :
CE,ROHS,
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
140 Sets/ Quarter
Delivery Time :
3-10 days
Packaging Details :
Wooden cases standard export package
Type :
Water Circulation IPX4 Waterproof Test Chamber
Standard :
IEC 60529, ISO20653
Water System :
Water Circulation System
Interior Material :
SUS304 stainless steel
Application :
Lamps, Electric cabinets;
Controller :
Programmable controller
Description

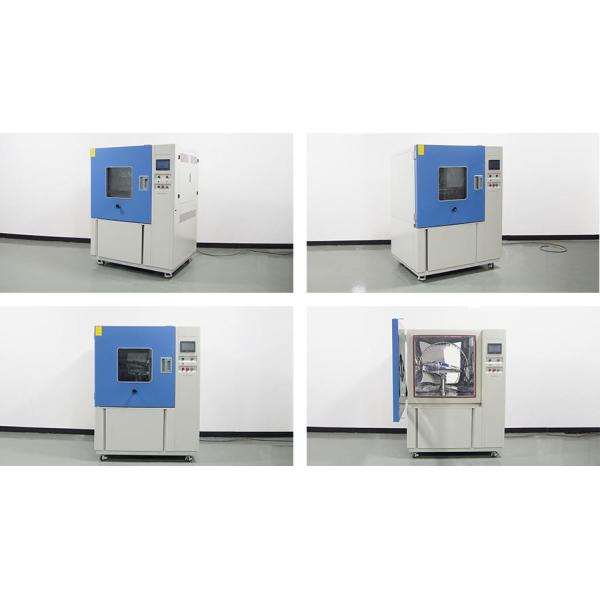

IPX4 Waterproof Test Chamber is mainly based on IEC60259 standard design test equipment, mainly used for shell protection test, sealing test, waterproof test, in order to provide product design, improvement, verification and factory inspection use.

Specification

Name IPX4 Waterproof Test Chamber
Model R-800C R-1200C
Internal Dimensions (mm) 900*900*900 1400*1400*1400
Overall Dimensions (mm) 1120*1460*1660 1600*1950*2100
Swing Angle of Oscillating Tube 0 ~ ±180° (Adjustable)(IPX3 IPX4)
Turntable Rotation Speed 1r/min (Adjustable)
Oscillating Tube Radius 400mm (IPX3 IPX4)
Controller Programmable color LCD touch screen controller
Ethernet connection, PC Link, USB
Water supply system Water tank, booster pump, Automatic water supply, Water purification system
Exterior Material Steel Plate with protective coating
Interior Material SUS304 stainless steel
Standard IEC 60529, ISO20653

Advantage

IP X 3, IP X 4 swing tube using stepper motor drive, accurate angle, swing rate can be set and adjusted, each group of nozzles are radiated in the center of the turntable, after the test automatically with compressed air to clean the water stains.

Details

SUS304 Stainless Steel Waterproof Test Chamber IPX4 Water Circulation

Details

SUS304 Stainless Steel Waterproof Test Chamber IPX4 Water Circulation SUS304 Stainless Steel Waterproof Test Chamber IPX4 Water Circulation

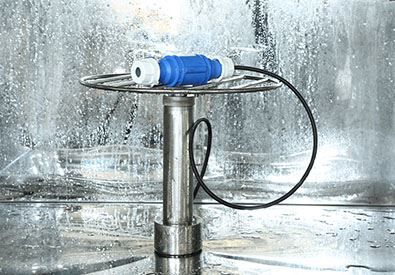

Oscillating Tube Turntable

Feature

1. Suitable for IPX3, IPX4 waterproof level test of products.

2. Waterproof Test Chamber,the model structure: the use of double column structure, easy to install, swing pipe rotation smooth.

3. The IPX4 test equipment shell and turntable are all made of SUS304# stainless steel plate, and it does not rust for a long time.

4. The chassis is equipped with a water storage tank, and the water tank is equipped with a water level float valve to automatically control the water inlet, and there is a high and low water level alarm detection, which effectively prevents the pump from being damaged by lack of water and drying.
