Specifications
Brand Name :
LIB
Model Number :
TH-225
Certification :
CE,RoHS
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, paypal,MoneyGram,
Supply Ability :
180 sets / quarter
Delivery Time :
3-14 days
Packaging Details :
Wooden Box standard export package
Name :
-60℃ Low Temperature Damp Heat Chamber
Low Type :
-20℃/-40℃/-60℃/-70℃/-86℃
Controller :
PLC,PC Link, R-232 interface,USB,APP
Humidity Range :
10% - 98% RH
Temperature range :
-20℃ ~+150 ℃
Exterior material :
A3 Steel Plate
Description

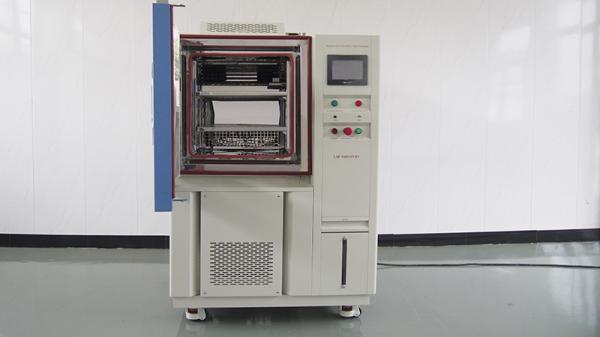

-60℃ Low Temperature Damp Heat Chamber

Description


-60℃ Low Temperature Damp Heat Chamber simulates the temperature and humidity changes in natural weather, and can also realize extreme high temperature and low-temperature scenarios, and conduct high temperature, low temperature, wet and dry weather resistance tests on the test items.

Main Technical Parameter


Name

-60℃ Low Temperature Damp Heat Chamber

Model

TH-225

Internal Dimension (mm)

500*600*750

Overall Dimension (mm)

960*1150*1860

Temperature Range (℃)

A: -20℃ ~+150 ℃ B:-40℃ ~+150 ℃ C:-70℃ ~+150 ℃

Humidity Range (R.H)

20% ~ 98% RH

Temperature fluctuations

± 0.5 ℃

Temperature deviation

± 2.0 ℃

Humidity Deviation

± 2.5% RH

Heating Rate

3 ℃ / min

Cooling Rate

1 ℃ / min

Interior Volume

500 liters

Controller

Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB

Cooling System

Mechanical compression refrigeration system

Interior Material

SUS304 stainless steel

Maximum Noise

65 dBA

Power Supply

380V

Deatil

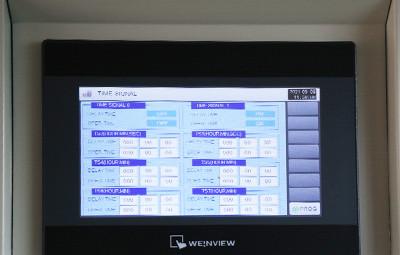

Programmable Controller

Water Circulation System

The working temperature and humidity of the -60℃ Low Temperature Damp Heat Chamber are: ambient temperature: 5℃~+30℃ (average temperature within 24 hours ≤30℃), ambient humidity: ≤85%RH.

Application


After the test items undergo temperature changes and changes in air humidity in nature, some aging phenomena will occur, which may affect the performance of the items.

The constant Heat Chamber is used to simulate this environment to accelerate the results of the items.
