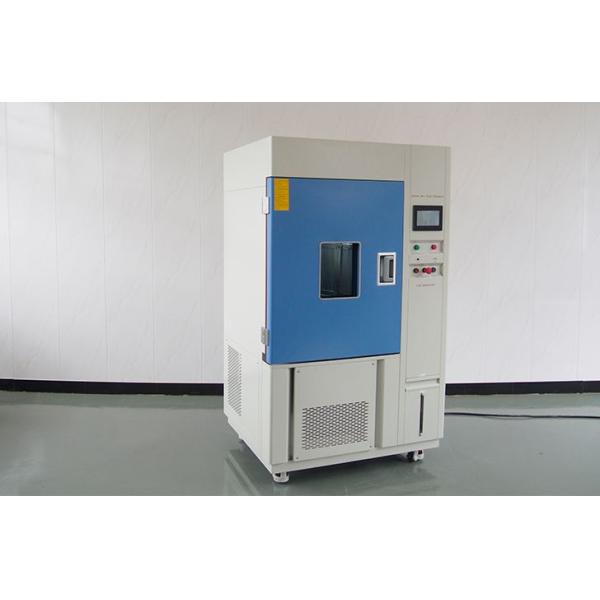

ISO17025 280nm Climate Xenon Test Chamber
ISO17025 280nm Climate Xenon Test Chamber
ISO17025 280nm Climate Xenon Test Chamber
ISO17025 280nm Climate Xenon Test Chamber
ISO17025 280nm Climate Xenon Test Chamber
ISO17025 280nm Climate Xenon Test Chamber
Specifications
Brand Name :
LIB
Model Number :
XL-500
Certification :
CE,RoHS,ISO17025
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram，paypal
Supply Ability :
140 sets / quarter
Delivery Time :
18 days ( check if have stock)
Packaging Details :
Wooden cases standard export package
Name :
Xenon Climate Testing Machine
Temperature Range :
Ambient ~100℃±2°C
BPT Temperature :
BPT +35 to +120 ℃
Bandwidth Measurement :
280nm~800nm
Certificate :
CE,RoHS,ISO17025
Specimen Capacity :
42pcs* 95*200mm
Description

Description of Xenon Climate Testing Machine

ISO17025 280nm xenon climate testing machine can emulate the effect of sunshine,while water spray system can emulate the effects of rain and dew. During the test, radiation energy and temperature are controllable. A typical test cycle generally carries out under strong irradiation of Xenon light and periodic precipitation. These tests generally appliedin the fields of paint and coatings,automotive industry, plastic, wood, glue,etc

Parameters of Xenon Climate Testing Machine

Name

 ISO17025 280nm Xenon Climate Testing Machine

Model

XL-500

Internal dimensions D*W*H

500*600*700 mm

Overall dimensions D*W*H

1200*1150*1700 mm

Irradiation Source

1 piece of 1500 W air cooled xenon lamp with inner quartz and outer borosilicate filter

Irradiance Range

100~1200 W/㎡

Bandwidth Measurement

280nm~800nm

Chamber Temperature Range

Ambient ~100℃±2°C

Black Panel Temperature

BPT 35 ~85℃±2°C

Relative Humidity Range

50~98% R.H±5% RH

Water Spray cycle

1～9999H59M, adjustable

Controller

programmable color display touch screen controller, PC Link, R-232 interface

Radiometer

Tolerance: ±5%

Heating system

Nichrome heater

Cooling system

Mechanical compression refrigeration system

Refrigerating unit

French TECUMSEH compressor

Humidification system

External isolation, stainless steel surface evaporation humidifier

Air circulation

Centrifugal wind fan

Water supply system

Automatic water supply; Water purification system

Interior material

SUS304 stainless steel

Exterior material

Steel Plate with protective coating

Thermal insulation

Polyurethane foam

Observation window

Interior lighting , double-layer thermo stability silicone rubber sealing

Power Supply

AC380V 50HZ

Details of Xenon Climate Testing Machine

ISO17025 280nm Climate Xenon Test Chamber

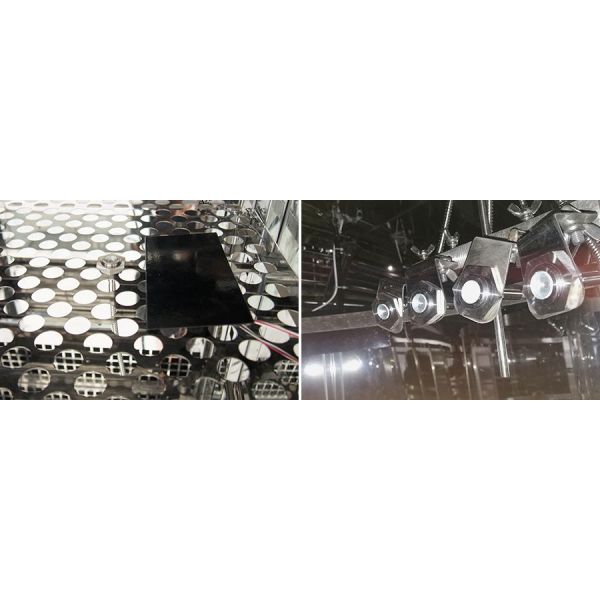

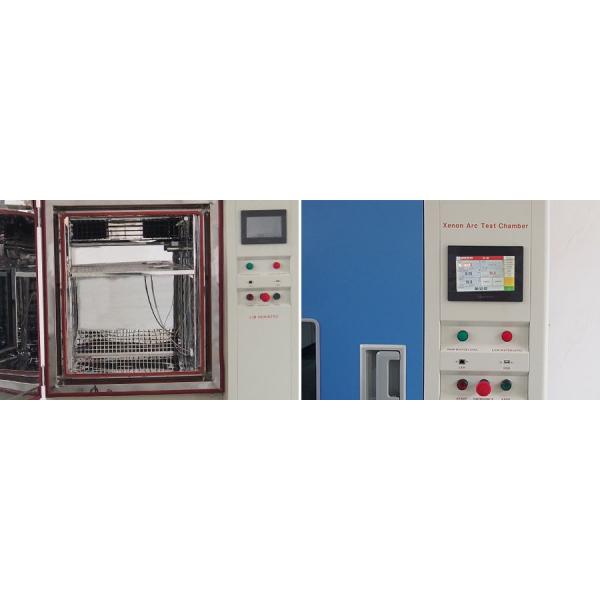

Workroom

Programmable controller
ISO17025 280nm Climate Xenon Test Chamber

Black Panel Thermometer

 Radiometer

Performance of Xenon Climate Testing Machine

1.Full-spectrum xenon arc lamp

2.Temperature and humidity monitoring and control

3.Environmental xenon arc test device equip quartz filter

4.ASTMG155 accelerated xenon equipment equip with the multi-direction nozzle for rain test

Applications of Xenon Climate Testing Machine

280nm xenon solar test machine is used in different industries such as plastic, paint, dyeing, automobile, motorcycle, petrochemical, textile, leather products etc.

ISO17025 280nm Climate Xenon Test Chamber
