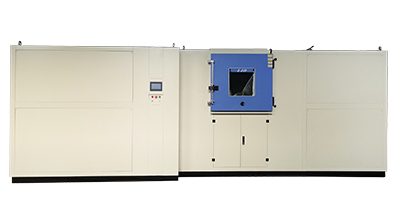

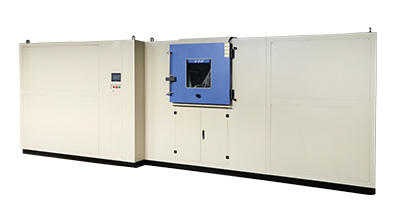

Blowing Dynamic Sand And Dust Test Chamber 150μm MIL-STD-810
Blowing Dynamic Sand And Dust Test Chamber 150μm MIL-STD-810
Blowing Dynamic Sand And Dust Test Chamber 150μm MIL-STD-810
Blowing Dynamic Sand And Dust Test Chamber 150μm MIL-STD-810
Blowing Dynamic Sand And Dust Test Chamber 150μm MIL-STD-810
Blowing Dynamic Sand And Dust Test Chamber 150μm MIL-STD-810
Blowing Dynamic Sand And Dust Test Chamber 150μm MIL-STD-810
Blowing Dynamic Sand And Dust Test Chamber 150μm MIL-STD-810
Blowing Dynamic Sand And Dust Test Chamber 150μm MIL-STD-810
Blowing Dynamic Sand And Dust Test Chamber 150μm MIL-STD-810
Specifications
Brand Name :
LIB
Model Number :
DIM-1000
Certification :
Rohs,CE
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability :
120 sets / quarter
Delivery Time :
3-14days
Packaging Details :
Wooden cases standard export package
Air velocity :
18.0 -29.0m/s
Concentration of dust :
10.7±7g/ m³
Dust particles :
＜ 150μm
Concentration of sand :
0.18+0.2g/m³; 1.1+0.3g/m³; 2.2+0.5g/m³
Sand particles :
149μm - 600μm, 600μm - 850μm
Description

Dynamic Dust Chamber can meet more severe experimental conditions, test the sealing of products, and have higher requirements on the performance and shell protection capabilities of production products, and are more used in testing military products and aerospace components

Technical Specification

Name MIL-STD-810H METHOD 510 Dust And Sand Test Equipment
Model DIM-1000
Internal Dimension 1000*1000*1000mm D*W*H
Overall Dimension 2800*3500*2000mm D*W*H
Interior Volume 1000L
Air velocity 1.5 -8.9m/s
Concentration of dust 10.7±7g/ m³
Dust particles ＜ 150μm
Air velocity 18.0 -29.0m/s
Concentration of sand 0.18+0.2g/m³; 1.1+0.3g/m³; 2.2+0.5g/m³
Sand particles 149μm - 600μm, 600μm - 850μm
Controller Programmable color LCD touch screen controller
Door Lock Electromagnetic lock
Testing Platform Diameter 600mm
Testing Platform Speed 1-7 r.p.m
Exterior Material A3 Steel Plate with protective coating
Interior Material SUS304 stainless steel
Standard MIL-STD- 810g

Design Detail

Blowing Dynamic Sand And Dust Test Chamber 150μm MIL-STD-810 Blowing Dynamic Sand And Dust Test Chamber 150μm MIL-STD-810

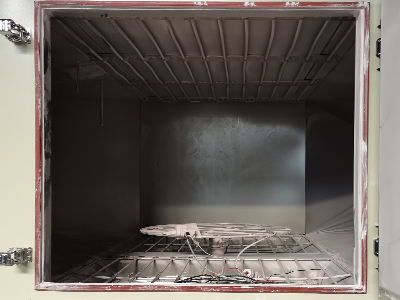

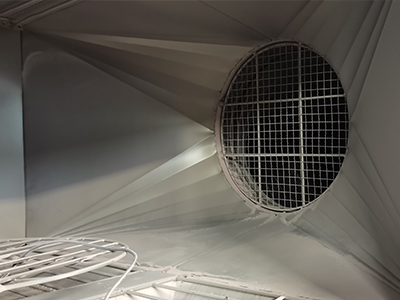

Workroom Large Centrifugal Fan

Blowing Dynamic Sand And Dust Test Chamber 150μm MIL-STD-810 Blowing Dynamic Sand And Dust Test Chamber 150μm MIL-STD-810

Standard Configuration

Configuration of Dynamic sand chamber

●Temperature range: 23℃～70℃

●Temperature deviation: ≤±2℃

●Humidity range: <30%RH

●Dust blowing wind speed: 1.5～8.9 m/s

●Sand blowing wind speed: 18.0～29.0 m/s

●Dust concentration: 3.0～17.6 g/m³ (10.7 ± 7 g/m³)

●Test dust: quartz dust

●Dust size: ≤ 149 μm to pass through a sieve with a diameter of 150 μm

Environmental Conditions

Dust blowing test chamber

●The MIL-STD-810 standard covers a wide range of environmental conditions, mainly including: high altitude and low pressure, high and low temperature including temperature shock (including both storage state and working state tests), rain (including wind blowing test and freezing rain test), humidity, etc.
