MIL STD 810 Blowing Sand And Dust Test Chamber 1000L
MIL STD 810 Blowing Sand And Dust Test Chamber 1000L
MIL STD 810 Blowing Sand And Dust Test Chamber 1000L
MIL STD 810 Blowing Sand And Dust Test Chamber 1000L
MIL STD 810 Blowing Sand And Dust Test Chamber 1000L
MIL STD 810 Blowing Sand And Dust Test Chamber 1000L
MIL STD 810 Blowing Sand And Dust Test Chamber 1000L
MIL STD 810 Blowing Sand And Dust Test Chamber 1000L
Specifications
Brand Name :
LIB
Model Number :
DIM-1000
Certification :
Rohs,CE
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability :
120 sets / quarter
Delivery Time :
3-14days
Packaging Details :
Wooden cases standard export package
Air velocity :
18.0 -29.0m/s
Concentration of dust :
10.7±7g/ m³
Dust particles :
＜ 150μm
Concentration of sand :
0.18+0.2g/m³; 1.1+0.3g/m³; 2.2+0.5g/m³
Sand particles :
149μm - 600μm, 600μm - 850μm
Description

Description

Blowing sand dust test chamber,MIL-STD-810G standard sand dust test chamber is suitable for testing the sealing performance of the shell of the product, mainly used for the shell protection grade test. It is mainly to simulate the damage caused by sandstorm weather on locks, auto parts, seals, electric instruments and other products.

Technical Specification

Name MIL STD 810 Blowing Sand Dust Test Chamber
Model DIM-1000
Internal Dimension 1000*1000*1000mm D*W*H
Overall Dimension 2800*3500*2000mm D*W*H
Interior Volume 1000L
Air velocity 1.5 -8.9m/s
Concentration of dust 10.7±7g/ m³
Dust particles ＜ 150μm
Air velocity 18.0 -29.0m/s
Concentration of sand 0.18+0.2g/m³; 1.1+0.3g/m³; 2.2+0.5g/m³
Sand particles 149μm - 600μm, 600μm - 850μm
Controller Programmable color LCD touch screen controller
Door Lock Electromagnetic lock
Testing Platform Diameter 600mm
Testing Platform Speed 1-7 r.p.m
Exterior Material A3 Steel Plate with protective coating
Interior Material SUS304 stainless steel
Standard MIL-STD- 810g

MIL STD 810 Blowing Sand And Dust Test Chamber 1000L MIL STD 810 Blowing Sand And Dust Test Chamber 1000L

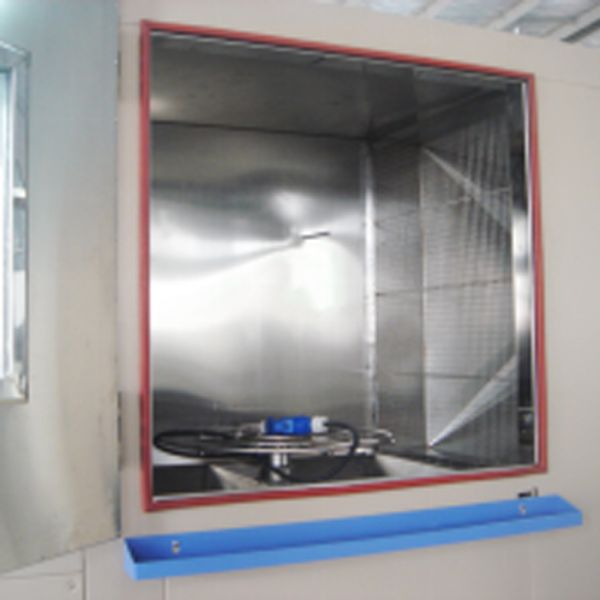

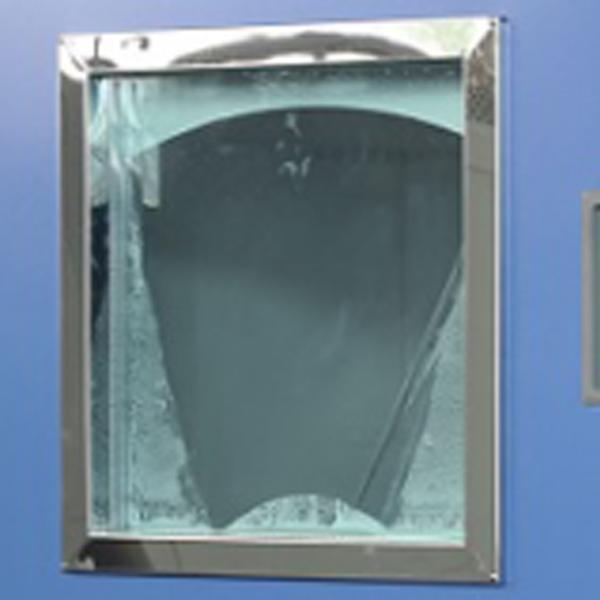

Workroom Viewing Window
MIL STD 810 Blowing Sand And Dust Test Chamber 1000L MIL STD 810 Blowing Sand And Dust Test Chamber 1000L

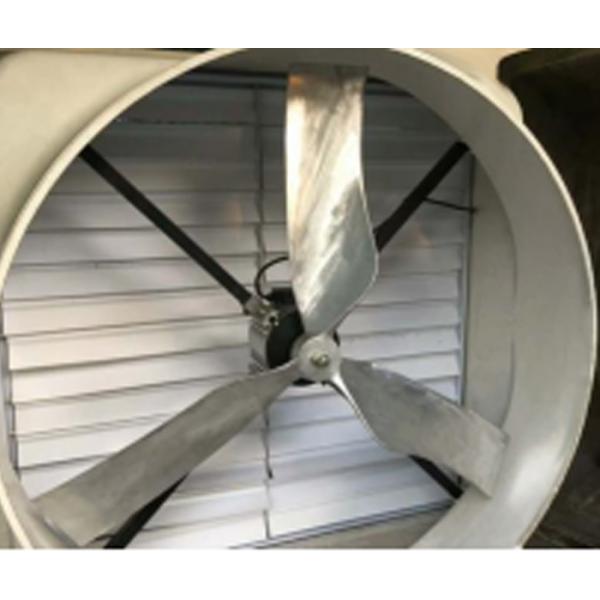

Large Centrifugal Fan Wind Speed Sensor

MIL-STD-810G Standard Sand Dust Test

MIL-STD-810G dust chamber test range

Air Velocity: 1.5m/s ~ 8.9m/s,

Temperature range: 20℃ to 80℃,

Humidity range: 10% ~ 30%RH,

Dust particles (blowing) : 3.0-17.6g/m3

Test Conditions

MIL-STD-810G sand test chamber,Test Conditions that Must be Confirmed

Test standard

Name and size of test sample

Test surface and area

Sample testing direction

Test Angle

Test time

Sand dust particle size

Sand blowing concentration

Test wind speed

Test temperature

Relative humidity
