IEC 62660 85C Environment Test Chamber Battery High Temperature
IEC 62660 85C Environment Test Chamber Battery High Temperature
IEC 62660 85C Environment Test Chamber Battery High Temperature
IEC 62660 85C Environment Test Chamber Battery High Temperature
IEC 62660 85C Environment Test Chamber Battery High Temperature
IEC 62660 85C Environment Test Chamber Battery High Temperature
IEC 62660 85C Environment Test Chamber Battery High Temperature
IEC 62660 85C Environment Test Chamber Battery High Temperature
Specifications
Brand Name :
LIB
Model Number :
T-100
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
210Sets/quarter
Delivery Time :
5-14 Days
Packaging Details :
Wooden Cases Standard Export Package
Power Supply :
220V 50Hz / 380V 50Hz
Temperature Range :
-20℃ ～+150 ℃
Temperature Fluctuation :
± 0.5 ℃
Heating rate :
3 ℃ / min
Name :
Environment Test Chamber
specimen :
Battery
Description

Description

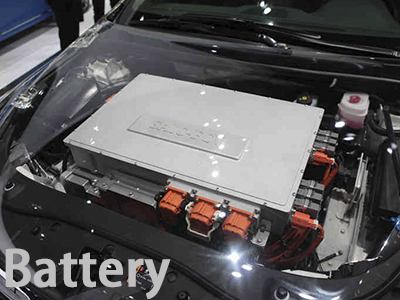

IEC 62660 85℃ Battery High Temperature Environment Test Chamber,The battery industry is vast and consists of batteries and storage batteries for several different uses. Consumer use, automotive batteries, and industrial use are the most common. Entering the digital age, it's more important than ever for electronic batteries to be properly tested, since they make up a majority of consumer used batteries.

Performance

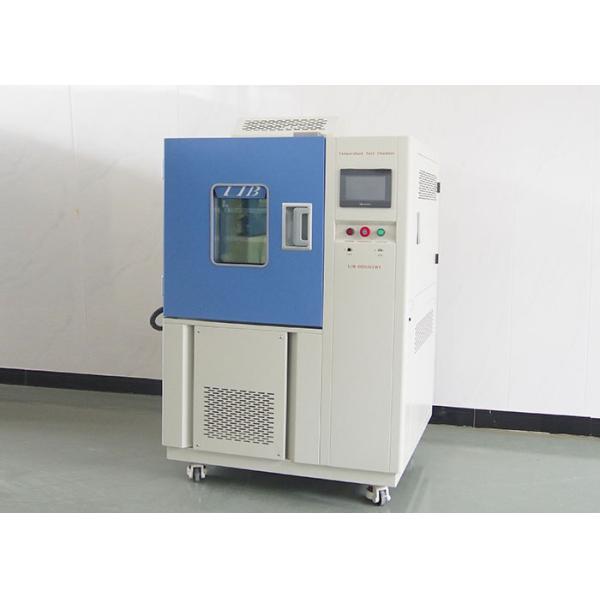

IEC 62660 85℃ Battery High Temperature Environment Test Chamber

Temperatures Range from -68°C to 180°C

Technical Specification

Name IEC 62660 85℃ Battery High Temperature Environment Test Chamber
Model T-100
Internal Dimension (mm) 400*500*500
Overall Dimension (mm) 860*1050*1620
Temperature Range (℃) -20℃ ～+150 ℃
Low type A: -40℃ B:-70℃ C -86℃
Heating rate 10℃/min (15℃/min)
Temperature Fluctuations ± 0.5 ℃
Temperature Deviation ± 2.0 ℃
Interior Volume 100 liters
Controller Programmable color LCD touch screen controller, Multi-language interface, Ethernet , USB
Cooling System Mechanical compression refrigeration system
Exterior Material Steel Plate with protective coating
Interior Material SUS304 stainless steel
Power Supply 380V
Maximum Noise 65 dBA

Thermal Test

IEC 62660 85C Environment Test Chamber Battery High Temperature

IEC 62660 85℃ Battery High Temperature Environment Test Chamber are used in research and development, quality assurance, and battery production alike.

Environmental simulation chamber is suitable for testing battery reliability under extreme temperature changes.

It is suitable for temperature cycling tests as per IEC, UL, and SAE standards. o IEC 62133 – Temp. cycling

■ UL 2054 – Temp. cycling

■​ UL 1642 – Temp. cycling

■​ Halt/Hass Safety/ Abuse Test

■​ Thermal Abuse

■​ Thermal stability

■​ Elevated Temperature Storage

■​ Rapid Charge/Discharge

■​ Thermal Shock Cycling

LIB has experience with testing with the following industries and products

◆Automotive

◆Aeronautical / Aerospace / Defense

◆Medical Devices

◆Photovaltaics

◆Electronics

◆Robotics

◆Contract Manufacturing

and more!

IEC 62660 85C Environment Test Chamber Battery High Temperature

■ The LIB IEC 62660 85℃ Battery High Temperature Environment Test Chamber meet IEC 62660-2 standard for test battery

Contact us for spare parts!
