Specifications
Brand Name :
LIB
Model Number :
PV-04
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
210 Sets/quarter
Delivery Time :
5-14 Days
Packaging Details :
Wooden Cases Standard Export Package
Application :
PV Panel
Panel Capacity :
4 / 6 / 8 / 10 / 12 Pieces
Standard :
IEC61215, IEC61646, IEC61108, IEC62688, UL1703, IEC61345
Temperature range :
-70 degree ~ +100(150) degree
Temperature Range :
-60℃ ～ +100 ℃
Temperature Change Rate :
1 ~ 3.4℃ / Min
Description

Description

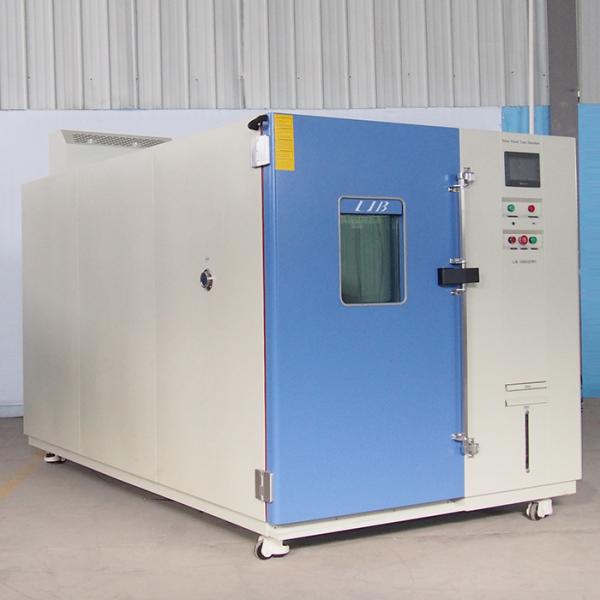

IEC62108 85℃ PV High Humidity Temperature Chamber with uncompromised features at competitive prices. Ideal for choosing your best suit for variable sizes of Solar Panels and PV Modules from the available range of standard and Custom-Built Chambers. High performance & inherent reliability guaranteed for continuous testing of your products

Technical Specification

Name IEC62108 85℃ PV High Humidity Temperature Chamber
Model PV-04

Internal Dimension (mm)

 1300*700*1350

Overall Dimension (mm)

 1900*1100*1750

Interior Volume

1220L

Temperature Range

-60℃ ～ +100 ℃

Temperature Fluctuation

± 0.5 ℃

Temperature Deviation

± 2.0 ℃

Humidity Range

20% ~ 98% RH

Humidity Deviation

± 2.5% RH

Temperature Change Rate

1 ~ 3.4℃ / Min

Panel Size

1M*2M

Panel Capacity

4 / 6 / 8 / 10 / 12 Pieces

Cooling system

Mechanical compression refrigeration system

Refrigerating unit

French TECUMSEH compressor

Refrigerant

R404A, R23

Heating Element

Nichrome heater

Controller

Programmable color LCD touch screen controller,Ethernet connection,

PC Link, USB

Exterior Material

Steel Plate with protective coating

Interior Material

SUS304 Stainless steel

Thermal Insulation

Polyurethane foam and insulation cotton

Maximum Noise

65 dBA

Environmental Conditional

5℃～+35 ℃ ≤85% RH

Standard

IEC61215, IEC61646, IEC61108, IEC62688, UL1703, IEC61345

1220L PV High Humidity And Temperature Controlled Chamber IEC62108

Environmental Test Chambers for Solar Panels

Test Purpose

IEC62108 85℃ PV High Humidity Temperature Chamber

To identify the ability of components to withstand long-term moisture penetration

Test Procedure

IEC62108 85℃ PV High Humidity Temperature Chamber

A) pretreatment

Will be at room temperature without pretreatment of components in the air.

B) Strict conditions

Test temperature: 85 ℃ + 2 ℃

Relative humidity: 85% ± 5%

Test time: 1000 h

PV Test Cycle

Thermal Cycle Test

Damp Heat Test

Humidity Freeze Test
