Programmable 210L Thermal Shock Chamber Environmental
Programmable 210L Thermal Shock Chamber Environmental
Programmable 210L Thermal Shock Chamber Environmental
Programmable 210L Thermal Shock Chamber Environmental
Programmable 210L Thermal Shock Chamber Environmental
Programmable 210L Thermal Shock Chamber Environmental
Programmable 210L Thermal Shock Chamber Environmental
Programmable 210L Thermal Shock Chamber Environmental
Specifications
Brand Name :
LIB
Model Number :
TS-340
Certification :
CE RoHS ISO17025
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
360 sets / quarter
Delivery Time :
10 days ( check if have stock)
Packaging Details :
Wooden cases standard export package
Name :
Thermal Shock Environmental Chamber
Pre-high temp. :
+220℃
Volume :
160L, 210L, 500L, 1000L and more
Power supply :
380v, 50Hz
Cooling Mode :
Air-cool type
Temperature range :
-70C to 150C
Description

Description

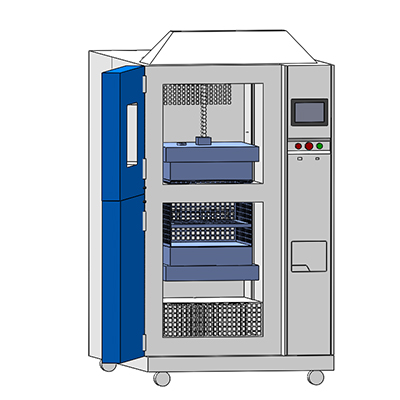

The Programmable 210L Thermal Shock Environmental Chamber is an environmental test equipment used to test material structures or composite materials.

The thermal shock test chamber is widely used in the environmental test of plastic, rubber, metal, electronic devices and other materials or products (or semi-finished products), and can greatly change the ambient temperature of the test sample in the shortest time.

Parameter

Name Programmable 210L Thermal Shock Environmental Chamber
Model TS-340
Inner dimensions of test room (mm) 450*450*360
Volume of test room (mm) 72L
Load of test room 30kg
Overall dimensions(mm) 1710*1020*1845

Pre-heat room

 Upper limit preheat temperature +220℃
Heating time Ambient temperature to ~ + 200℃, within in 30 minutes.

Pre-cool room

 Lower limit pre-cool temperature -75℃
Cooling time Ambient temperature to ~ -70℃, within in 30 minutes
Test room High temperature exposure range Ambient temperature +20 to +200°C
Low temperature exposure range –65 to -5°C
Recovery time Within 15 minutes
Temperature fluctuation ≤±0.5℃
Temperature deviation ≤±3 ℃
Controller Programmable color LCD touch screen controller
Cooling system Mechanical compression refrigeration system
Refrigerating unit French TECUMSEH compressor
Refrigerant R404A, R23
Air circulation Centrifugal wind fan
Exterior material Steel Plate with protective coating
Interior material SUS304 stainless steel
Power Supply 380V 50HZ
Environmental conditional 5℃～+40 ℃ ≤85% R

Advantage

Programmable 210L Thermal Shock Chamber Environmental Programmable 210L Thermal Shock Chamber Environmental

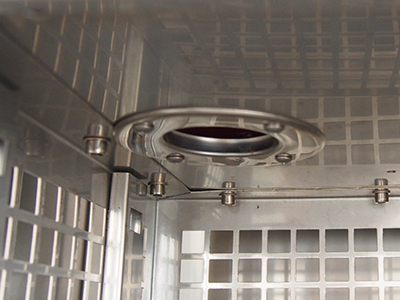

Test Area Cable Hole

There are 2 Types of Thermal Shock Test Chamber

●2 zone thermal shock chamber

Divided into hot and cold areas, the change of high temperature and low temperature is mainly through the basket to move the sample between the hot and cold areas.

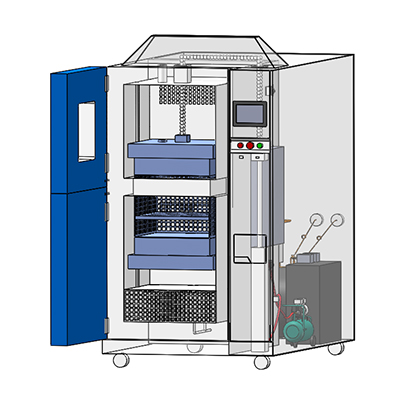

●3 zone thermal shock chamber

The sample is statically prevented, the studio will be pre-cooled and pre-heated

Programmable 210L Thermal Shock Chamber Environmental Programmable 210L Thermal Shock Chamber Environmental
