High Low Temperature Thermal Shock Tester Air Cool Type
High Low Temperature Thermal Shock Tester Air Cool Type
High Low Temperature Thermal Shock Tester Air Cool Type
High Low Temperature Thermal Shock Tester Air Cool Type
High Low Temperature Thermal Shock Tester Air Cool Type
High Low Temperature Thermal Shock Tester Air Cool Type
High Low Temperature Thermal Shock Tester Air Cool Type
High Low Temperature Thermal Shock Tester Air Cool Type
High Low Temperature Thermal Shock Tester Air Cool Type
High Low Temperature Thermal Shock Tester Air Cool Type
Specifications
Brand Name :
LIB
Model Number :
TS-340
Certification :
CE RoHS ISO17025
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
360 sets / quarter
Delivery Time :
10 days ( check if have stock)
Packaging Details :
Wooden cases standard export package
Name :
Thermal Shock Tester
Pre-high temp. :
+220℃
Volume :
22L, 72L, 211L, 505L and more
Power supply :
380v, 50Hz
Cooling Mode :
Air-cool type
Temperature range :
-70C to 150C
Description

Description

Thermal shock tester can be used to test the structure of the material or composite material, in an instant by a very high temperature and low temperature continuous environment can bear degree of to in the shortest time test its due to thermal expansion and contraction caused by the changes of chemical or physical damage.

Parameter

Name Air To Air Thermal Shock Chamber
Model TS-340
Inner dimensions of test room (mm) 450*450*360
Volume of test room (mm) 72L
Load of test room 30kg
Overall dimensions(mm) 1710*1020*1845

Pre-heat room

 Upper limit preheat temperature +220℃
Heating time Ambient temperature to ~ + 200℃, within in 30 minutes.

Pre-cool room

 Lower limit pre-cool temperature -75℃
Cooling time Ambient temperature to ~ -70℃, within in 30 minutes
Test room High temperature exposure range Ambient temperature +20 to +200°C
Low temperature exposure range –65 to -5°C
Recovery time Within 15 minutes
Temperature fluctuation ≤±0.5℃
Temperature deviation ≤±3 ℃
Controller Programmable color LCD touch screen controller
Cooling system Mechanical compression refrigeration system
Refrigerating unit French TECUMSEH compressor
Refrigerant R404A, R23
Air circulation Centrifugal wind fan
Exterior material Steel Plate with protective coating
Interior material SUS304 stainless steel
Power Supply 380V 50HZ
Environmental conditional 5℃～+40 ℃ ≤85% R

Structure

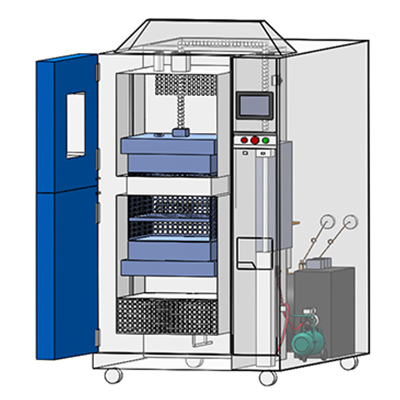

High Low Temperature Thermal Shock Tester Air Cool Type Thermal shock machine ,The upper part of the low temperature chamber, the middle for the studio, the lower part of the high temperature chamber. Sample does not move in the studio, the high and low temperature impact the gas damper dynamic switching to automatic switching, the cabinet is arranged on the upper right corner of the control, easy to operate.

Advantage
●Temperature Range: -70°C~220°C Or Tailor-made
●Test Space:22 To 505 Litres
●Electronic: AC220V·50HZ/380V·50HZ
●Meet Test Standard: IEC, ASTM, MIL, ISO Etc
●Interior Material:SUS 304
●Refrigeration:Unit Cooling Mode / Dual Cooling Method (air-cooled)as Per Size Of Chamber And Specific Low Temperature
●Temp Conversion Time:≤10 Seconds
●Temp Recovery Time:≤5 Min
Main Features
1. Three sections: High temperature chamber, low temperature chamber, testing chamber.
2. High formula memory capacity can store 120 patterns, 9999 cycles, setting time for each pattern
is 9999 Hrs 59 Mins.
3. RS-485 communication interface device, capable of connecting with computer.
4. Choose 2 zone/3 zone shocks.
5. Touch screen controller
6.Support for custom(Color, size, Logo, material,)

High Low Temperature Thermal Shock Tester Air Cool Type
