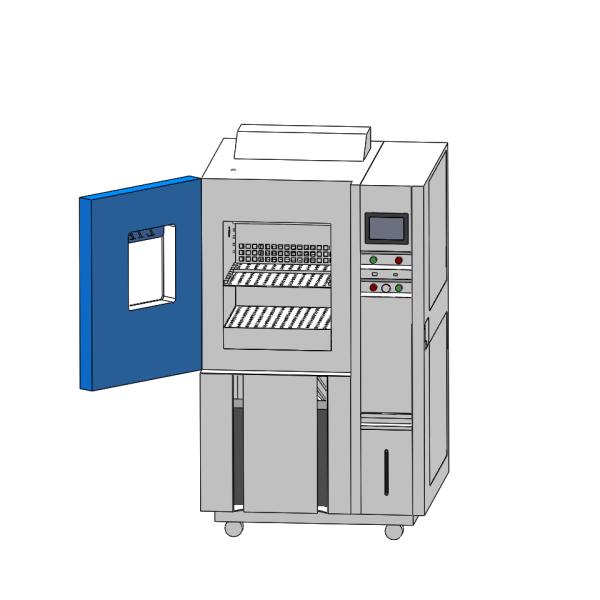

DIN 50017 Temperature Test Chamber Environmental Condensate
DIN 50017 Temperature Test Chamber Environmental Condensate
DIN 50017 Temperature Test Chamber Environmental Condensate
DIN 50017 Temperature Test Chamber Environmental Condensate
DIN 50017 Temperature Test Chamber Environmental Condensate
DIN 50017 Temperature Test Chamber Environmental Condensate
DIN 50017 Temperature Test Chamber Environmental Condensate
DIN 50017 Temperature Test Chamber Environmental Condensate
Specifications
Brand Name :
LIB
Model Number :
ATH-100A
Certification :
CE,ROHS
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability :
210Sets/quarter
Delivery Time :
5-14 Days
Packaging Details :
Wooden Cases Standard Export Package
Humidity Range :
95%RH ~ 100%RH
Temperature Range :
10℃ ～ +60 ℃
Sample shelf :
1pc sample shelf + 1pc round bar
Water trough :
Build-in water trough in testing room;
Controller :
Ethernet connection, USB port
Water supply system :
Automatic water supply
Description

Description

Condensate temperature test chamber is suitable for the electroplating coating test of electronic and electrical products, automotive aviation military equipment, hardware tools and other product parts, metal materials and products.



Technical Specification

Name DIN 50017 Environmental Condensate Temperature Test Chamber
Model ATH-100A
Internal Dimension (mm) 400*500*500 D*W*H
Overall Dimension (mm) 900*1050*1620 D*W*H
Temperature Range (℃) 10℃ ～ +60 ℃
Humidity range 95%RH ~ 100%
Cooling Rate 1°C / min
Heating Rate 3°C/ min
Testing room roof Slope shape designed, to avoid condensate drop on samples
Sample shelf 1pc sample shelf + 1pc round bar
Water trough Build-in water trough in testing room
Controller

Programmable color LCD touch screen controller
Ethernet connection, USB port
Temperature Sensor PTR Platinum Resistance PT100Ω/MV A-class
Humidity sensor Dry and wet bulb sensor
Air circulation Centrifugal wind fan
Water supply system Automatic water supply; Water purification system
Exterior material Steel Plate with protective coating
Standard configuration Dia50mm port on left side, with plug

Details

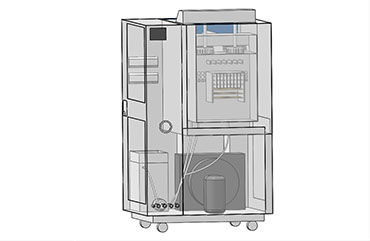

DIN 50017 Temperature Test Chamber Environmental Condensate DIN 50017 Temperature Test Chamber Environmental Condensate

Temperature and Humidity Sensor

●PT-100 Class A sensor, real-time accurate detection and display of temperature changes at 0.001 degrees.

●A wet gauze and a real-time temperature, converted by temperature difference, showing real-time relative humidity.

Condensation Constitute

●CondensationClimatic Chamber

●Condensation can be formed on the surface of the test specimens by cooling the chamber air temperature and testing specimens

●The condensate is composed by condensation water and dissolved matter from test specimens during testing


DIN EN ISO 6270-2 Test Procedure

Environmental condensation chamber

1. Put the test piece

2. Close the test chamber door

3. Turn on the heating device used to heat the water of the trough or the box to heat the working room to the air temperature required in the first stage

It must be reached within 1.5 hours, and condensate must be formed on the test piece

DIN 50017 Temperature Test Chamber Environmental Condensate DIN 50017 Temperature Test Chamber Environmental Condensate

Condensate Alternating Temperature and Humidity Test AHT

Condensate temperature test chamber

1.There are two stages, the first stage terminates the condensation process after 8 hours of heating

2.The second stage, 16 hours of cooling: open the equipment door and perform ventilation

3.Check the amount of water in the trough during the test 16 hours, and add water if necessary, then close the door and turn on the heating device to start a new cycle.

Condensate alternating temperature test AT

Condensate alternating test chamber

1.There are two stages, the first stage terminates the condensation process after 8 2.hours of heating

3.In the second stage, check the amount of water in the trough after 16 hours, and add water when necessary, and then turn on the heating device again to start a new cycle
