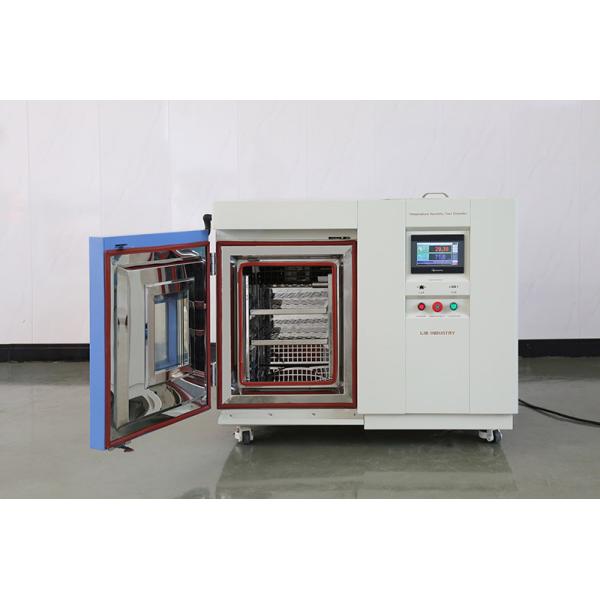

1 ℃ / Min 98% RH Benchtop Environmental Chamber Climate Test Chambers
1 ℃ / Min 98% RH Benchtop Environmental Chamber Climate Test Chambers
1 ℃ / Min 98% RH Benchtop Environmental Chamber Climate Test Chambers
1 ℃ / Min 98% RH Benchtop Environmental Chamber Climate Test Chambers
1 ℃ / Min 98% RH Benchtop Environmental Chamber Climate Test Chambers
1 ℃ / Min 98% RH Benchtop Environmental Chamber Climate Test Chambers
1 ℃ / Min 98% RH Benchtop Environmental Chamber Climate Test Chambers
1 ℃ / Min 98% RH Benchtop Environmental Chamber Climate Test Chambers
Specifications
Brand Name :
LIB
Model Number :
TH-50
Certification :
RoHS,CE
Place of Origin :
China
MOQ :
1 Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram,paypal
Supply Ability :
180 sets / quarter
Delivery Time :
3-14 days
Packaging Details :
Wooden cases standard export package
Name :
Environmental Test Climate Chambers
Low Type :
-20℃/-40℃/70℃
Temperature range :
-20℃ ～+150 ℃
Warranty :
36 monthes
Humidity range :
20%~98%
Controller :
Programmable LCD touch screen
Description

Description

The test climate chambers is a device that simulates the high temperature, low temperature, humidity and other environmental conditions in the natural environment,

The climate test chamber detects the fading, cracking, aging, and corrosion properties of products, and helps manufacturers to conduct quality screening.

Parameters

Name 1 ℃ / min 98% RH Environmental Test Climate Chambers
Model TH-50
Internal dimension (mm) 320*350*450
Overall dimension (mm) 800*1050*950
Temperature range -20℃ ～+150 ℃
Low type Ⅰ: -40℃ Ⅱ:-70℃
Humidity range 20% ~ 98% RH
Temperature fluctuations ± 0.5 ℃
Temperature deviation ± 2.0 ℃
Humidity deviation ± 2.5% RH
Heating rate 3 ℃ / min
Cooling rate 1 ℃ / min
Temperature Sensor PTR Platinum Resistance PT100Ω/MV A-class
Temperature Resolution ± 0.001 ℃
Humidity sensor Dry and wet bulb sensor
Power Supply AC220V 50HZ
Environmental conditional 5℃～+40 ℃ ≤85% RH

Details

1 ℃ / Min 98% RH Benchtop Environmental Chamber Climate Test Chambers 1 ℃ / Min 98% RH Benchtop Environmental Chamber Climate Test Chambers 1 ℃ / Min 98% RH Benchtop Environmental Chamber Climate Test Chambers
controller Test Area Inspection Window

●The Effect of High Temperature on the Product

High temperature machine

▶Discoloration, cracking or cracking of organic materials;

▶The material in the sealed shell (shell, bomb, etc.) generates high pressure due to thermal expansion;

●The effect of humidity on the product

humidity test machine

▶Accelerates the oxidation and galvanic corrosion of metal surfaces;

▶Accelerate the electrochemical reaction of the surface organic coating and destroy the protective effect of the surface coating;

1 ℃ / Min 98% RH Benchtop Environmental Chamber Climate Test Chambers 1 ℃ / Min 98% RH Benchtop Environmental Chamber Climate Test Chambers
