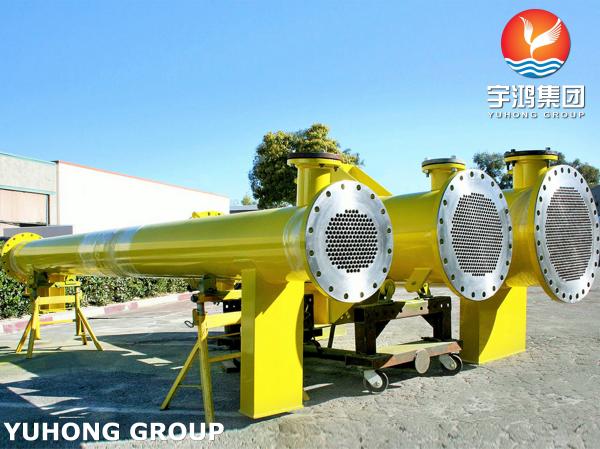

​​TEMA BEM Shell & Tube Heat Exchanger AS 1210 Div.1, ASME U Stamp for Refinery Service
​​TEMA BEM Shell & Tube Heat Exchanger AS 1210 Div.1, ASME U Stamp for Refinery Service
​​TEMA BEM Shell & Tube Heat Exchanger AS 1210 Div.1, ASME U Stamp for Refinery Service
​​TEMA BEM Shell & Tube Heat Exchanger AS 1210 Div.1, ASME U Stamp for Refinery Service
​​TEMA BEM Shell & Tube Heat Exchanger AS 1210 Div.1, ASME U Stamp for Refinery Service
​​TEMA BEM Shell & Tube Heat Exchanger AS 1210 Div.1, ASME U Stamp for Refinery Service
​​TEMA BEM Shell & Tube Heat Exchanger AS 1210 Div.1, ASME U Stamp for Refinery Service
​​TEMA BEM Shell & Tube Heat Exchanger AS 1210 Div.1, ASME U Stamp for Refinery Service
Specifications
Brand Name :
YUHONG
Model Number :
SHELL AND TUBE HEAT EXCHANGER
Certification :
API 660, AS 1210 Div.1, ASME U Stamp
Place of Origin :
China
MOQ :
1Set
Price :
10,000-500,000 USD
Payment Terms :
L/C, T/T
Supply Ability :
50SETS/MONTHS
Delivery Time :
45---120 DAYS
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap
Type :
​​TEMA BEM
Standard :
API 660, AS 1210 Div.1,
Material :
Carbon steel, stainless steel, alloy steel, titanium steel
Tube bundle :
U BEND TUBE, Straight tube
Cladding :
Depend on corrosion allowance
Description

​​TEMA BEM Shell & Tube Heat Exchanger AS 1210 Div.1, ASME U Stamp for Refinery Service

YUHONG delivers API 660 compliant shell and tube heat exchangers to Australia, meeting all critical standards:

  • ​​ASME U Stamp:​​ Constructed to ASME Section VIII Division 1.
  • ​​CRS Options:​​ Available primarily in Carbon Steel construction.---AS1210

Shell & Tube Heat Exchanger AS 1210 Div.1​ COMPONENTS AND INTEGRALLY CLAD METALS
(a) Pipe fittings ASME B16.9, ASME B16.11, AS/NZS 4331.
(b) Pipe flanges AS 2129, AS/NZS 4331, BS 3293, EN 1092, ASME B16.47,
ASME B16.5.
(c) Bolting AS 1110 (series), AS 1111 (series), AS 1112 (series), AS/NZS 2451,
AS/NZS 2465, AS 2528, AS B148, BS 2693.1, BS 4439, BS 4882, ASTM A 193,
ASTM A 194, ASTM A 320.
(d) Pipe threads AS ISO 7.1, AS 1722.2, ASME B1.20.1, ASME B1.20.3, API Std 5B.
(e) Valves AS 1271, ASME B16.34.
(f) Integrally clad plate ASTM A 263, ASTM A 264, ASTM A 265, ASTM B 898

Shell & Tube Heat Exchanger AS 1210 Div.1​ Material Reference Table

Group Type Typical Standard or Nominal Composition
​​A1​​ Carbon and carbon-manganese steel (low strength) AS 1548: 7-430, PT460
​​A2​​ Carbon and carbon-manganese steel (medium strength) AS 1548: 5-490, 7-490
​​A3​​ Carbon and carbon-manganese steel (high yield strength) AS 1548: PT490, PT540
AS/NZS 1594: XF 400, XF 500
API 5L: X52, 60, 65, 70
​​A4​​ Carbon and carbon-manganese steel (quenched and tempered) JIS-G 3115 SPV490
​​B​​ Alloy steel (alloy < 3/4) C-1/2 Mo; 1/2 Cr-1/2 Mo; 1/4 Mn-1/2 Mo
​​C​​ Alloy steel (3/4 ≤ total alloy < 3) 1 Cr-1/2 Mo; 1 1/4 Cr-1/2 Mo
​​D1​​ Low alloy steel (vanadium type) 1/2 Cr-1/2 Mo-1/4 V
​​D2​​ Alloy steel (3 ≤ total alloy < 10) 2 1/4 Cr-1 Mo; 5 Cr-1/2 Mo; 9 Cr-1 Mo
​​E​​ 3 1/2 - 5 Nickel steel 3 1/2 Ni, 5 Ni
​​F​​ 9 Nickel steel 9 Ni
​​G​​ Alloy steel quenched and tempered AS 3597: 700 PV
​​H​​ Martensitic chromium steel 12 Cr (Type 410)
15 Cr (Type 429)
​​J​​ Ferritic high chromium steel 12 Cr-Al (Type 405) (Note 4)
12 Cr-low C (Type 410S) (Note 5/6)
​​K​​ Austenitic chromium-nickel steel 18 Cr-8 Ni (Type 304)
18 Cr-12 Ni-2.5 Mo (Type 316)
18 Cr-10 Ni-Ti (Type 321)
​​L​​ High chromium steel (>25 Cr) 27 Cr-0.5 Ni-0.2 C (S44627)
​​M​​ Ferritic-austenitic chromium-nickel steel (Duplex and Super Duplex) Various
​​Non-ferrous metals​​ Aluminium and its alloys Various
Copper and its alloys Various
Nickel and its alloys All grades except those below
Ni-Cr-Fe, Ni-Fe-Cr, Ni-Mo, Ni-Mo-Cr, Ni-Cr-Mo-Nb Various
Other Various

​​TEMA BEM Shell & Tube Heat Exchanger AS 1210 Div.1, ASME U Stamp for Refinery Service
