ASME Sec VIII Div 1 Vessel, S32750 Shell with PWHT for Mining Blowdown System H₂S Environments
ASME Sec VIII Div 1 Vessel, S32750 Shell with PWHT for Mining Blowdown System H₂S Environments
ASME Sec VIII Div 1 Vessel, S32750 Shell with PWHT for Mining Blowdown System H₂S Environments
ASME Sec VIII Div 1 Vessel, S32750 Shell with PWHT for Mining Blowdown System H₂S Environments
ASME Sec VIII Div 1 Vessel, S32750 Shell with PWHT for Mining Blowdown System H₂S Environments
ASME Sec VIII Div 1 Vessel, S32750 Shell with PWHT for Mining Blowdown System H₂S Environments
ASME Sec VIII Div 1 Vessel, S32750 Shell with PWHT for Mining Blowdown System H₂S Environments
ASME Sec VIII Div 1 Vessel, S32750 Shell with PWHT for Mining Blowdown System H₂S Environments
Specifications
Brand Name :
YUHONG
Model Number :
Steam Blow Back Vessel
Certification :
ASME VIII DIV.1 , PED, API , NB
Place of Origin :
China
MOQ :
1Set
Price :
5,000 -- 100,000 USD
Payment Terms :
L/C, T/T
Supply Ability :
50SETS/MONTHS
Delivery Time :
45---150 DAYS
Packaging Details :
Pallet
Plate material :
SA240 UNS S32750
Plate head :
SA240 UNS S32750
Forgings :
SA182 F53
Pipes :
SA790 UNS S32750
Description

ASME Sec VIII Div 1 Vessel, S32750 Shell with PWHT for Mining Blowdown System H₂S Environments

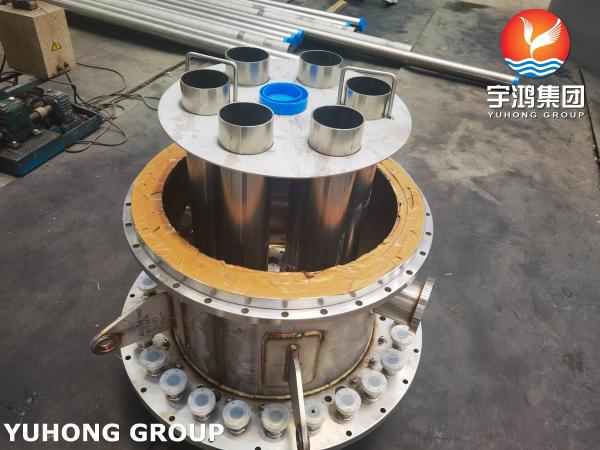

YUHONG Steam Blow Back Vessel is engineered to meet the rigorous operational demands of the mining industry. Constructed with a S32750 duplex stainless steel shell, this vessel is designed for durability and high resistance to corrosion, especially in environments with aggressive chemicals and high pressures. Certified with the ASME U-Stamp, the vessel complies with ASME Section VIII Division 1, ensuring safety, reliability, and performance in industrial applications.

ASME Sec VIII Div 1 Vessel, S32750 Shell Technical Specifications

Parameter Details
Design Code ASME Section VIII Division 1
Material Duplex Stainless Steel S32750
Design Pressure Up to 50 bar
Design Temperature Up to 300°C
Corrosion Allowance Per UG-25
Welding Standard ASME Section IX
Testing Hydrostatic and radiographic inspection as per ASME standards

ASME Sec VIII Div 1 Vessel, S32750 Shell testing reference

Test Type ASME Reference Purpose
Hydrostatic Test UG-99 Ensures pressure integrity by testing the vessel at 1.3 times the design pressure.
Radiographic Examination UW-51 Verifies the weld quality and detects internal discontinuities in critical areas.
Pneumatic Test UG-100 Optional test to check vessel integrity using compressed gas where water cannot be used.
Visual Inspection Appendix 4 Confirms the overall workmanship and compliance with the design specifications.
Material Certification UG-4 and UG-10 Ensures all materials meet the specified ASME/ASTM standards, including chemical and mechanical properties.

ASME Sec VIII Div 1 Vessel, S32750 Shell Testing Requirements

ASME Requirements Application in Vessel Design
Material Compliance The shell is constructed using S32750 duplex stainless steel, conforming to ASME SA-240.
Design Pressure and Temperature The vessel is designed to handle pressures up to 50 bar and temperatures up to 300°C, as per ASME Code rules.
Stress Analysis Calculations for maximum allowable stress are performed per UG-23 and related sections.
Welding Standards Welds comply with ASME Section IX, ensuring high-quality joint integrity.
Corrosion Allowance A corrosion allowance is added as required by UG-25, extending vessel service life.
