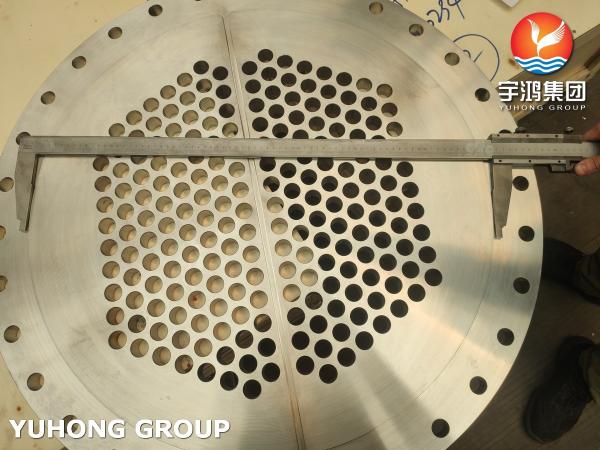

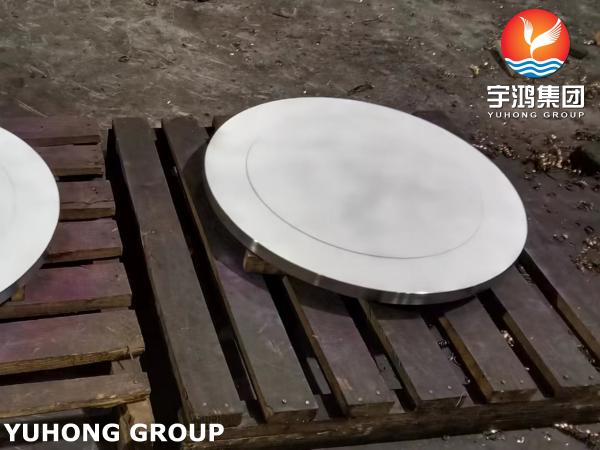

A stainless steel tubesheet is a crucial component in heat exchangers, condensers, and other shell-and-tube equipment. It serves as a structural element that holds the tubes in place, separates the shell-side and tube-side fluids, and ensures efficient heat transfer. Stainless steel is a popular material for tubesheets due to its excellent corrosion resistance, mechanical strength, and durability in demanding environments.

Applications: General-purpose heat exchangers, food processing, and chemical industries.

Properties: Good corrosion resistance, excellent formability, and weldability.

Composition: Chromium (18-20%), Nickel (8-10.5%), Carbon (0.08% max for 304, 0.03% max for 304L).

Composition: Chromium (16-18%), Nickel (10-14%), Molybdenum (2-3%), Carbon (0.08% max for 316, 0.03% max for 316L).

Properties: Superior corrosion resistance, especially against chlorides and acidic environments, due to molybdenum content.

Applications: Marine environments, chemical processing, and pharmaceutical industries.

Composition: Chromium (10.5-11.75%), Carbon (0.08% max).

Properties: Moderate corrosion resistance, good thermal conductivity, and lower cost.

Applications: Automotive exhaust systems and low-pressure heat exchangers.

Composition: Chromium (16-18%), Carbon (0.12% max).

Properties: Good corrosion resistance in mild environments, magnetic, and cost-effective.

Applications: Appliances, automotive, and low-corrosion environments.

• Corrosion Resistance
• Mechanical Strength
• Thermal Conductivity
• Fabrication and Weldability
• Compatibility with Tubes:

• Chemical Processing: Heat exchangers handling corrosive chemicals.
• Oil and Gas: Offshore platforms, refineries, and sour gas environments.
• Power Generation: Condensers and heat recovery systems.
• Food and Beverage: Hygienic heat exchangers for processing.
• Pharmaceutical: Sterile and corrosion-resistant equipment.

In summary, stainless steel tubesheets are widely used in industries where corrosion resistance, strength, and durability are critical. The choice of stainless steel grade depends on the specific application, environmental conditions, and mechanical requirements.
