ASME SEC. VIII DIV.1 TEMA Type BEU TEMA Class R Heat exchangers for Oilfield surface facilities
ASME SEC. VIII DIV.1 TEMA Type BEU TEMA Class R Heat exchangers for Oilfield surface facilities
ASME SEC. VIII DIV.1 TEMA Type BEU TEMA Class R Heat exchangers for Oilfield surface facilities
ASME SEC. VIII DIV.1 TEMA Type BEU TEMA Class R Heat exchangers for Oilfield surface facilities
ASME SEC. VIII DIV.1 TEMA Type BEU TEMA Class R Heat exchangers for Oilfield surface facilities
ASME SEC. VIII DIV.1 TEMA Type BEU TEMA Class R Heat exchangers for Oilfield surface facilities
ASME SEC. VIII DIV.1 TEMA Type BEU TEMA Class R Heat exchangers for Oilfield surface facilities
ASME SEC. VIII DIV.1 TEMA Type BEU TEMA Class R Heat exchangers for Oilfield surface facilities
Specifications
Brand Name :
YUHONG
Model Number :
SHELL AND TUBE HEAT EXCHANGER
Certification :
ASME VIII Div. 1, PED/97/23/CE, TEMA R, TEMA C, TEMA B
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Depend on drawing
Payment Terms :
T/T,L/C,D/A
Supply Ability :
60 SETS/MONTH
Delivery Time :
20-80 days
Packaging Details :
Ply-wooden Case /Iron Case/ Bundle with plastic Cap etc.
Shell :
ASME SA516M GR.60N
Flanges :
ASME SA266 GR.2N
Pipe :
ASME SA210 GR.A1
Tubesheet :
ASME SA266 GR.2N
Baffles :
AASME SA283 GR.C
Elliptical head :
ASME SA516M GR.60N
Description

ASME SEC. VIII DIV.1 TEMA Type BEU TEMA Class R Heat exchangers for Oilfield surface facilities

YUHONG believe the performance ceiling of any heat exchanger is defined by its raw components. Our technical specifications are not just a bill of materials; they are a deliberate engineering strategy.
  • Forged for Strength:​SA-105N forged flanges​ for critical nozzles
  • Seamless for Integrity:​SA-106 Gr.B seamless pipes​ for pressure parts
  • Engineered for Resilience:​ spiral-wound gaskets​ that maintain seals through thermal transients to SA-193 B7 high-strength bolting​ that preserves flange integrity under vibration

Heat Exchanger Design Data-Physical Specifications

Empty Weight: 3350kg

Operating Weight: 6000kg

Full Water Weight: 1960 kg

Hydrostatic Test Weight: 5350kg

Insulation Thickness: 100mm

Design Life: 20 Years

TEMA Type / Class: BEU / R

Components & Accessories

Gaskets: Spiral-wound gaskets (Type I & II).

Nozzle Components: SA-105N Flanges and SA-106 Gr.B N Pipes.

Support Spacers: SA-210 Gr.A-1 Seamless steel pipe

Hardware: M27/M10 Bolts and Nuts (SA-325, SA-563, SA-193/194).

Earth Lugs: SA-240 304 Stainless Steel.

Testing Requirements

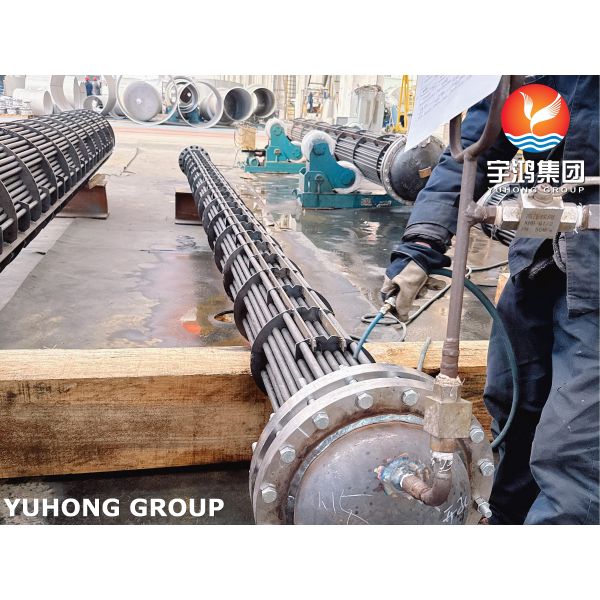

Hydrostatic Pressure Test:​ The primary mandatory test. The shell side will be pressurized to 1.5 times the design pressure​ (as indicated by the dedicated Hydrostatic Test Weight of 5350 kg). The test pressure is held for a minimum specified duration while a thorough visual inspection is conducted.
Material Verification & Traceability:​ All pressure-retaining materials (SA-105, SA-106) must be supplied with valid Mill Test Certificates (MTCs).
Non-Destructive Examination (NDE):​ In accordance with TEMA R class requirements and the design code (typically ASME BPVC Sec. VIII), critical welds (e.g., shell longitudinal/seam welds, nozzle-to-shell welds) are subject to NDE. Methods include Radiographic Testing (RT)​ or Ultrasonic Testing (UT)​ for volumetric examination, and Liquid Penetrant Testing (PT)​ or Magnetic Particle Testing (MT)​ for surface examination.
