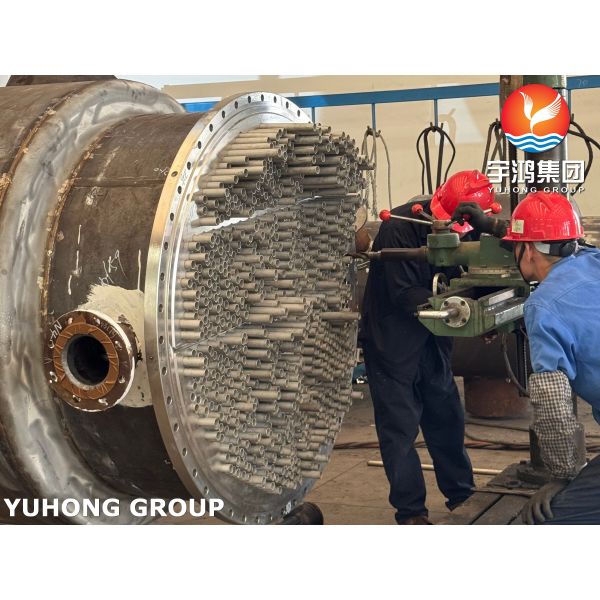

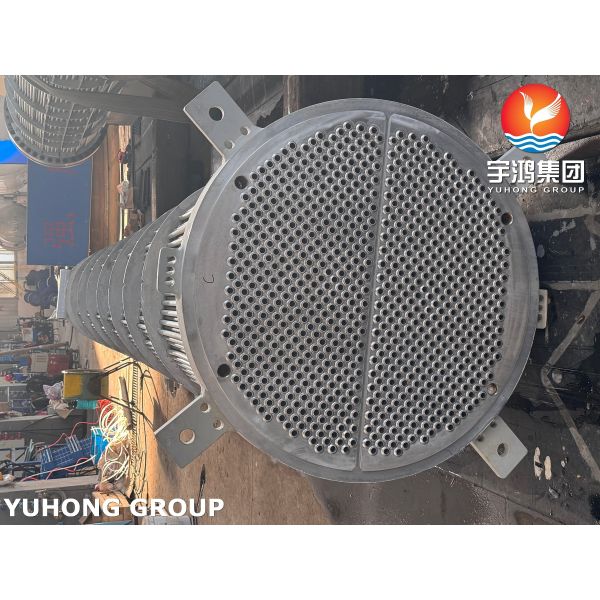

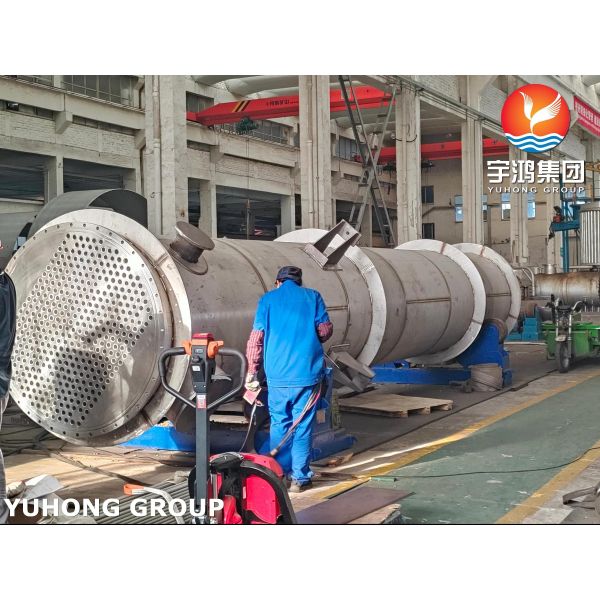

ASME U Stamp Shell and Tube Heat Exchanger U Tube Bundle SA213 TP304L SS304L Chiller
ASME U Stamp Shell and Tube Heat Exchanger U Tube Bundle SA213 TP304L SS304L Chiller
ASME U Stamp Shell and Tube Heat Exchanger U Tube Bundle SA213 TP304L SS304L Chiller
ASME U Stamp Shell and Tube Heat Exchanger U Tube Bundle SA213 TP304L SS304L Chiller
ASME U Stamp Shell and Tube Heat Exchanger U Tube Bundle SA213 TP304L SS304L Chiller
ASME U Stamp Shell and Tube Heat Exchanger U Tube Bundle SA213 TP304L SS304L Chiller
ASME U Stamp Shell and Tube Heat Exchanger U Tube Bundle SA213 TP304L SS304L Chiller
ASME U Stamp Shell and Tube Heat Exchanger U Tube Bundle SA213 TP304L SS304L Chiller
Specifications
tube :
SA213 TP304L
Nozzle form pipe :
SA333 GR.1
Nozzle flange :
SA350 FL2 CL.1
barrel :
SA516 GR.70N
body flange :
SA350 FL2 CL.1
Brand Name :
YUHONG
Model Number :
SHELL AND TUBE HEAT EXCHANGER
Certification :
ASME VIII Div. 1, PED/97/23/CE, TEMA R, TEMA C, TEMA B
Place of Origin :
CHINA
MOQ :
1 SET
Price :
Depend on drawing
Payment Terms :
T/T, L/C, D/A
Supply Ability :
60 SETS/MONTH
Delivery Time :
20-80 days
Packaging Details :
According to client requirements
shell and cover :
SA193 B8 CL.1/SA194-8
Description

ASME U Stamp Shell and Tube Heat Exchanger U Tube Bundle SA213 TP304L SS304L Chiller

YUHONG provide ASME certified shell and tube heat exchangers using SA213 TP304L materials, designed for optimal efficiency and durability. Our solutions are ideal for various industries, ensuring reliability in demanding environments.

Design data sheet of Shell and Tube Heat Exchangers
1. DESIGN CODES
ASME SEC. VIII, DIV. 1
TEMA R
API 660
NACE
2. TEMA TYPE / POSITION
AES
HORIZONTAL
3. DESIGN CODE FOR SEISMIC
IBC 2018 (NOTE 26, 28)
4. DESIGN CODE FOR WIND
ASCE/SEI 7-22 (NOTE 25, 28)

Material list of Shell and Tube Heat Exchangers

Component / Part Name Material Specification
BARREL SA 516 Gr.70N
BODY FLANGES SA 350 LF2 CL.1
NOZZLE FROM PIPE SA 333 Gr.1
NOZZLE FROM PLATE SA 516 Gr.70N
NOZZLE FLANGE SA 350 LF2 CL.1
COUPLING & PLUGS -
NOZZLE SELF REINFORCE SA 350 LF2 CL.1
EXCHANGER SUPPORT SA 283 Gr.C
SADDLES WEAR PLATE SA 516 Gr.70N
STIFFENING RINGS SA 516 Gr.70N
EXPANSION JOINT -
BARREL SA 516 Gr.70N
COVER SA 516 Gr.70N
FLANGE SA 350 LF2 CL.1
BARREL SA 240 304L
BODY FLANGE SA 182 F304L
NOZZLE FROM PIPE SA 312 TP304L
NOZZLE FROM PLATE -
NOZZLE FLANGE SA 182 F304L
NOZZLE SELF REINFORCE SA 182 F304L
PARTITION PLATE SA 240 304L
COVER -
FLANGE -
SPLIT RING -
TUBE SA 213 TP304L
TUBE SHEET (CLAD) SA 350 LF2 CL.1 + 3mm S.S.304L CLAD
BAFFLE / SUPPORT / IMPINGEMENT PLATE SA 240 304L
TIE ROD & SPACER SA 479 Gr.304L / SA 213 TP304L

Applications:

Oil and Gas

Chemical Processing

HVAC Systems

Power Generation

Water Treatment
