Yuhong Group Co., Ltd. is a certified manufacturer and specialized supplier of nickel-based superalloy components and severe-service hardware for thermal processing equipment. Operating through www.tema-heatexchanger.com, we design, precision-machine, and supply custom Inconel 617 (UNS N06617 / 2.4663) bolts, studs, heavy hex nuts, precision washers, and custom-fabricated support plates engineered for ultra-high-temperature environments exceeding 1000°C (1832°F).

Whether you are securing a high-temperature u tube bundle inside a critical shell and tube heat exchanger, anchoring an elevated-duty finned tube bundle, or sourcing precision internal hardware alongside a forged heat exchanger tubesheet, Yuhong Group delivers fully traceable, laser-marked superalloy hardware tailored to strict ASME and API standards.

Our Inconel 617 hardware assemblies are custom-machined to exact client drawings to support process piping, tube grids, and internal baffle structures:

• High-Temperature Fasteners & Bolts: Hex head cap screws, heavy hex bolts, stepped shoulder pins, threaded studs, and double-nut assemblies designed for high-stress cyclic heating.

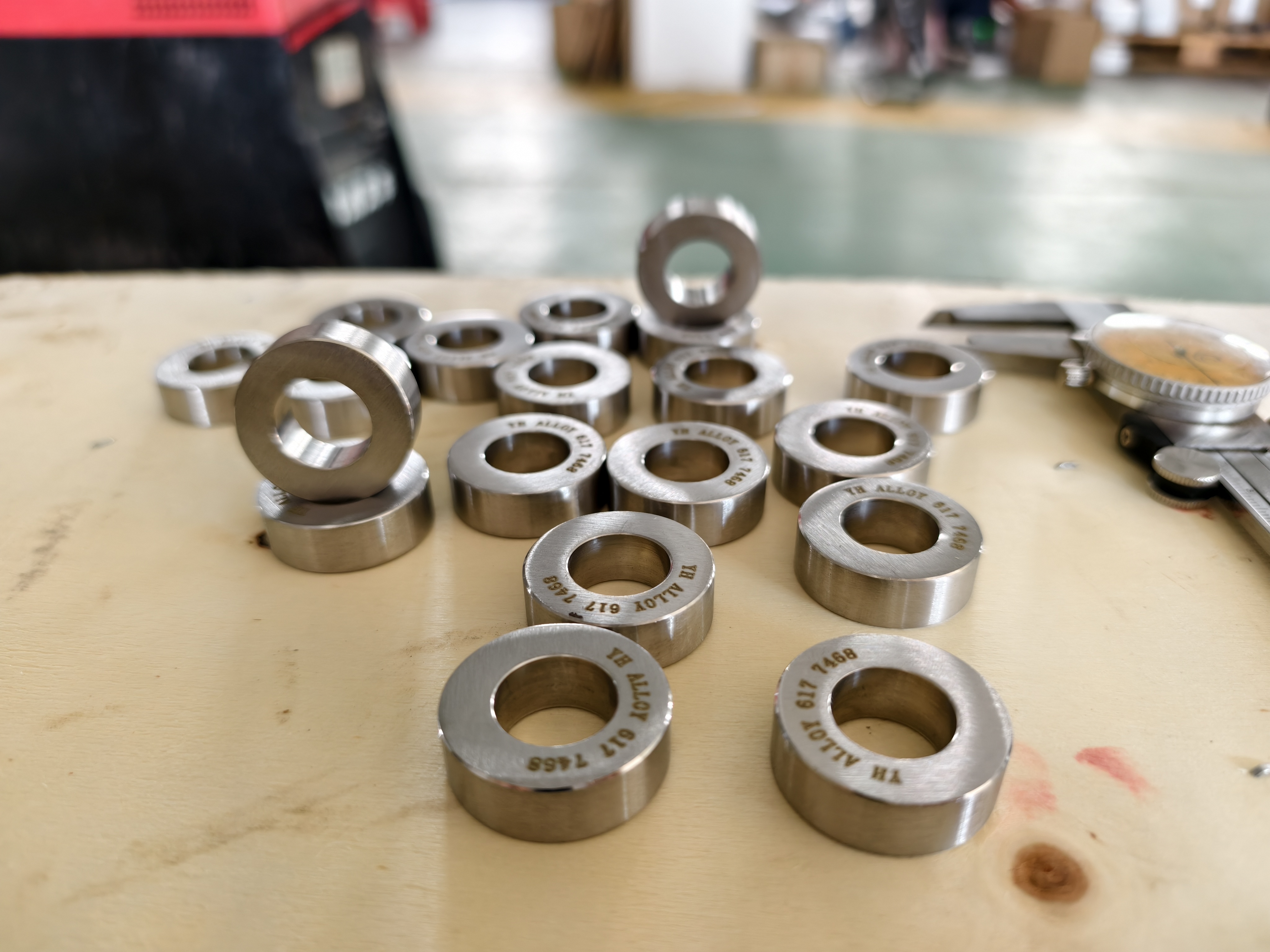

• Precision Bushings, Sleeves & Washers: Thick-wall machined spacer sleeves and heavy-duty Belleville/flat washers providing uniform clamping load distribution.
• Slotted Support Plates & Guide Brackets: CNC laser-cut or wire-EDM machined Inconel 617 support plates, baffle tie-rods, and sliding tube guide plates designed to maintain precise tube bundle alignment.
• Custom Tube Clamps & Hardware: Special alloy clamping rings and spacer blocks engineered to protect internal heat exchanger tubesheet connections from thermal shock.

Inconel 617 is a solid-solution, nickel-chromium-cobalt-molybdenum alloy characterized by an exceptional combination of metallurgical stability, high-temperature creep resistance, and oxidation resistance:

To streamline turnaround maintenance and original equipment manufacturing (OEM), Yuhong Group supplies complete internal hardware packages alongside primary heat transfer components:

1. Unmatched High-Temperature Creep Strength: Inconel 617 maintains superior tensile and creep-rupture strength above 800°C, preventing bolt relaxation and leakage in high-pressure shell & tube heat exchanger units.
2. Exceptional Oxidation & Carburization Resistance: Forms a highly protective, adherent oxide scale that withstands cyclic thermal shock, hot gas corrosion, and carburizing atmospheres.
3. 100% Traceable Laser Marking: Every individual bolt, sleeve, and support plate is laser-etched with alloy grade and heat charge numbers, guaranteeing zero material mix-ups on site.
4. Precision Machining Tolerances: Tight dimensional tolerances ensured by CNC turning, wire-EDM cutting, and post-machining dimensional verification.

• Ethylene Cracking Furnaces & Pyrolysis Units: Securing tube hangers, guide frames, and furnace internal crossovers.
• Syngas & Hydrogen Reformers: Internal baffle plate fixings in high-temperature waste heat boilers and transfer line exchangers (TLE).
• Nitric Acid & Catalyst Recovery Units: High-temperature reactor internal supports subject to severe oxidizing gas streams.
• Nuclear & Advanced Power Generation: High-temperature gas-cooled reactors (HTGR) and supercritical CO2 power cycles.

When specifying Inconel 617 fasteners and support plates for a shell and tube heat exchanger or specialized u tube bundle, process engineers should observe the following best practices:

• Matching Thermal Expansion Coefficients: Ensure the thermal expansion coefficient of the fasteners matches or accommodates the expansion rate of the heat exchanger tubesheet and shell to prevent thermal fatigue or bolt unloading during startup/shutdown.
• Anti-Galling Thread Lubrication: High-nickel alloys are prone to thread galling during torqueing. High-temperature nickel-based or ceramic anti-seize paste must be applied during assembly.
• Stress Relief After Heavy Machining/Cutting: Cold-worked or laser-cut Inconel 617 support plates intended for severe thermal service should undergo solution annealing to ensure uniform stress distribution and grain structure.

Need custom Inconel 617 bolts, heavy washers, laser-cut support plates, or replacement tube bundle assemblies? Contact the Yuhong Group technical sales team today:
