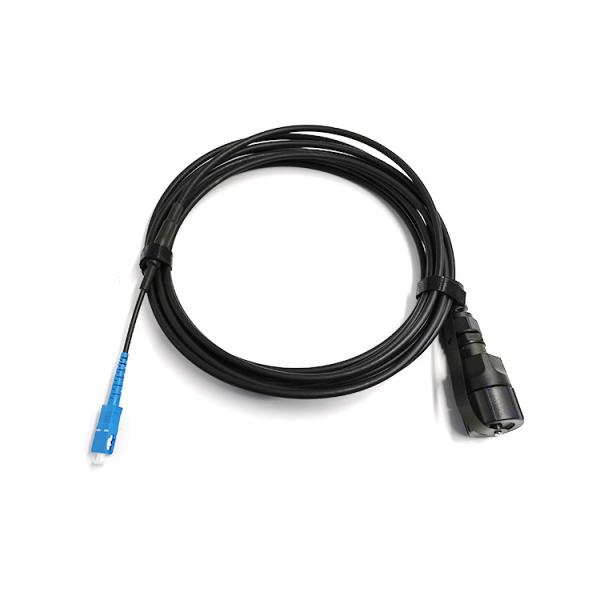

Waterproof CPRI Fiber Cable Armored FTTA SC LC Patch Cord UV Resistant
Waterproof CPRI Fiber Cable Armored FTTA SC LC Patch Cord UV Resistant
Waterproof CPRI Fiber Cable Armored FTTA SC LC Patch Cord UV Resistant
Waterproof CPRI Fiber Cable Armored FTTA SC LC Patch Cord UV Resistant
Waterproof CPRI Fiber Cable Armored FTTA SC LC Patch Cord UV Resistant
Waterproof CPRI Fiber Cable Armored FTTA SC LC Patch Cord UV Resistant
Waterproof CPRI Fiber Cable Armored FTTA SC LC Patch Cord UV Resistant
Waterproof CPRI Fiber Cable Armored FTTA SC LC Patch Cord UV Resistant
Specifications
Brand Name :
SOGOO
Certification :
CE, RoHS
Place of Origin :
Guangdong, China
MOQ :
10 pcs
Price :
sales@sogootech.com
Payment Terms :
T/T; Paypal; Western Union
Supply Ability :
2000 pcs per week
Delivery Time :
3-20 days depends on quantity
Packaging Details :
10pcs in 1 Anti-static package, standard packing
Product Name :
Fiber Optic Outdoor Armored FTTA Waterproof LC-SC Patch cord
Length :
10m~100M
Connector :
LC-SC
Insertion loss :
<=0.3 dB
Wire diameter :
7.0 mm
Cable mode :
Armored
Description

Fiber Optic Outdoor Armored FTTA Waterproof LC-SC Patch cord

Features:

1, Good mechanical and environmental characteristics;

2, Flame retardant characteristics meet the requirements of relevant standards;

3, The mechanical characteristics of jacket meet the requirements of relevant standards;

4, Soft, flexible, water blocked, UV resistant, easy to lay and splice, and with big capacity data transmission;

5, Meet various requirements of market and clients

Waterproof CPRI Fiber Cable Armored FTTA SC LC Patch Cord UV Resistant

Cable Structure:

Type1: LSZH+Kevlar+2×Tight Buffer(4.8mm/7.0mm);

Type2 :LSZH+Armoured+Kevlar+2×2.0mm Cable(7.0mm);

Type3: PE+Armoured+Kevlar+2×2.0mm Cable(7.0mm);

Type4 :LSZH+Armoured+Kevlar+2×0.9mm Cable(4.8mm or 7.0mm);

Type5: PE+Armoured+Kevlar+2×0.9mm Cable(4.8mm or 7.0mm);

Type6: LSZH+ Kevlar+2×2.0mm Cable +2×2.0mmTube(7.0mm);

Type5 :PE+Armoured+Kevlar+2×2.0mm Cable (7.0mm);

Cable Parameters:

Fiber Count

Cable Dimension

mm

Cable Weight

kg/km

Tensile

N

Crush

N/100mm

Min. Bend Radius

mm

Range of Temperature
Long Term Short Term Long Term Short Term Dynamic Static
2 7.0 42.3 200 400 1100 2200 20D 10D -40-+85

Note: 1. All the values in the table, which are for reference only, are subject to change without notice;

2. The cable dimension and weight are subject to the simplex cable of 2.0 outer diameter;

3. D is outer diameter of the round cable;
Our Service

1. Factory Price

2. OEM

3. Fast delivery,low freight

4. Customize service

Packing & Delivery


Specification
Standard Duplex LC connector, well connected with standard LC adaptor
Available Single mode and Multimode
IP67 protection, salt-mist proof, humidity proof, dust proof
Low insertion/return loss, steady optical transmitting.
Light weight, waterproof, dustproof, moisture proof, Metal hard housing.


Usage

Widely used in FTTA & FTTH
Used for 3G 4G base station
BBU, RRU, RRH, LTE
Waterproof CPRI Fiber Cable Armored FTTA SC LC Patch Cord UV Resistant

Recommend Products

Waterproof CPRI Fiber Cable Armored FTTA SC LC Patch Cord UV Resistant

Waterproof CPRI Fiber Cable Armored FTTA SC LC Patch Cord UV Resistant

Packaging and Shipment

Waterproof CPRI Fiber Cable Armored FTTA SC LC Patch Cord UV Resistant

Contact us

Waterproof CPRI Fiber Cable Armored FTTA SC LC Patch Cord UV Resistant

Look forward to your inquiry on Fiber Optic Outdoor Armored FTTA Waterproof LC-SC Patch cord.
