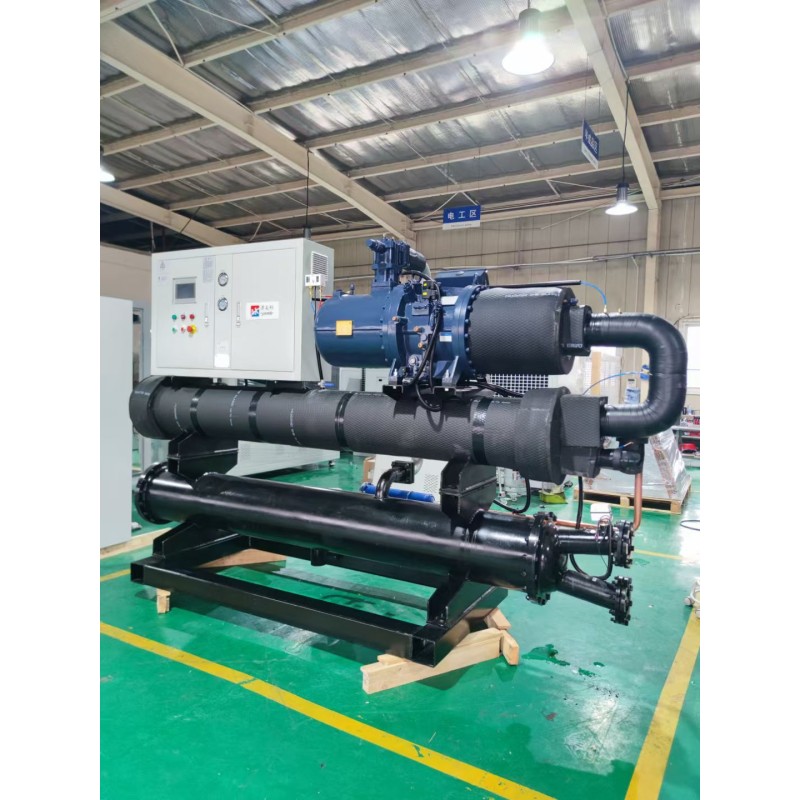

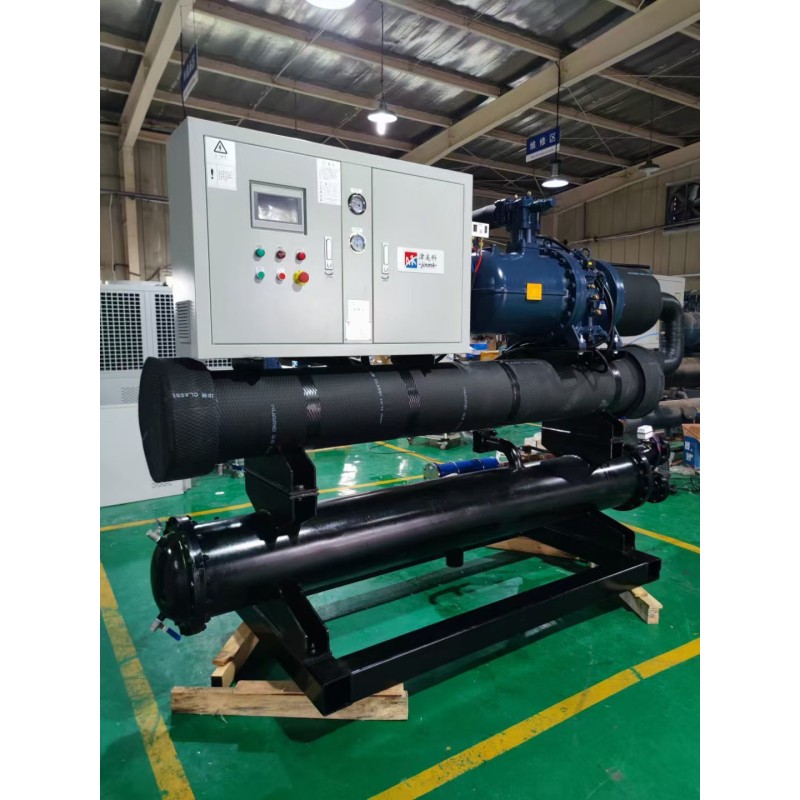

MK-930WS 991.1KW Water-Cooled Screw Chiller - 3N-380V/50Hz Industrial Cooling System​
MK-930WS 991.1KW Water-Cooled Screw Chiller - 3N-380V/50Hz Industrial Cooling System​
MK-930WS 991.1KW Water-Cooled Screw Chiller - 3N-380V/50Hz Industrial Cooling System​
MK-930WS 991.1KW Water-Cooled Screw Chiller - 3N-380V/50Hz Industrial Cooling System​
MK-930WS 991.1KW Water-Cooled Screw Chiller - 3N-380V/50Hz Industrial Cooling System​
MK-930WS 991.1KW Water-Cooled Screw Chiller - 3N-380V/50Hz Industrial Cooling System​
Specifications
weight :
170.5
MOQ :
1
Model :
MK-930WS
Model Number :
MK-710WS
Cooling Capacity :
991.1
Rated current/A :
357.7
Amount of water M3/h :
205.7
Refrigerant :
208.0
Supply Ability :
500 sets per month
Price :
Inquiry
Power supply :
3N-380V/50Hz
Payment Terms :
T/T
Delivery Time :
5-8 weeks
Compressor Rated power :
204.9
Packaging Details :
wooden cartons
Description

Description

The waterrcooled screw chiler is an efficent and stable industrial relrigeration equioment that adopts advanced screwcompression technology and high-efficiency shell and tube condenser, designed specilically for industrial environmentsthat require large cooling capacily and continuous cooling. It has high refrigeration efficiency, stable aperation, energyconservation and environmental protection, and is widely used in industries such as central air conditioning systems,chemicals, food and beverage, pharmacoutical manutacturing, clectronics, etc., providing customers with relablerefrigeration solutions.

Specification

Model

MK-710WS

MK-830WS

MK-930WS

MK-410WD

MK-510WD

MK-620WD

MK-710WD

Parameter

Designed capacity

KW/h

50HZ

749.9

878.5

991.1

815.8

1035.4

1287.8

1499.8

X1000Kcal

644.9

755.5

852.3

701.6

890.4

1107.5

1289.8

Temperature range

5℃-15℃/25℃-30℃

Power supply

3N-380V/50Hz


Compressor


Type

Semi-hermetic screw


Quantity

1

1

1

2

2

2

2


Rated power

154.0

181.4

204.9

175.0

214.4

270.0

308.0


Rated current/A

267.3

317.4

357.7

308.8

370.0

465.6

534.6


Energy saving

0.25%-50%,75%-100%


Refrigerant


Type

R22

Charge Quantity (kg)

160.0

184.0

208.0

96*2

120*2

144*2

160*2


Throttle method

Thermal expansion valve


Condenser


Form

Shell and tube condenser


Amount of water M3/h

155.5

182.3

205.7

170.4

215.0

267.9

310.9


Inlet and outlet water size

DN150

DN150

DN200

DN150

DN200

DN200

DN200


Evaporator


Form

Shell and-tube evaporator


Amount of water M3/h

129.0

151.1

170.5

148.3

178.1

221.5

258.0


Inlet and outlet water size

DN150

DN150

DN200

DN150

DN200

DN200

DN200


Machine size

L/mm

3600

3600

3600

3200

3400

3600

3600

W/mm

1600

1600

1600

1700

1700

1700

1800

H/mm

1700

1700

1700

1850

1850

1850

1800


Unit weight

KG

3200

3450

3700

3500

4000

4500

5000

Product Display

MK-930WS 991.1KW Water-Cooled Screw Chiller - 3N-380V/50Hz Industrial Cooling System​

MK-930WS 991.1KW Water-Cooled Screw Chiller - 3N-380V/50Hz Industrial Cooling System​

MK-930WS 991.1KW Water-Cooled Screw Chiller - 3N-380V/50Hz Industrial Cooling System​
