IP55 Air Conditioner Cooling Outdoor Battery Cabinets
IP55 Air Conditioner Cooling Outdoor Battery Cabinets
IP55 Air Conditioner Cooling Outdoor Battery Cabinets
IP55 Air Conditioner Cooling Outdoor Battery Cabinets
IP55 Air Conditioner Cooling Outdoor Battery Cabinets
IP55 Air Conditioner Cooling Outdoor Battery Cabinets
IP55 Air Conditioner Cooling Outdoor Battery Cabinets
IP55 Air Conditioner Cooling Outdoor Battery Cabinets
Specifications
Brand Name :
Langji
Model Number :
OBC1060-1
Certification :
CE/ISO14001/ISO9001/3C/SGS
Place of Origin :
China suzhou
MOQ :
1
Price :
$ 300-1000 set
Payment Terms :
T/T, L/C
Supply Ability :
100000 sets per Year
Delivery Time :
20-25 working days
Packaging Details :
wooden pallet+Wooden case
Material :
Galvanized steel
Color :
RAL7035 powder coated painting
Product name :
Outdoor battery cabinet
Loading weight :
500kgs per shelf
Cooling system :
600W air conditioner
IP Grade :
IP55
Lock system :
4-point security
Dimension :
900mm*1210mm*2150mm
Description

IP55 air conditioner cooling outdoor battery cabinet

1. Description of outdoor battery cabinet

Outdoor battery cabinet is designed to house a variety of batteries, they provide protection from vandalism, dust, rain, snow and dripping water. The cabinet air conditioner is installed on cabinet to keep a stable temperature inside cabinet so as to increase service life and stability of battery.

2. Data Sheet

Product Name Outdoor Cabinet for Lead battery
Specifications OBC1060-1
48v 1000AH AGM Battery Cabinet
Installation Assembled
Cooling System Air conditioning refrigeration
Cooling capacity: 600w, DC48V
Working temperature range -40℃——+55℃
Storage temperature range -25℃----+55℃
Transportation temperature range -45℃---+70℃
Relative humidity range -45℃---+70℃
Pressure range 5%---100%
Pressure range 62Kpa---101Kpa(Altitude Range:0m---5000m)
The intensity radiation 1120*(1+10%)W/㎡
Size 900mm*1210mm*2150mm

3. Product Advantage

· Sandwich panel construction

· Attractive powder coat finish

· Anti-theft four-point outdoor cabinet lock, excellent keyhole protection device

· IP55 cabinet, walls and roof in double steel with high quality insulation

· Battery load: 500kgs per shelve

· High performance Air-conditioning unit for heat removal

· Door stopper to hold door open at service

· Pass earthquake intensity 8 anti-seismic performance test

· Support custom-made

4. Application

· Telecommunication

· Wireless/Broadband

· Base station

· Solar based installations

· Wireless cell sites & switches

· Transmission terminals

· Data and Control

· Transportation

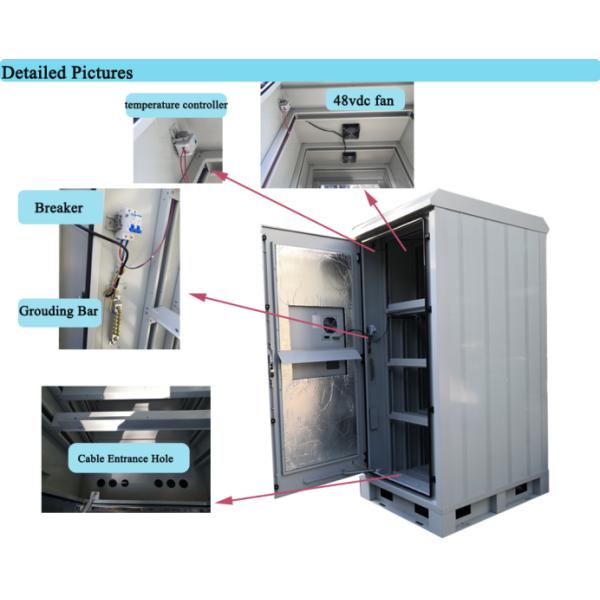

5. Product details

IP55 Air Conditioner Cooling Outdoor Battery Cabinets


6. Company profile

IP55 Air Conditioner Cooling Outdoor Battery Cabinets IP55 Air Conditioner Cooling Outdoor Battery Cabinets
IP55 Air Conditioner Cooling Outdoor Battery Cabinets IP55 Air Conditioner Cooling Outdoor Battery Cabinets

7. Related Product

IP55 Air Conditioner Cooling Outdoor Battery Cabinets

8. Packaging&Delivery

IP55 Air Conditioner Cooling Outdoor Battery Cabinets
