40U Outdoor Telecom Cabinet , outdoor 19 inch rack cabinet With Air Conditioner
40U Outdoor Telecom Cabinet , outdoor 19 inch rack cabinet With Air Conditioner
Specifications
Brand Name :
Langji
Model Number :
OIC2100-AC1500
Certification :
ISO9001, ISO14001 CE, 3C, IP55
Place of Origin :
China
MOQ :
1 pc
Price :
USD 200~500/unit
Payment Terms :
T/T, Western Union, L/C,PayPal
Supply Ability :
1500 pcs / month
Delivery Time :
15~25 working days
Packaging Details :
Wooden case with pallet or just export pallet
Cooling system :
AC/TEC/Hex
Warranty :
1 Year
Structure :
front door
Weight :
240kg
Surface finish :
Powder Coating
Style :
air conditioner outdoor cabinet
Ip rating :
IP55
Form of sale :
OEM/ODM
Description

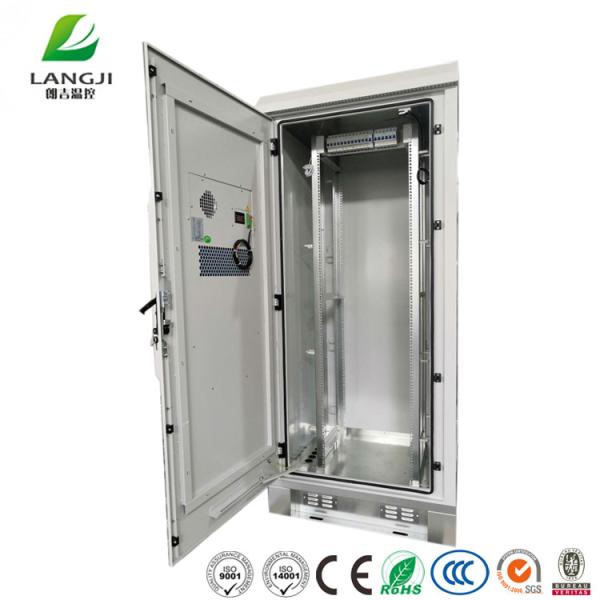

19 Inch Rack IP55 40U Outdoor Integrated Cabinet Telecom Enclosure with AC Air Conditioner

Protect name Outdoor Telecom Integrated Cabinet
External dimension H*W*D 2100*1900*900mm
Internal dimension H*W*D 1800*1800*800mm,internal useful space is 40U.
Brand name Langji
Material Double wall 1.0mm thickness galvanized steel,with 50mm Eheat insulation.
Surface Finish Powder coated in RAL7035 grey colour
Ingress Protection IP55
Security design Embedded door, embedded hinges, 4-point security lock
Door One front door
Cable entry method Cable entries from the bottom of the cabinet
Cable management Plastic cable rings on the side of each 19 inch rail.
Grounding protection Grounding cooper bar
Structure Assembled sandwich structure
Layout Two compartments,upside compartment is for equipments installation,downside compartment is for batteries storage.
Equipment Installation Method 19'' inch or 23'' inch rack
Lead acid battery installation Method One or two Battery shelves on the bottom,each shelf can load 500KG weight.
Cabinet cooling Option 1:AC or DC power cabinet air conditioner Option 2:Heat plate exchanger Option 3:TEC cooler
MOQ 1 unit
Warranty 1 Year
Payment T/T,L/C,Western Union,PayPal
Delivery time 15~25 working days

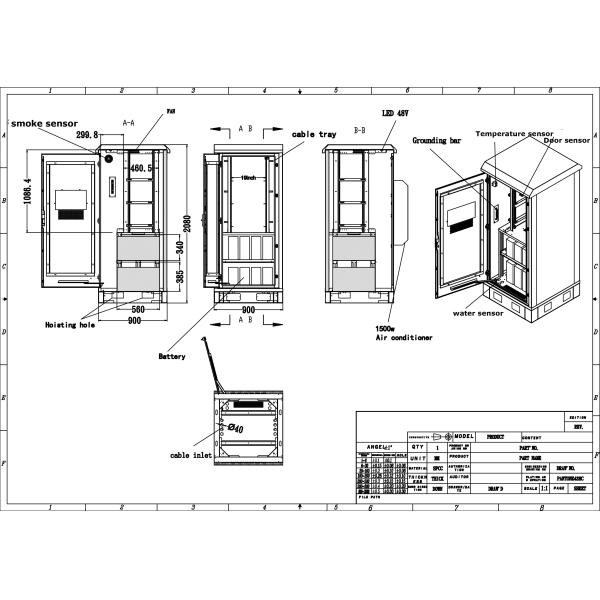

Cabinet drawings:

40U Outdoor Telecom Cabinet , outdoor 19 inch rack cabinet With Air Conditioner

Application:

40U Outdoor Telecom Cabinet , outdoor 19 inch rack cabinet With Air Conditioner

Our Exhibitions:

40U Outdoor Telecom Cabinet , outdoor 19 inch rack cabinet With Air Conditioner40U Outdoor Telecom Cabinet , outdoor 19 inch rack cabinet With Air Conditioner
