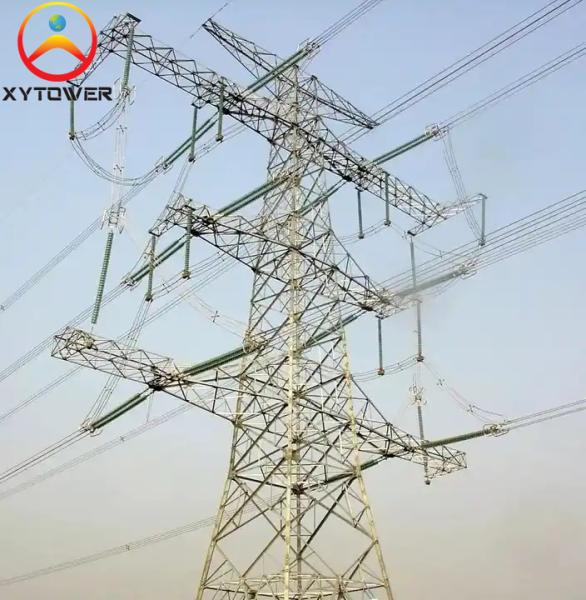

Hot Sale 500KV Multi-circuit Angular Lattice Electrical Transmission Line Steel Tower

Specifications

Place of Origin :

Sichuan, China

Brand Name :

XYTOWER

Model Number :

XY-ET-1000

Rated Voltage :

10kV-500kV

Rated Current :

According to wire thickness

Product Name :

Transmission line steel tower

Application :

Electric Power Transmission

Certificate :

ISO9001:2008

Welding Standard :

AWSD 1.1

Surface Treatment :

Hot Dip Galvanized

Galvanization Standard :

ASTM A123

Warranty Period :

30 years

Power Capacity :

10kV-500kV

Color :

Customized

Description

Product Features: 1.Factory price hot-dip galvanized Electrical Power Line Steel Tower Electricity Distribution Equipment 2.Materials generally use Q255B/Q355B.Robust quality, suitable for all areas 3.The transmission tower is mainly made of angle steel and steel plate. Transmission towers are used to transport electricity. Our company has advanced automation equipments and experienced operators, which guarantees the quality and craftsmanship of the transmission tower.

For power transmission towers in various situations, you are welcome to come for customized consultation, professional design team and one-stop service are provided!

We need customers to provide the following basic parameters: wind speed, voltage level, line return speed, conductor size and span

Myanmar-11kV River crossing Towers

Myanmar-35kV River crossing Towers

Nicaragua-138kV transmission tower

Iraqi-220kv Electric Power Tower

Myanmar-110kV Transmission Towers

Pakistan -110kv transmission tower

Product Name	transmission tower
Voltage Grade	10kV,35kV,66kV,110kV,132kV,220kV,330kV,500kV
Raw Material	Q235B/Q355B/Q420B
Surface Treatment	Hot dip galvanized
Galvanized Thickness	Average layer thickness 86um
Painting	Customized
Manufacturing Standard	GB/T2694-2018
Galvanizing Standard	ISO1461
Raw Material Standards	GB/T700-2006, ISO630-1995, GB/T1591-2018;GB/T706-2016;
Fastener Standard	GB/T5782-2000. ISO4014-1999
EU Standard	CE : EN10025
American Standard	ASTM A6-2014

XYTOWER is a company specialising in manufacturing various galvanized steel structures including Lattice Angle Tower, Steel Tube Tower, Substation Structure,telecommunication Tower，RoofTop Tower, and Power Transmission Bracket used for transmission lines up to 500kV.

XYTOWER focus on the production of hot dip galvanized steel towers for 15+ years, have own factories and production lines, with an annual product of 30000 tons, sufficient supply capacity and rich export experience！

The 10kV-500kV angle lattice steel tower designed and processed by the company have passed the type test (tower structure load test) at one time. Our goal is to strive to provide customers with satisfactory products and services.

After assembly & test, the next step will be carried out: hot dip galvanizing, which aims at beauty, rust prevention and prolonging the service life of the steel tower.
The company has own galvanizing plant, professional galvanizing team, experienced galvanizing teachers for guidance, and processing in strict accordance with ISO1461 galvanizing standard.
The following are our galvanizing parameters for reference:

Standard	Galvanized standard: ISO:1461-2002
Item	Thickness of zinc coating
Standard and requirement	≧86μm
Strength of adhesion	Corrosion by CuSo4
Zinc coat not be stripped and raised by hammering	4 times

1.Q:Are you a factory or a trading company
A:we are a factory founded in 2008.

2.Q:What kind of products you factory manufacture？
A;transmission tower，telecom tower，monopole，substation structure，steel fittings etc.

3.Q:Your export year？and which country you have been exported？
A:Started exporting in 2008, with rich experience in exporting to more than 40 countries, including Malaysia, Myanmar, Timor-Leste, Panama, Nicaragua, Laos, Mongolia, the United States, Fiji, Congo, and so on.

4.Q:Do you accept foreign standard materials？
A:Yes,most products will be insteaded of equivalent chinese standard，and we also accept purchasing foreign standard materials to manufacture.

5.Q:What is the nearest port form your country.
A:Sea port ：Chongqing
Railway port：Chengdu-Qinzhou port.

6.Q:Do you accept L/C.
A:Yes,accept.
