Specifications
Brand Name :
Jiayao
Model Number :
Monopole Tower
Certification :
ISO9001:2008 COC
Place of Origin :
China
MOQ :
4 Tons
Price :
US$1600,1-100Tons;US$1000,>=100 Tons
Payment Terms :
L/C, T/T
Supply Ability :
500 tons per month
Delivery Time :
15 Days
Packaging Details :
Packed In Wooden Boxes Or Bundled With Galvanized Sheets
Standard :
ISO9001:2008
Material :
Q345B/A572
Product name :
Hot Dip Galvanized Monopole Tower 5G Wifi Telecom Rooftop Communication Tower
Height :
5-85M
Wind Speed :
>=60m/s
Lifetime :
More than 25 Years
Design Code :
ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1
Structure :
Monopole Tower
Color :
customize
Supply Type :
manufacturer
Antenna Brackets :
2-4 pcs
Topdiameter :
0.6 meters
Application :
Cellular Network, Radio Transmission
Supply Sytle :
Manufacturer
Shape :
single tube
Surface Treatment :
Hot galvanized
Supply Type :
manufacturer
Hod Surface Treatment :
Hot Dip Galvanizing
Antenna Pole :
3-10
Installationmethod :
Bolted Assembly
Description

JIAYAO CO.,LTD

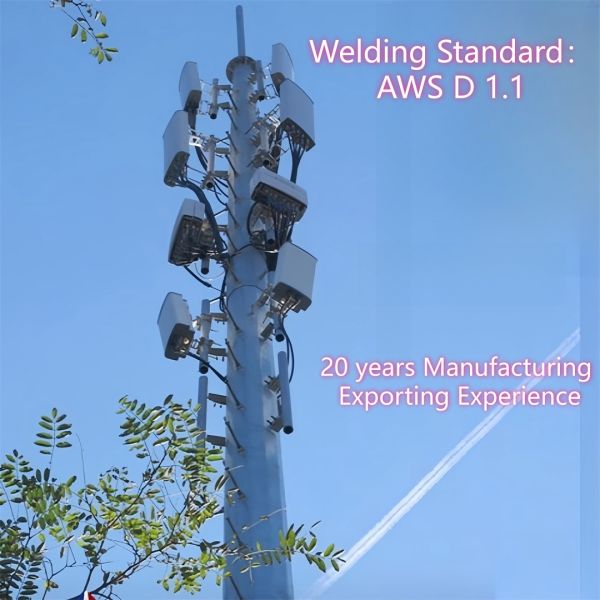

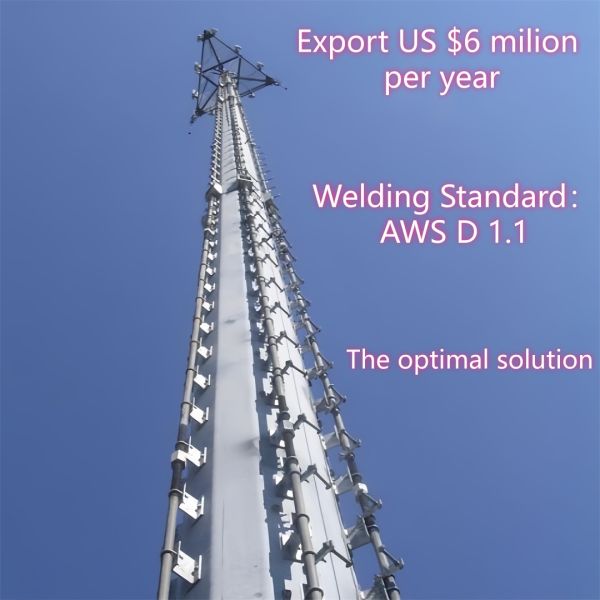

A monopole telecom tower (often called a telecom monopole) is a single-shaft, self-supporting structure tailored for urban and densely populated areas, defined by its compact cylindrical or polygonal shape. Unlike open-truss lattice towers, this tower features a solid/semi-solid single shaft—making it visually unobtrusive and ideal for space-constrained, aesthetic-sensitive locations.

Product Description

1.key Details:
Place of Origin: Hebei, China (Mainland) ; Brand Name: Jaoyao or OEM ; Model Number: Telecom Tower
Surface treatment: Hot Dip Galvanizied or painted.
2.Packaging & Delivery:
Packaging Details: Telecom tower will be bundled by Galvanized strapping as per client's requirements.
Deliver:Shipped in 20 days after payment from Tianjin port
Tower members: One steel tower is separated into several bundles.
Bolts: Packing material is robust nylon bag or steel drum.

3. Technical Data
Design
1. Design Code

ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1
Structure Steel
2. Grade Mild Steel High Tensile Steel
GB/T 700:Q235B, Q235C,Q235D

GB/T1591:Q355B, Q355C,Q355D
ASTM A36 ASTM A572 Gr50
EN10025: S235JR, S235J0,S235J2 EN10025: S355JR, S355J0,S355J2
3. Design Wind Speed Up to 250 km/h
4. Allowable deflection 0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa) 360~510 470~630
6. Yield strength (t≤16mm) (Mpa) 355 235
7. Elongation (%) 20 24
8. Impact strength KV (J) 27(20°C)---Q235B(S235JR) 27(20°C)---Q345B(S355JR)
27(0°C)---Q235C(S235J0) 27(0°C)---Q345C(S355J0)
27(-20°C)---Q235D(S235J2) 27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts ISO 898-1
10.2 Nuts ISO 898-2
10.3 Washers ISO 6507-1
11. Standards for Dimensions
11.1 Bolts DIN7990, DIN931, DIN933
11.2 Nuts ISO4032, ISO4034
11.3 Washers DIN7989, DIN127B, ISO7091
Welding
12. Method CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard AWS D1.1
Marking
14. Method of marking of the members Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts ISO 1461 or ASTM A153
Test
17. Factory test Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending,
Preece test,Hammer test
Capacity
18. Maximum Production Capacity 50,000 TON per annum

Core Structural & Design Features

  • Single-shaft shape: Typically rolled-steel cylindrical (or welded polygonal) shafts, with diameters ranging 0.5–2m (scaled by tower height).

  • Height range: 10–60m (customizable for 5G microstations or urban communication hubs).

  • Integrated components: Built-in internal climbing ladders (with fall-arrest systems), external antenna brackets, and optional camouflage (e.g., billboard wraps).

  • Tapered design: Slightly narrower at the top to optimize wind load resistance (suitable for urban wind conditions up to 180km/h).

⇔What is the main body of monopole tower?

Monopole Tower telecom tower constructed from mild and high tensile steel grades with EN 1991-1-4 & EN 1993-3-1 design code for performance

⇔What is the Bottom Flange, Ladder and Platform of monopole tower?

Monopole Tower telecom tower constructed from mild and high tensile steel grades with EN 1991-1-4 & EN 1993-3-1 design code for performance

⇔What is the main body of monopole tower after Hot Dip Galvanized?

Monopole Tower telecom tower constructed from mild and high tensile steel grades with EN 1991-1-4 & EN 1993-3-1 design code for performance

Please Click Here  For More Information!!!

Production Process

Monopole Tower telecom tower constructed from mild and high tensile steel grades with EN 1991-1-4 & EN 1993-3-1 design code for performance

Gular customers

Monopole Tower telecom tower constructed from mild and high tensile steel grades with EN 1991-1-4 & EN 1993-3-1 design code for performance

Certifications

Monopole Tower telecom tower constructed from mild and high tensile steel grades with EN 1991-1-4 & EN 1993-3-1 design code for performance

Our Services

Monopole Tower telecom tower constructed from mild and high tensile steel grades with EN 1991-1-4 & EN 1993-3-1 design code for performance
