TEIRacing 6 Piston SR6 Calipers 17 18 Inch Wheel Big Brake Calipers Kit For Tank 300 Land Cruiser Formula Leopard 5 Wrangler

Small wheels, large calipers, easy to control off-road vehicles

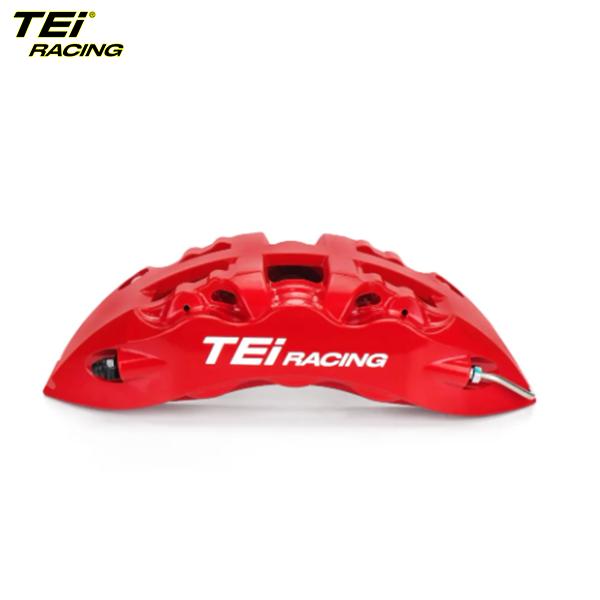

SR6 front wheel big six-piston

Bigger piston, stronger parameters, better adaptation

Caliper design
Forging process

Preferred aviation aluminum alloy, high strength, high temperature resistance

Lightweight, high strength

The caliper is designed with a large shape, lightweight hollow, and a longitudinal reinforcement rib design for racing

Oversized six-piston off-road brakes

Piston diameter: 41.3/38/31.8
Seal ring hardness: 85°-90°
High temperature resistance: 200°-220°

brake disc design

New disc with 72 ventilation slots

G3500 high-carbon alloy brake discs are more heat-resistant and wear-resistant than ordinary metals. They have a larger surface area than ordinary brake discs, providing better heat dissipation while being lighter.

Patented anti-loosening head, stable and strong

Newly designed head design, nationally patented.
Stable performance, reduced vibration, and more stable off-road vehicle.

1 Full kit included

2 x Calipers

2 x Discs

2 x Brake Lines

4 x Brake Pads

2 x Adapters( Brackets)

Hardwares

Difficulty Level:

Mechanical expertise or professional installation required.

Calipers Color for Optional

Brake Pads
Material: Ceramic Graphite
Heat Resistant:0-500C
Friction Coefficient:0.49

Rotor (Disc+Center Hub)
craft: Forged
Plane Bounce:<0.03mm
Material:
1,Disc:High Carbon Iron
2,Center Hub: Aerial 6061 Aluminum Alloy

ROTOR SPECS:

2-piece floating rotors with 6061-T6 aerospace grade alloy hat.

Fully balanced from the factory
Rotor ring in FC30 cast iron with anti corrosion coating.
Drilled / slotted / drilled and slotted rotor ring available at no extra cost.

(We advise drilled for street and slotted only for track and race applications)
Curved vanes ventilation for optimal cooling.
Full-floating rotors use floating hardware with anti-rattle system (removable and rebuildable).
It provides a lower tendency to warp, less drag and wear as the rotor ring centers itself with the pads.
Available for 330mm rotors and bigger only.
The semi-floating rotor uses standard bolts instead and the rotor is fixed on the hat.
Custom rotor hat anodized color

Brackets/Adapters
Material: Aerial 6061 Aliminum Alloy
Craft: CNC

Brake Hose/Brake line

Material: Inside teflon, Braided Stainless steel mid layer ,Protective outer PVC weather proof shell

Our brake kit is supplied with a Goodridge Style Brake line kit with stainless lines; consisting of a PTFE inner and stainless steel braided outer to eliminate the spongy feel of original rubber hoses, provide superior resistance to corrosion, and offer consistent braking performance.

WARRANTY:

10 years on calipers casting, caliper parts, and seals.
2 years on mounting hardware and brackets.
Lifetime Warranty on brake lines. DOT approved
10,000km / 3 months on rotors.
