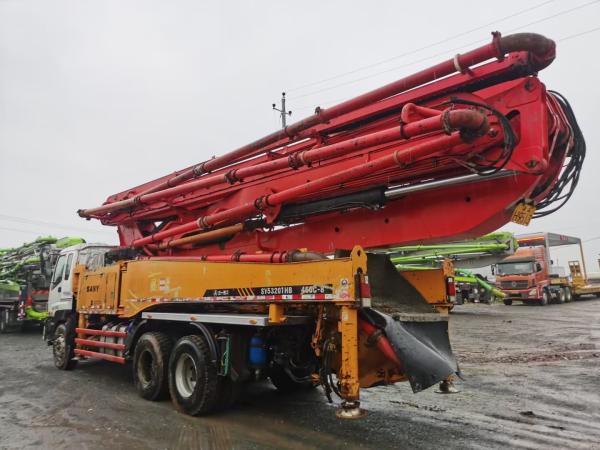

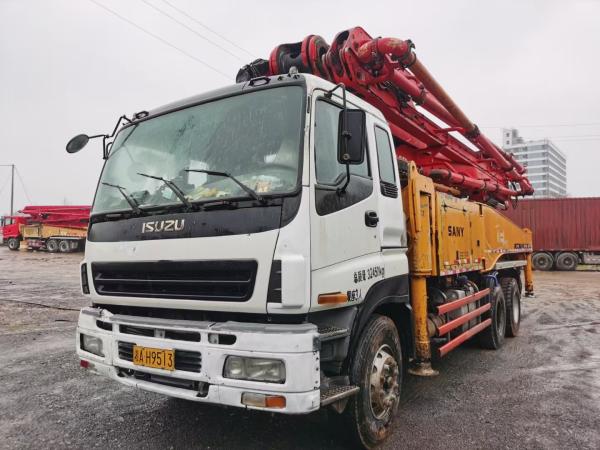

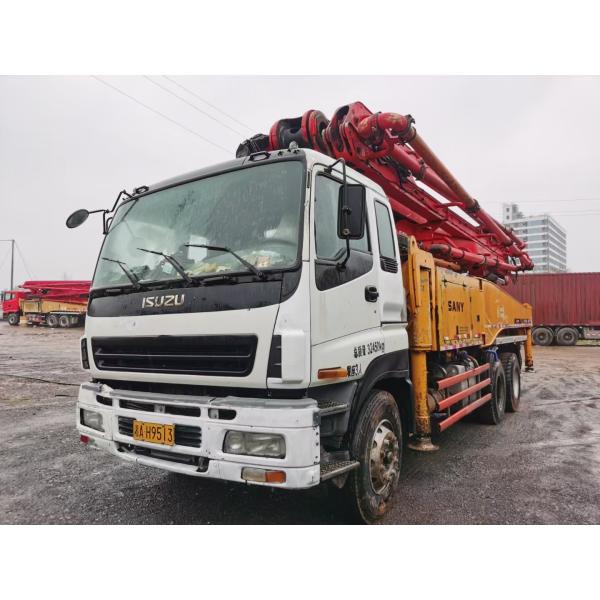

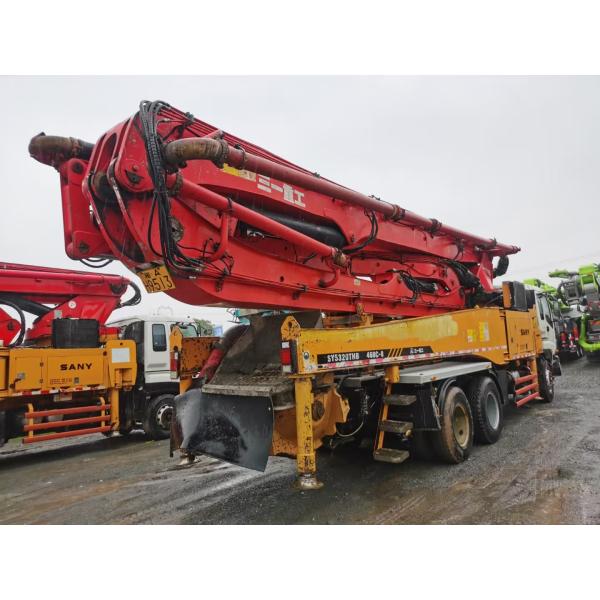

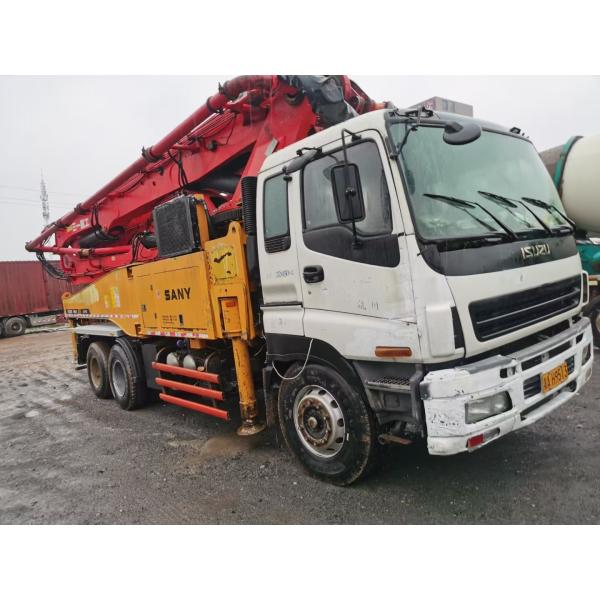

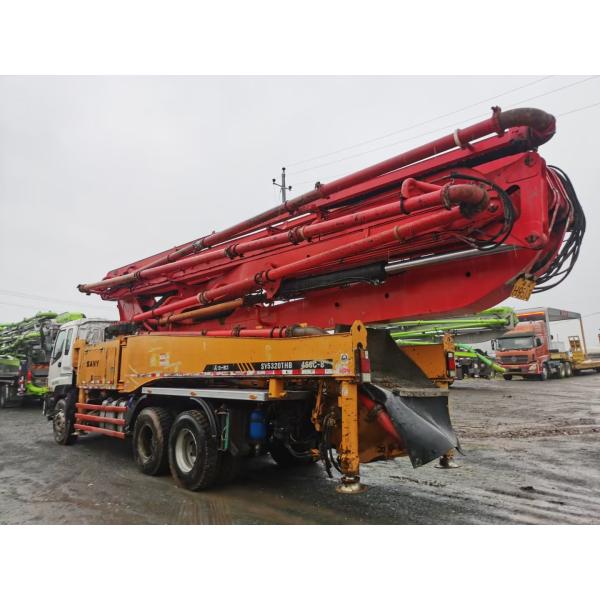

USED SANY 49m Concrete Pump Truck 2012 Boom Pump With ISUZU Chassis
USED SANY 49m Concrete Pump Truck 2012 Boom Pump With ISUZU Chassis
USED SANY 49m Concrete Pump Truck 2012 Boom Pump With ISUZU Chassis
USED SANY 49m Concrete Pump Truck 2012 Boom Pump With ISUZU Chassis
USED SANY 49m Concrete Pump Truck 2012 Boom Pump With ISUZU Chassis
USED SANY 49m Concrete Pump Truck 2012 Boom Pump With ISUZU Chassis
USED SANY 49m Concrete Pump Truck 2012 Boom Pump With ISUZU Chassis
USED SANY 49m Concrete Pump Truck 2012 Boom Pump With ISUZU Chassis
Specifications
Brand Name :
SANY
Place of Origin :
China
MOQ :
1
Price :
USD40000 - USD80000 EXW
Payment Terms :
L/C,T/T
Delivery Time :
5-8 working days
Packaging Details :
Bulk Cargo Shipping
Model :
SANY SY5320THB
Emission Standard :
National III
Fuel Tank Capacity :
380L
System Pressure :
32MPa
Max. Speed :
80km/h
Delivery Pipe Diameter :
125mm
Description

Key Features & Configurations

Category

Specification

Details

Model

SANY SY5320THB

49m C8 Series Truck-Mounted Concrete Pump

Emission Standard: National III

Fuel Tank Capacity: 380L

Pumping Unit

Max. Theoretical Output:

- Low Pressure: 170m³/h
- High Pressure: 120m³/h

Max. Theoretical Pressure:

- Low Pressure: 8.3MPa
- High Pressure: 12MPa

Max. Pumping Strokes:

- Low Pressure: 29 times/min
- High Pressure: 19 times/min

Delivery Cylinder:

- Bore: 260mm
- Stroke: 1900mm

Boom System

Vertical Reach: 48.5m

Horizontal Reach: 43.5m

Vertical Depth: 30.8m

Min. Unfolding Height: 13.9m

Boom Sections: 5

Turntable Rotation: ±360°

Front Outrigger Spread: 9300mm

Rear Outrigger Spread: 9620mm

Hydraulic System

Type: Open Circuit

System Pressure: 32MPa

Fuel Tank Capacity: 680L

Water Tank Capacity: 620L

Delivery Pipe Diameter: 125mm

End Hose Length: 3m (125mm Diameter)

Performance

Max. Speed: 80km/h

Braking Distance (30km/h): ≤10m

Energy-Saving: Advanced System

Safety: Anti-Swing, Fault Self-Diagnosis

Dimensions

Overall Length: 11995mm

Overall Width: 2500mm

Overall Height: 3990mm

Curb Weight: 32450kg

Well-maintained, fully functional, and ready for immediate deployment

Photo Details

USED SANY 49m Concrete Pump Truck 2012 Boom Pump With ISUZU Chassis

USED SANY 49m Concrete Pump Truck 2012 Boom Pump With ISUZU Chassis

USED SANY 49m Concrete Pump Truck 2012 Boom Pump With ISUZU Chassis

USED SANY 49m Concrete Pump Truck 2012 Boom Pump With ISUZU Chassis

USED SANY 49m Concrete Pump Truck 2012 Boom Pump With ISUZU Chassis

Company Profile

USED SANY 49m Concrete Pump Truck 2012 Boom Pump With ISUZU Chassis

FAQ

1:What are your main export construction machineries?
A:Used concrete mixer truck,Used trailer concrete pump,Used concrete line pump,Used Truck mounted concrete pump,Concrete batching plant,used cranes,used excavators,used road machinery, used piling machinery and so on.Ranging second-hand original machineries to refurbished machineries .

2:Is your company a factory or a trader?
A:We are re-manufacturing factory with a big used construction machinery trading platform.we specialize in construction machinery wholesale and concrete machinery re-manufacturing for more than 13 years.

3:What are the advantages of re-manufacturing machineries and what quality of your refurbished machineries?
A:The big advantage is price of used machine,value of new machine.We set the highest maintenance and re-manufacturing standard system,strictly inspect and repair according to the standard,Our each re-manufacturing will go through 14 processes from admission test to final inspection to make sure the best quality.

4:How do I know the condition of the original used or re-manufacturing concrete pump truck?
A: We will provide a video of the specifications and the test of the pump truck before we ship to you.

5:What is the minimum order quantity for your used machinery?
A: The MOQ is 1 unit.
