USED SANY 43m Concrete Pump Truck Concrete Construction Machine
USED SANY 43m Concrete Pump Truck Concrete Construction Machine
USED SANY 43m Concrete Pump Truck Concrete Construction Machine
USED SANY 43m Concrete Pump Truck Concrete Construction Machine
USED SANY 43m Concrete Pump Truck Concrete Construction Machine
USED SANY 43m Concrete Pump Truck Concrete Construction Machine
USED SANY 43m Concrete Pump Truck Concrete Construction Machine
USED SANY 43m Concrete Pump Truck Concrete Construction Machine
Specifications
Brand Name :
SANY
Place of Origin :
China
MOQ :
1
Price :
USD30000 - USD120000 EXW
Payment Terms :
L/C,T/T
Delivery Time :
in one week
Packaging Details :
Bulk Cargo Shipping
Chassis Brand :
SANY
Overall Length :
11,705 mm
Emission Standard :
China V
Maximum Speed :
85 km/h
Engine Displacement :
8.7 L
Fuel Tank Capacity :
400 L
Description

Key Features & Configurations

Category

Parameter

Specification

Vehicle Dimensions

Overall Length

11,705 mm

Overall Width

2,550 mm

Overall Height

3,970 mm

Total Weight

30,000 kg

Boom Parameters

Vertical Height

42.5 m

Horizontal Length

37.7 m

Vertical Depth

30.2 m

Minimum Deployment Height

11 m

Section 1 Length & Rotation Angle

8,112 mm, 89°

Section 2 Length & Rotation Angle

6,300 mm, 180°

Section 3 Length & Rotation Angle

6,924 mm, 180°

Section 4 Length & Rotation Angle

8,542 mm, 230°

Section 5 Length & Rotation Angle

8,636 mm, 210°

Turret Rotation Angle

±360°

Pumping System

Theoretical Concrete Output (Low Press.)

120 m³/h

Theoretical Concrete Output (High Press.)

70 m³/h

Theoretical Pumping Pressure (Low Press.)

8 MPa

Theoretical Pumping Pressure (High Press.)

13 MPa

Delivery Cylinder Inner Diameter

230 mm

Delivery Cylinder Stroke

1,600 mm

Hydraulic System Oil Pressure

32 MPa

Delivery Pipe Diameter

125 mm

End Hose Length

3 m

End Hose Diameter

125 mm

Chassis Parameters

Chassis Brand

SANY

Engine Max. Net Power

244 kW / 1,900 rpm

Emission Standard

China V

Fuel Tank Capacity

400 L

Engine Displacement

8.7 L

Maximum Speed

85 km/h

Photo Details

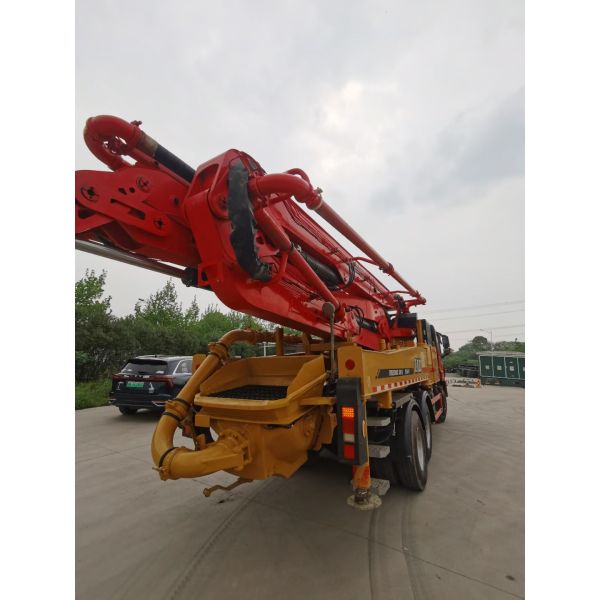

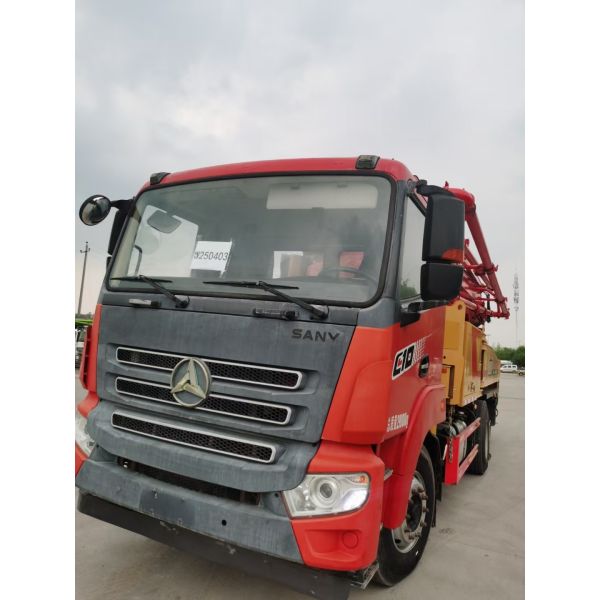

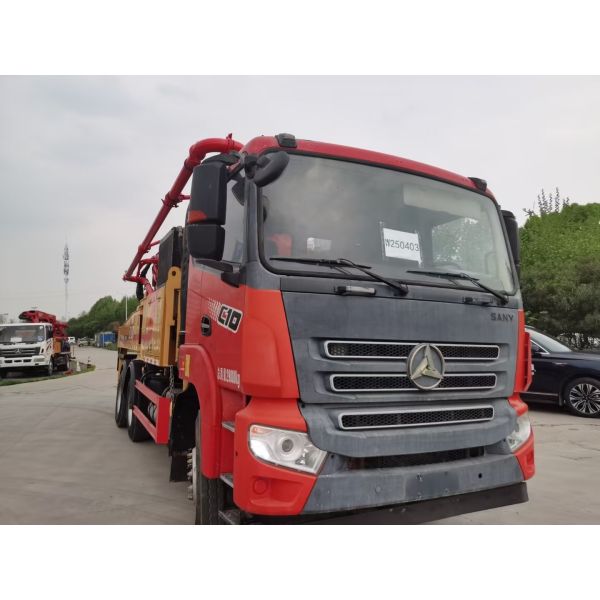

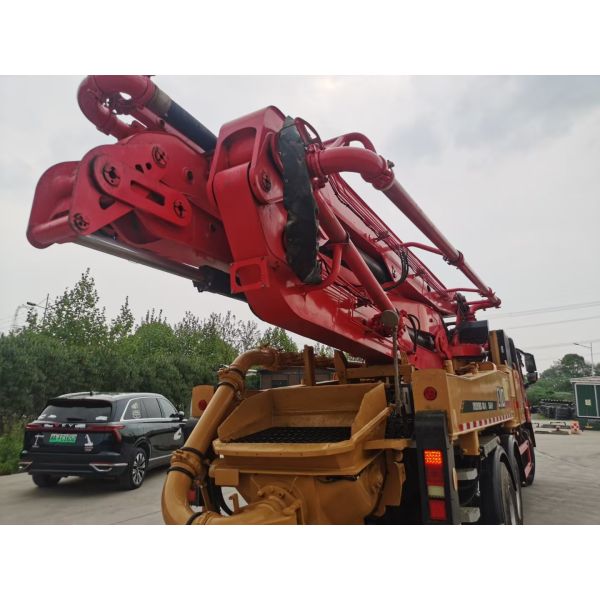

USED SANY 43m Concrete Pump Truck Concrete Construction Machine

USED SANY 43m Concrete Pump Truck Concrete Construction Machine

USED SANY 43m Concrete Pump Truck Concrete Construction Machine

USED SANY 43m Concrete Pump Truck Concrete Construction Machine

Company Profile

USED SANY 43m Concrete Pump Truck Concrete Construction Machine

FAQ

1:What are your main export construction machineries?
A:Used concrete mixer truck,Used trailer concrete pump,Used concrete line pump,Used Truck mounted concrete pump,Concrete batching plant,used cranes,used excavators,used road machinery, used piling machinery and so on.Ranging second-hand original machineries to refurbished machineries .

2:Is your company a factory or a trader?
A:We are re-manufacturing factory with a big used construction machinery trading platform.we specialize in construction machinery wholesale and concrete machinery re-manufacturing for more than 13 years.

3:What are the advantages of re-manufacturing machineries and what quality of your refurbished machineries?
A:The big advantage is price of used machine,value of new machine.We set the highest maintenance and re-manufacturing standard system,strictly inspect and repair according to the standard,Our each re-manufacturing will go through 14 processes from admission test to final inspection to make sure the best quality.

4:How do I know the condition of the original used or re-manufacturing concrete pump truck?
A: We will provide a video of the specifications and the test of the pump truck before we ship to you.

5:What is the minimum order quantity for your used machinery?
A: The MOQ is 1 unit.
