Specifications
Brand Name :
Zoomlion
Model Number :
ZTC300V
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
USD230000 EXW
Payment Terms :
L/C,T/T
Delivery Time :
in two weeks
Packaging Details :
Bulk Cargo Shipping
Material :
Original
Condition :
Used
Color :
Original green
Dimension :
15,900×3,000×3,980
Weight :
54,900
Main boom :
80M
Carrier chsssis :
Multi-axle (5-6axles)
Emission :
Euro V
Horspower :
400-500HP
Application :
Erection of steel structures , Precast concrete ,bridage building ,Heavy equipment handing ,infrastructure projects, wind turbine installation , power plant maintenance
Description

Key Features & Configurations

Parameter

Value

Lifting Capacity

Maximum Rated Total Lifting Capacity (kg)

130,000

Basic Boom Maximum Lifting Moment (kN·m)

5,056

Longest Main Boom Maximum Lifting Moment (kN·m)

2,328

Working Performance

Basic Boom Maximum Lifting Height (m)

15.2

Main Boom Maximum Lifting Height (m)

66.6

Auxiliary Boom Maximum Lifting Height (m)

 100

Rope Speed

Main Winch Single-Rope Maximum Speed (m/min)

115

Auxiliary Winch Single-Rope Maximum Speed (m/min)

75

Operating Speed

Boom Raising Time (s)

85

Boom Extension Time (s)

870

Slewing Speed (r/min)

0.1

Altitude & Mobility

Maximum Operating Altitude (m)

2,000

Maximum Travel Speed (km/h)

75

Maximum Gradeability (%)

40

Dimensions

Minimum Turning Radius (m)

24

Minimum Ground Clearance (mm)

325

Overall Dimensions (L×W×H, mm)

15,900×3,000×3,980

Weight Parameters

Gross Weight in Traveling Condition (kg)

54,900

Curb Weight (kg)

54,705

Front Axle Load (kg)

8,500 + 8,500 + 8,500

Rear Axle Load (kg)

10,600 + 10,600 + 8,200

Outrigger & Boom

Longitudinal Outrigger Span (m)

8.35

Lateral Outrigger Span (m)

Full Extension: 7.80 / Half Extension: 5.3

Tail Swing Radius (mm)

4,800

Main Boom Length Range (m)

14–65.9

Main Boom Elevation Angle (°)

-1.5° to 82°

Auxiliary Boom Length Options (m)

11, 18.6, 26.6 (Optional), 34.6 (Optional)

Auxiliary Boom Installation Angle (°)

0°–30°

Emission & Fuel

Exhaust Emission Standard

Compliant with Regulations

Fuel Consumption per 100 km (L)

85

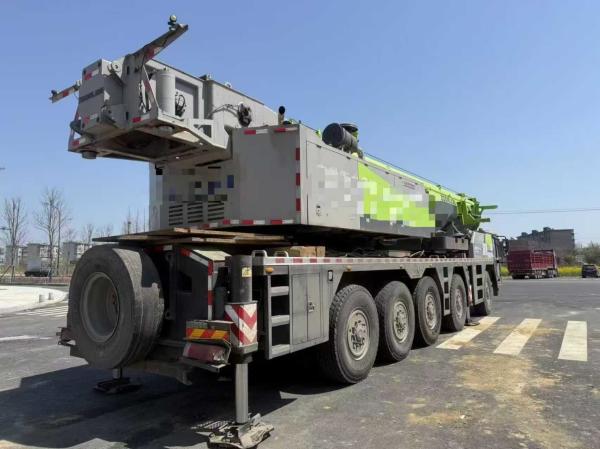

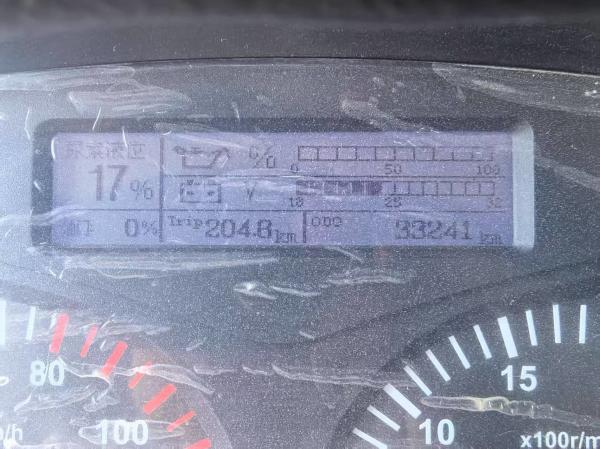

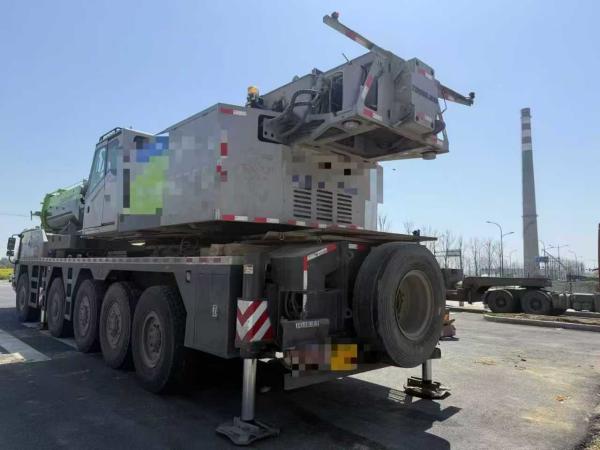

Photo Details

Company Profile

2020 Used Zoomlion 130 ton mobile crane Lifting Equipment Hydraulic Lift Hoist Machinery

FAQ

1:What are your main export construction machineries?
A:Used concrete mixer truck,Used trailer concrete pump,Used concrete line pump,Used Truck mounted concrete pump,Concrete batching plant,used cranes,used excavators,used road machinery, used piling machinery and so on.Ranging second-hand original machineries to refurbished machineries .

2:Is your company a factory or a trader?
A:We are re-manufacturing factory with a big used construction machinery trading platform.we specialize in construction machinery wholesale and concrete machinery re-manufacturing for more than 13 years.

3:What are the advantages of re-manufacturing machineries and what quality of your refurbished machineries?
A:The big advantage is price of used machine,value of new machine.We set the highest maintenance and re-manufacturing standard system,strictly inspect and repair according to the standard,Our each re-manufacturing will go through 14 processes from admission test to final inspection to make sure the best quality.

4:How do I know the condition of the original used or re-manufacturing concrete pump truck?
A: We will provide a video of the specifications and the test of the pump truck before we ship to you.

5:What is the minimum order quantity for your used machinery?
A: The MOQ is 1 unit.
