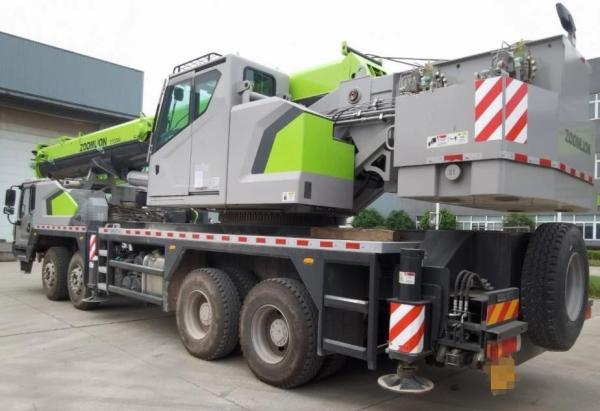

Hydraulic 2022 Zoomilion 50 Ton Truck Crane ZTC500A562 with Professional Certification
Hydraulic 2022 Zoomilion 50 Ton Truck Crane ZTC500A562 with Professional Certification
Hydraulic 2022 Zoomilion 50 Ton Truck Crane ZTC500A562 with Professional Certification
Hydraulic 2022 Zoomilion 50 Ton Truck Crane ZTC500A562 with Professional Certification
Hydraulic 2022 Zoomilion 50 Ton Truck Crane ZTC500A562 with Professional Certification
Hydraulic 2022 Zoomilion 50 Ton Truck Crane ZTC500A562 with Professional Certification
Hydraulic 2022 Zoomilion 50 Ton Truck Crane ZTC500A562 with Professional Certification
Hydraulic 2022 Zoomilion 50 Ton Truck Crane ZTC500A562 with Professional Certification
Hydraulic 2022 Zoomilion 50 Ton Truck Crane ZTC500A562 with Professional Certification
Hydraulic 2022 Zoomilion 50 Ton Truck Crane ZTC500A562 with Professional Certification
Hydraulic 2022 Zoomilion 50 Ton Truck Crane ZTC500A562 with Professional Certification
Hydraulic 2022 Zoomilion 50 Ton Truck Crane ZTC500A562 with Professional Certification
Hydraulic 2022 Zoomilion 50 Ton Truck Crane ZTC500A562 with Professional Certification
Hydraulic 2022 Zoomilion 50 Ton Truck Crane ZTC500A562 with Professional Certification
Hydraulic 2022 Zoomilion 50 Ton Truck Crane ZTC500A562 with Professional Certification
Hydraulic 2022 Zoomilion 50 Ton Truck Crane ZTC500A562 with Professional Certification
Specifications
Brand Name :
Zoomlion
Model Number :
ZTC500A562
Certification :
ISO9001: 2000, CE
Place of Origin :
China
MOQ :
1
Price :
$60000-$100000
Payment Terms :
T/T
Supply Ability :
500pieces/Year
Packaging Details :
Bulk Cargo Shipping
Description
Product Parameters
Parameter Value
Overall Dimensions Length: 13770mm
Width: 2800mm
Height: 3570mm
Wheelbase 1470 + 4105 + 1350mm
Wheel Tread 2304/2304/2075/2075mm
Travelling Weight 42000kg
Axle Load 16000/26000kg
Engine Model D10.38A-40 / SC10E380.1Q4 / WP10.375E41
Rated Power 276/2200kW/(r/min)
279/2200kW/(r/min)
276/2200kW/(r/min)
Rated Torque 1500/1100 - 1600N·m/(r/min)
1500/1300N·m/(r/min)
1480/1200 - 1600N·m/(r/min)
Max. Travelling Speed 80km/h
Min. Diameter of Turning Circle 24m
Min. Diameter of Turning Circle of Boom Head 28.158m
Max Gradeability 40%
Minimum Ground Clearance 327mm
Approach Angle 17°
Departure Angle 11°
Fuel Consumption per Hundred Kilometers 42L
Max. Rated Lifting Capacity 50t
Max. Lifting Moment of Basic Boom 1764kN·m
Max. Lifting Moment of Fully Extended Boom 1182kN·m
Boom Length Main boom: 45.5m
Jib: 16m
Max. Lifting Height 61m
Winch Max. Speed 140m/min
Slewing Max. Speed 2.6r/min


Company Profile
Hydraulic 2022 Zoomilion 50 Ton Truck Crane ZTC500A562 with Professional CertificationHydraulic 2022 Zoomilion 50 Ton Truck Crane ZTC500A562 with Professional CertificationFAQ

1:What are your main export construction machineries?
A:Used concrete mixer truck,Used trailer concrete pump,Used concrete line pump,Used Truck mounted concrete pump,Concrete batching plant,used cranes,used excavators,used road machinery, used piling machinery and so on.Ranging second-hand original machineries to refurbished machineries .

2:Is your company a factory or a trader?
A:We are re-manufacturing factory with a big used construction machinery trading platform.we specialize in construction machinery wholesale and concrete machinery re-manufacturing for more than 13 years.

3:What are the advantages of re-manufacturing machineries and what quality of your refurbished machineries?
A:The big advantage is price of used machine,value of new machine.We set the highest maintenance and re-manufacturing standard system,strictly inspect and repair according to the standard,Our each re-manufacturing will go through 14 processes from admission test to final inspection to make sure the best quality.

4:How do I know the condition of the original used or re-manufacturing concrete pump truck?
A: We will provide a video of the specifications and the test of the pump truck before we ship to you.

5:What is the minimum order quantity for your used machinery?
A: The MOQ is 1 unit.
