2025 3 Axles Concrete Boom Pump Truck Zoomlion 47m Equipped with FAW Chassis
2025 3 Axles Concrete Boom Pump Truck Zoomlion 47m Equipped with FAW Chassis
2025 3 Axles Concrete Boom Pump Truck Zoomlion 47m Equipped with FAW Chassis
2025 3 Axles Concrete Boom Pump Truck Zoomlion 47m Equipped with FAW Chassis
2025 3 Axles Concrete Boom Pump Truck Zoomlion 47m Equipped with FAW Chassis
2025 3 Axles Concrete Boom Pump Truck Zoomlion 47m Equipped with FAW Chassis
2025 3 Axles Concrete Boom Pump Truck Zoomlion 47m Equipped with FAW Chassis
2025 3 Axles Concrete Boom Pump Truck Zoomlion 47m Equipped with FAW Chassis
2025 3 Axles Concrete Boom Pump Truck Zoomlion 47m Equipped with FAW Chassis
2025 3 Axles Concrete Boom Pump Truck Zoomlion 47m Equipped with FAW Chassis
2025 3 Axles Concrete Boom Pump Truck Zoomlion 47m Equipped with FAW Chassis
2025 3 Axles Concrete Boom Pump Truck Zoomlion 47m Equipped with FAW Chassis
Specifications
Brand Name :
Zoomlion
Model Number :
ZLJ5340THBJF 47X-5RZ
Certification :
ISO9001: 2000, CE
Place of Origin :
China
MOQ :
1
Price :
USD 160000
Payment Terms :
T/T
Supply Ability :
10
Delivery Time :
5-10 work days
Packaging Details :
Bulk Cargo Shipping
Power type :
Diesel
Condition :
New
Weight :
32000kg
Dimension(l*w*h) :
12280*2550*3965mm
Color :
Green
Keyword :
concrete pump truck
Chasiss :
FAW
Location :
China
Port :
Shanghai
Concrete Output :
170m3/h
Number Of Axles :
3 Axles
Concrete Pumping Pressure :
8.8Mpa
Cylinder Diameter :
Φ260
Description

2025 New 3 Axles Concrete Boom Pump Truck Zoomlion 47m With FAW Chassis

Highly Reliable

• Professional Supplier for Used Concrete Machine for Over 15 Years
• Original Zoomlion and brand new
• 3 axles, more flexible
• Easy to maintain, wide operating range, low fuel consumption, high efficiency


Technial Parameters:

Maximum theorical output 170m3/h
Maximum outlet pressure of concrete 8.8MPa
Rated working pressure 35MPa
Pumping frequency 25min
Concrete cylinder diameter 260mm
Maximum vertical reach 46.1m
Maximum horizontal reach 41.8m
Maximum depth reach 32.2m
Section numbers 5
Boom type RZ
Pipeline diameter 125mm
Leg span 9310*9280*9400mm

Feature Advantage:


1. High-Efficiency: Good site adaptability (one side support)

2. Energy Saving: Self-adaptive variable power distribution control technolog

3. Intelligence: Full self-diagnosis before, after and during pumping to ensure working safely

4. Robust Structure & Safety

5. Easy maintenance: Advanced easy-maintenance technologies, making maintenance time reduced by 50-75%

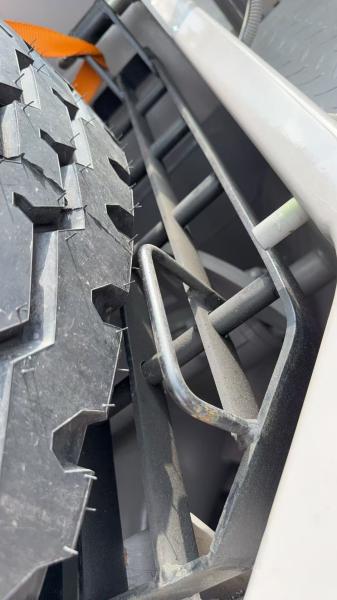

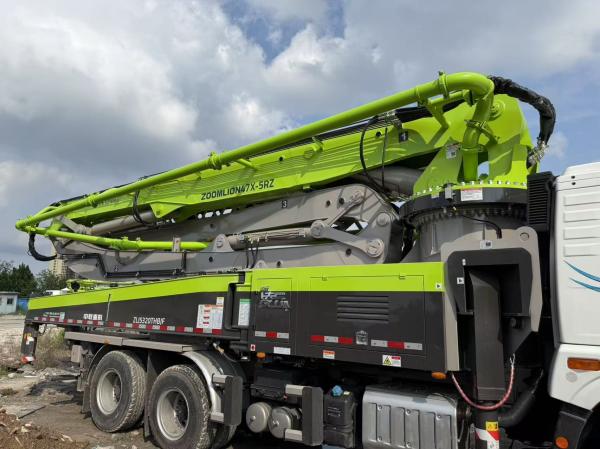

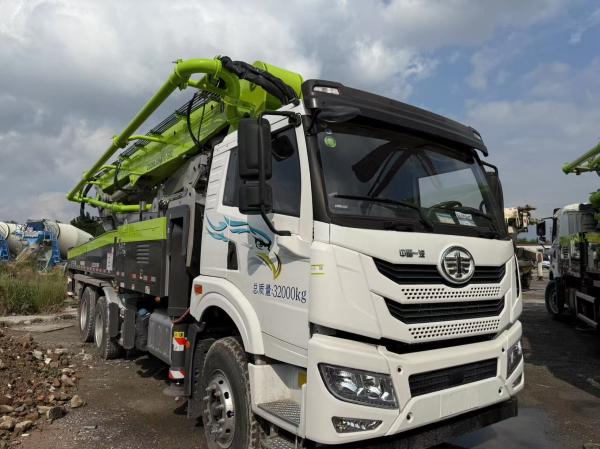

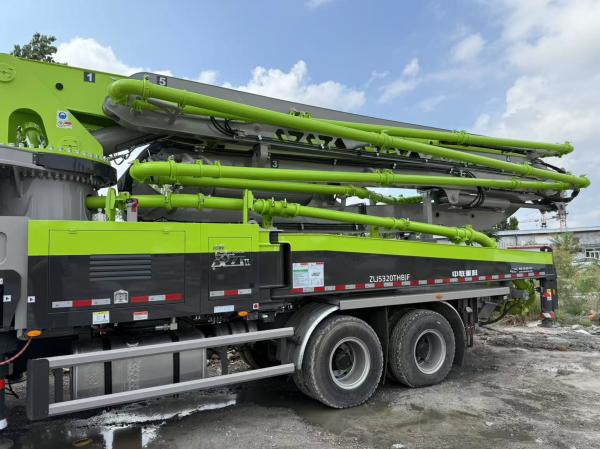

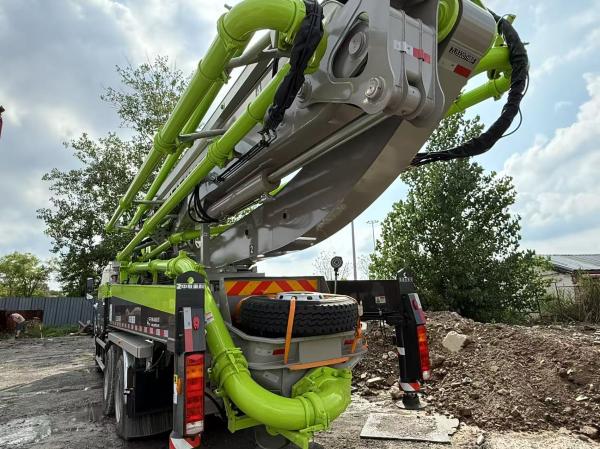

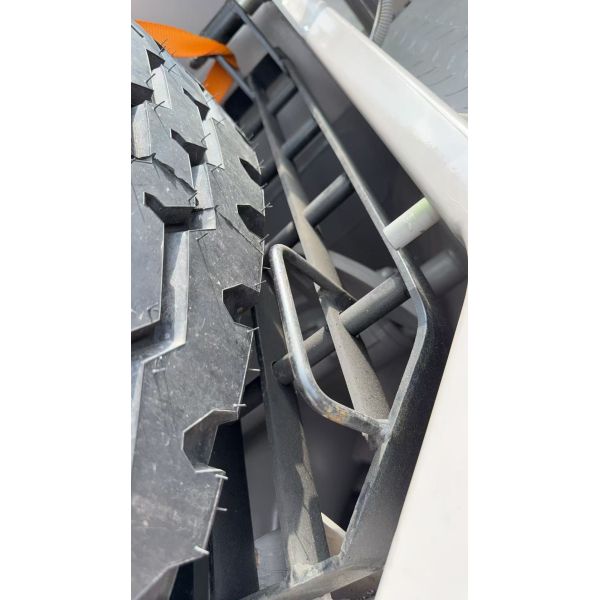

Details photos:

2025 3 Axles Concrete Boom Pump Truck Zoomlion 47m Equipped with FAW Chassis

2025 3 Axles Concrete Boom Pump Truck Zoomlion 47m Equipped with FAW Chassis

2025 3 Axles Concrete Boom Pump Truck Zoomlion 47m Equipped with FAW Chassis

2025 3 Axles Concrete Boom Pump Truck Zoomlion 47m Equipped with FAW Chassis

2025 3 Axles Concrete Boom Pump Truck Zoomlion 47m Equipped with FAW Chassis

2025 3 Axles Concrete Boom Pump Truck Zoomlion 47m Equipped with FAW Chassis
