Specifications
Brand Name :
TECLION
Model Number :
RGM150
Certification :
CE, EAC, ATEX
Place of Origin :
China
MOQ :
1
Price :
Chat Now
Payment Terms :
T/T
Delivery Time :
30 working days
Packaging Details :
plywood case
Housing material :
304SS
Rotor material :
304ss
End cover material :
304ss
Size :
DN150
Flange standard :
PN10
Rotor volume :
5L
Driving type :
chain drive
Sealing type :
air purged seals
Description

Plastic Granule Pneumatic Conveying Anti Shear Stainless Steel Rotary Valve Airlock

Rotary Valve Description:

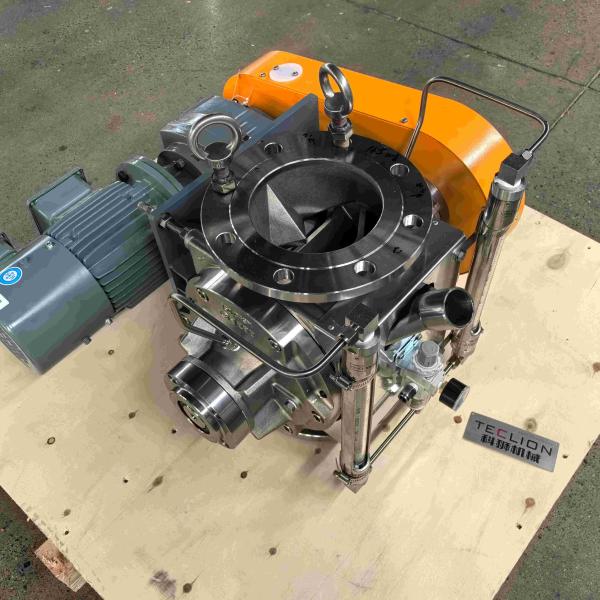

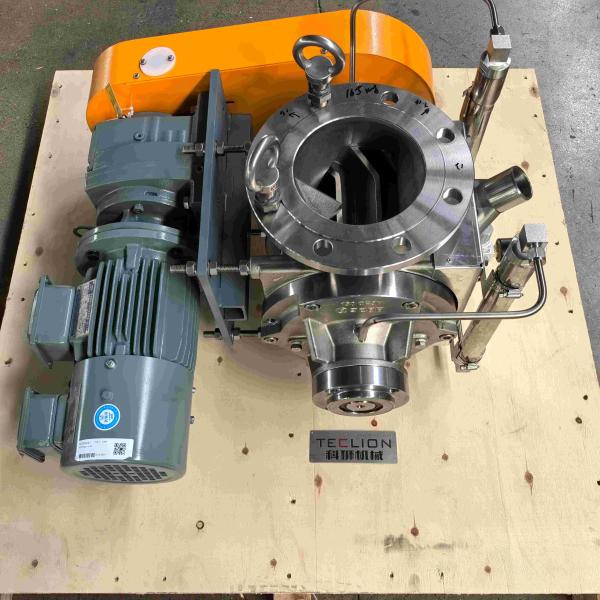

The diameter of the rotary valve in the picture is DN150, the rotor volume is 5L, and the main material is 304 stainless steel. The driving form is chain drive, or it can be changed to direct drive according to customer needs. Select the appropriate power motor and reducer for the rotary valve according to the customer's conveying capacity requirements.

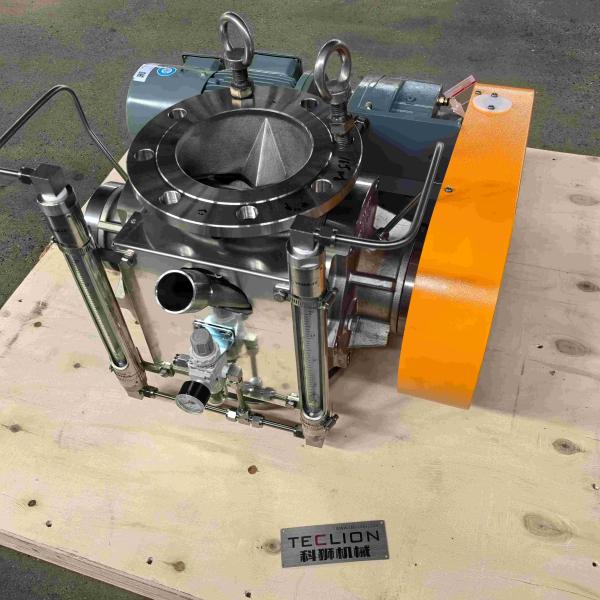

The rotary valve in the picture is equipped with a glass float flowmeter according to customer requirements, connected to a filter pressure regulating valve, which can help customers observe air flow data in real time

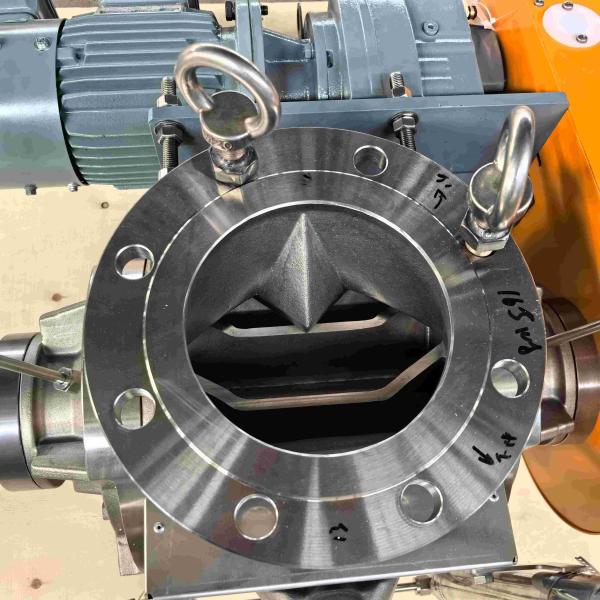

The photo of the feed inlet of the rotary valve shows the anti shear structure "eagle beak design". In addition, the rotor form adopts an anti jamming "V-shaped" rotor. TECLION can recommend the most suitable rotary valve model and configuration according to different working conditions and materials of customers.
