Food Grade Stainless Steel Quick Disassembly Cleaning Rotary Airlock Valve
Food Grade Stainless Steel Quick Disassembly Cleaning Rotary Airlock Valve
Food Grade Stainless Steel Quick Disassembly Cleaning Rotary Airlock Valve
Food Grade Stainless Steel Quick Disassembly Cleaning Rotary Airlock Valve
Food Grade Stainless Steel Quick Disassembly Cleaning Rotary Airlock Valve
Food Grade Stainless Steel Quick Disassembly Cleaning Rotary Airlock Valve
Food Grade Stainless Steel Quick Disassembly Cleaning Rotary Airlock Valve
Food Grade Stainless Steel Quick Disassembly Cleaning Rotary Airlock Valve
Specifications
Brand Name :
TECLION
Model Number :
RDC200
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
Chat Now
Payment Terms :
T/T
Supply Ability :
One set per 30 working days
Delivery Time :
30 workking days
Packaging Details :
Plywood case
Valve Body :
316 stainless steel
Rotor type :
Shallow pocket
Structure :
Quick cleaning
Size :
DN200
Rotor Volume :
10L
Surface treatment :
Ra 0.3
Motor Brand :
WNM(Chinese brand)
GearBox Brand :
SEW
Description

Food grade stainless steel quick disassembly cleaning rotary airlock valve

Product Description:

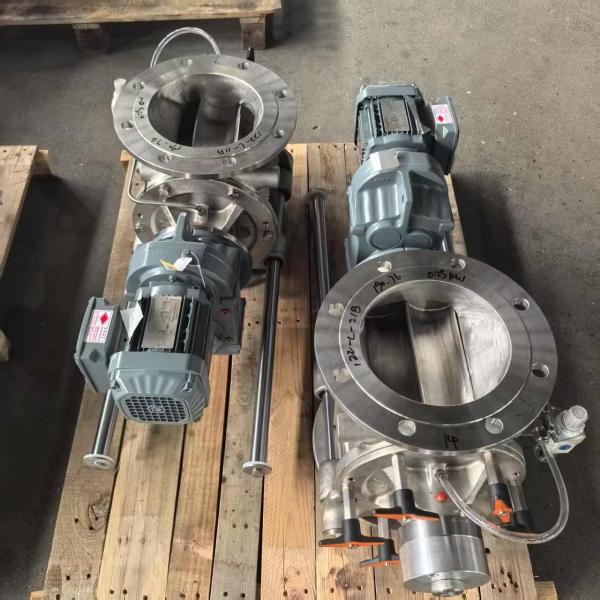

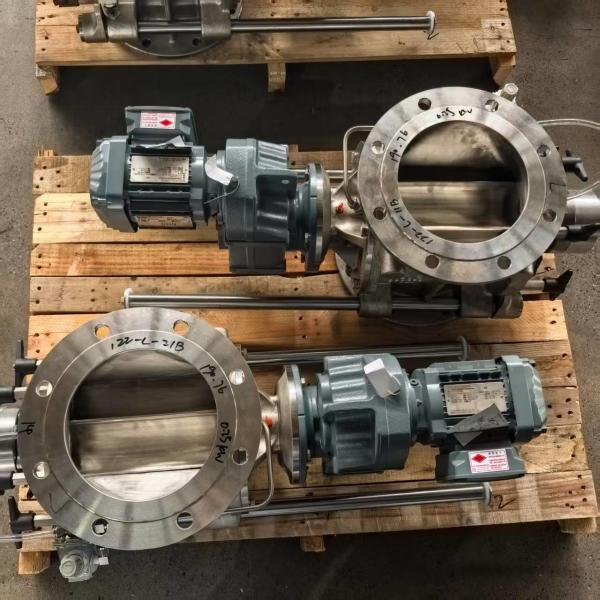

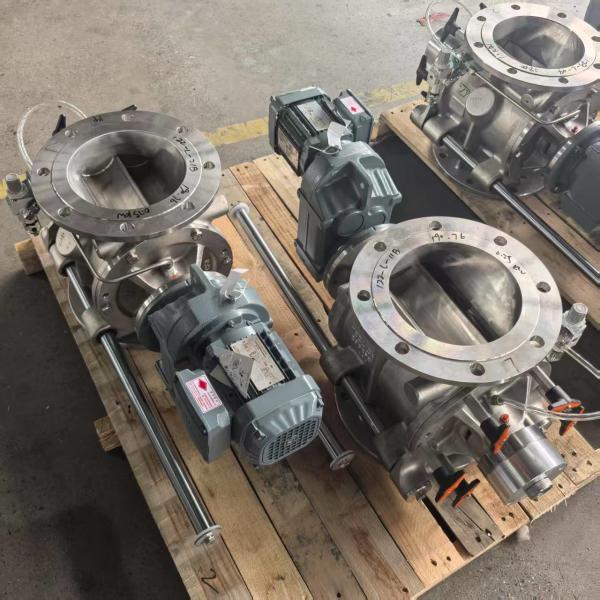

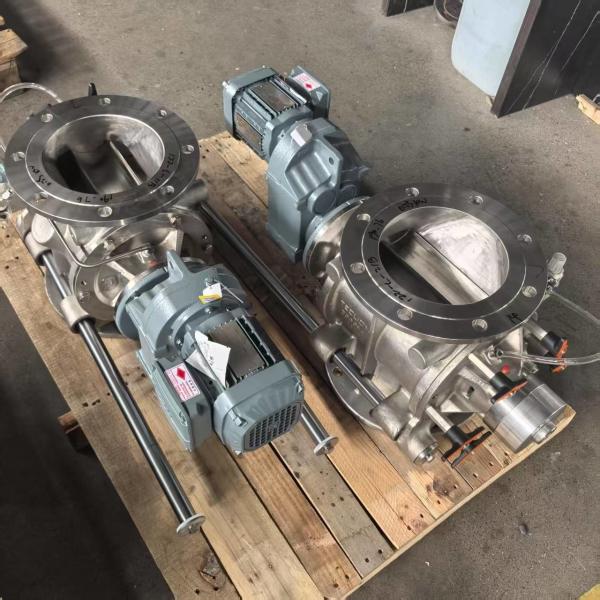

The aperture size of the rotary airlock valve in the photo is 8 inches, and the rotor volume is 10L. For the material contact area, we have polished it, and for the rotor, we have used a curved bottom rotor to increase the fluidity of the customer's material. The customer is a Russian food factory used for transporting powdered sugar. The customer had previously used rotary valves from other Chinese companies, and encountered situations where the sugar powder crust and the valve got stuck during transportation. The customer tried out one of our cleaning rotary valves and found it to be good, so they purchased two more.

The valve is equipped with an air sealing system and external bearings, which can effectively protect the seal when conveying powdered materials such as sugar powder, greatly extending the service life of the sealing components of the rotary airlock valve.

Food Grade Stainless Steel Quick Disassembly Cleaning Rotary Airlock ValveFood Grade Stainless Steel Quick Disassembly Cleaning Rotary Airlock ValveFood Grade Stainless Steel Quick Disassembly Cleaning Rotary Airlock ValveFood Grade Stainless Steel Quick Disassembly Cleaning Rotary Airlock Valve
