304SS Pneumatic Powder Conveying Transfer System Equipment Reducing Agent Conveying Station
304SS Pneumatic Powder Conveying Transfer System Equipment Reducing Agent Conveying Station
304SS Pneumatic Powder Conveying Transfer System Equipment Reducing Agent Conveying Station
304SS Pneumatic Powder Conveying Transfer System Equipment Reducing Agent Conveying Station
304SS Pneumatic Powder Conveying Transfer System Equipment Reducing Agent Conveying Station
304SS Pneumatic Powder Conveying Transfer System Equipment Reducing Agent Conveying Station
304SS Pneumatic Powder Conveying Transfer System Equipment Reducing Agent Conveying Station
304SS Pneumatic Powder Conveying Transfer System Equipment Reducing Agent Conveying Station
Specifications
Brand Name :
TECLION
Model Number :
FS150HR-S
Certification :
CC CE
Place of Origin :
China,Anhui
MOQ :
1
Price :
Get the Best Price
Payment Terms :
T/T
Supply Ability :
Usually every one sets for 50- 60 days
Delivery Time :
60 working days
Packaging Details :
Professional export fumigation free wooden crate
Material :
stainless steel
name :
dispatch station
Motor Power :
0.55kw
Material stacking density :
800kg/m3
Transportation capacity :
1500kg/h
Rotor volume :
2.5L
Overall height :
2.14m
overall width :
1.3m
Description

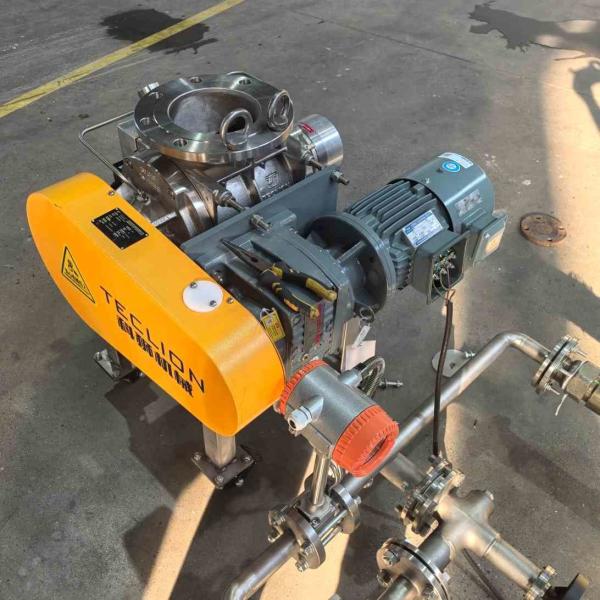

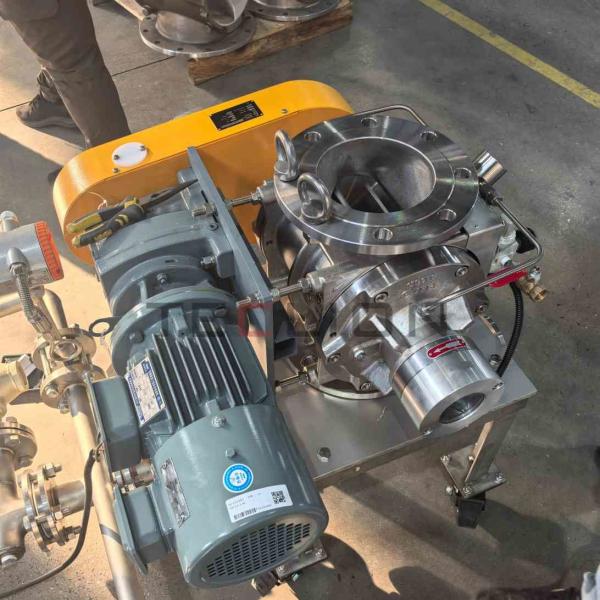

Reducing agent conveying station with chain transmission mode

Product Description:

Our conveying stations are divided into two series: dense phase conveying and dilute phase conveying. The complete conveyor station includes rotary valves and accessories, material shoes, exhaust hoppers, and brackets. For multi-point parallel conveying stations, sealed knife gate valves or butterfly valves should be added to reduce pressure loss. Optional mobile conveyor station.

Product Features:

1)The shell and valve cover are precision cast as a whole, made of 304 material, with a beautiful appearance

2)The rotor adopts a welded structure, which is wear-resistant

3)Transmission method: Chain transmission

4)The airtightness between the rotor and the valve body is good

5)When feeding, it will not cause dust to accumulate and cause environmental pollution. environment protection

6)Realize long-term stable feeding of designed feed quantity

Product Parameters:

No Item Note
1 product name Reducing agent delivery station
2 Equipment model RDW150R-C2-S8
3 Applicable working medium powder
4 Rotor material 304SS
5 Operating temperature ℃ normal temperature
6 Design pressure MPa 0.3
7 Operating PressureMPa ＜0.3
8 Reducer SLER
