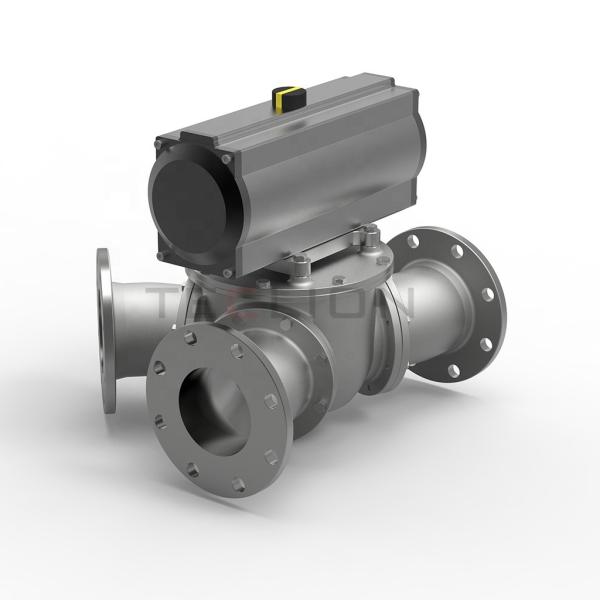

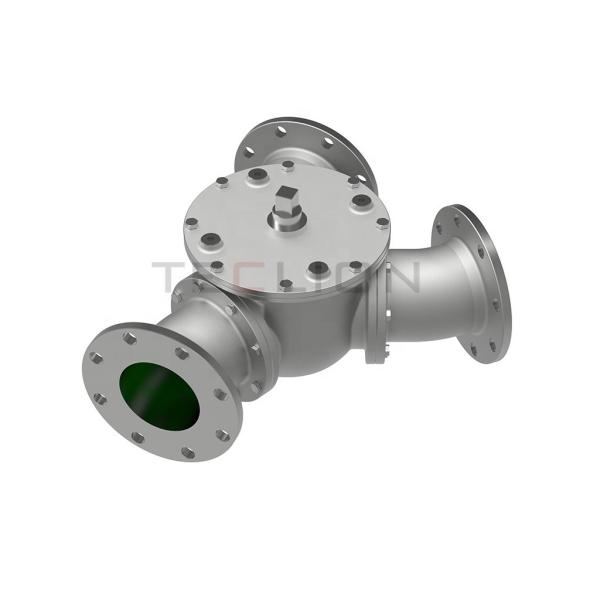

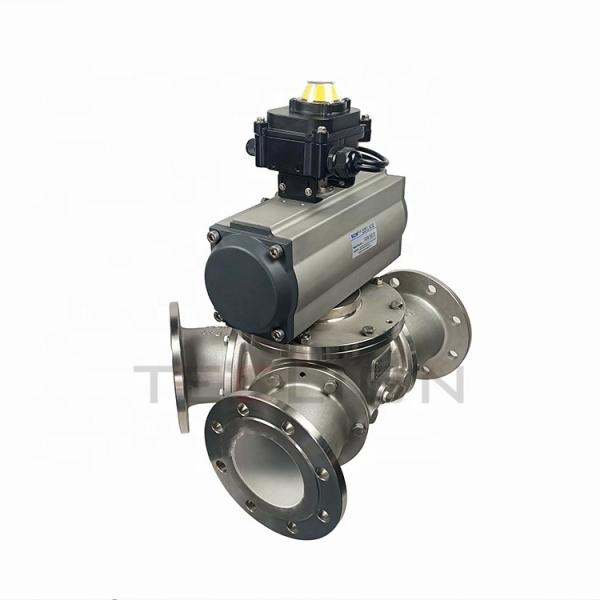

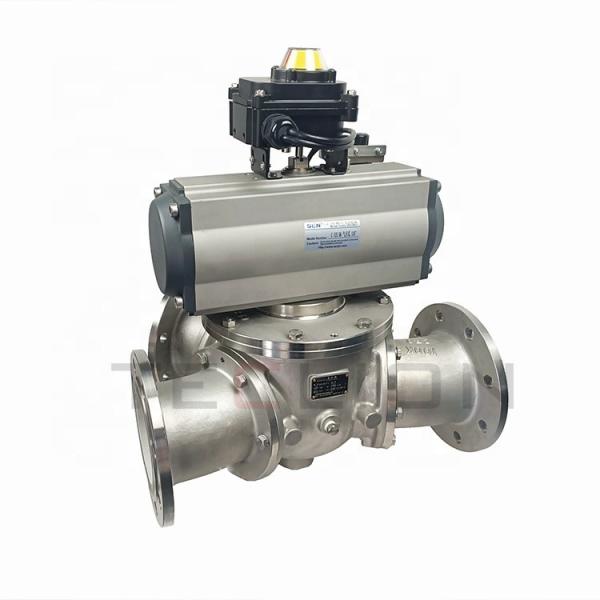

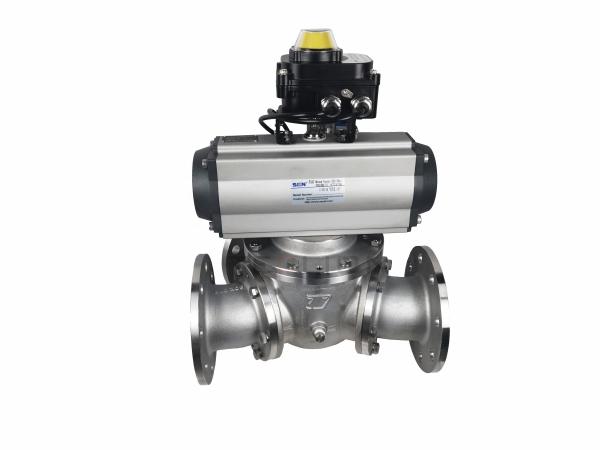

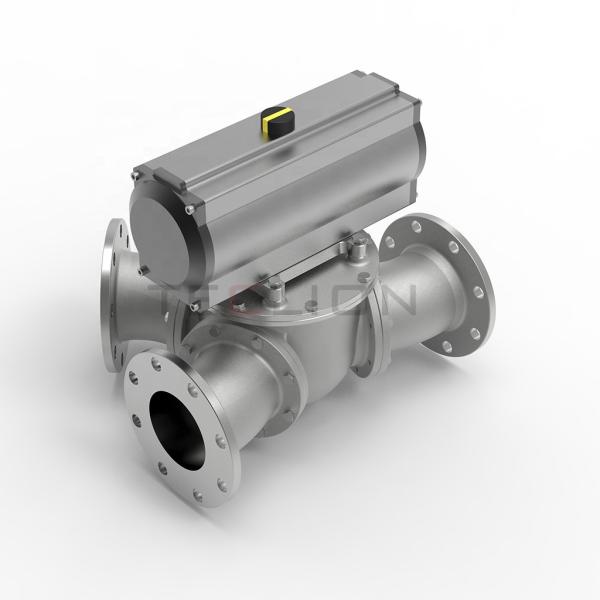

Stainless Steel Powder Gravity Pneumatic Diverter Valve 3 Way 73KG
Stainless Steel Powder Gravity Pneumatic Diverter Valve 3 Way 73KG
Stainless Steel Powder Gravity Pneumatic Diverter Valve 3 Way 73KG
Stainless Steel Powder Gravity Pneumatic Diverter Valve 3 Way 73KG
Stainless Steel Powder Gravity Pneumatic Diverter Valve 3 Way 73KG
Stainless Steel Powder Gravity Pneumatic Diverter Valve 3 Way 73KG
Stainless Steel Powder Gravity Pneumatic Diverter Valve 3 Way 73KG
Stainless Steel Powder Gravity Pneumatic Diverter Valve 3 Way 73KG
Stainless Steel Powder Gravity Pneumatic Diverter Valve 3 Way 73KG
Stainless Steel Powder Gravity Pneumatic Diverter Valve 3 Way 73KG
Stainless Steel Powder Gravity Pneumatic Diverter Valve 3 Way 73KG
Stainless Steel Powder Gravity Pneumatic Diverter Valve 3 Way 73KG
Specifications
Place of Origin :
Anhui, China
Brand Name :
Tec-lion
Packaging Details :
Wooden box
Supply Ability :
200 Set/Sets per Month
Price :
$844.44 - $7,959.18/sets
Condition :
New
Weight (KG) :
73
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
Bearing, Gearbox, Motor
Warranty :
1 Year
Applicable Industries :
Manufacturing Plant, Food & Beverage Factory, Farms, Construction works , Energy & Mining, Other, Machining
Showroom Location :
None
Function :
Feeding
Used for :
Transportation of bulk materials
Packing :
Wooden box
Port :
shanghai
Description

73KG Stainless Steel and Carbon Steel Pneumatic/Gravity Three-Way Diverter Valves

Product Description
  • Elastic sealing ring at each part
  • Smooth and gap -free transition due to patented design of inlet,outlet
  • Easily visible rotary plug mechanical direction indicator
  • Suitable for dilute phase pressure up to 6.0barg
  • Materials of construction:stainless steel or carbon steel
  • Flange drillings available to PN10,ANSI 150lbs
  • Suitable for dense phase conveying
  • Usable in Ex-zoneStainless Steel Powder Gravity Pneumatic Diverter Valve 3 Way 73KGStainless Steel Powder Gravity Pneumatic Diverter Valve 3 Way 73KG
special requirements
  • The contact area between the inner cavity and the material can be mirror polished and degreased
  • The inner cavity can be sprayed with ceramic or tungsten carbide to enhance wear resistance
  • Optional hard sealing structure
Our Services

Our company has specific document regulations for after-sales service:Product quality & service commitment to users outside of China

Packaging & Shipping

Wooden box packaging and sea freight

Company Information

Our company has already achieved systematic research and manufacturing of bulk material conveying equipment, and has established good cooperative relationships with numerous domestic and foreign engineering companies and end users. Our products and technologies are widely used in various industries, from chemical engineering, rubber to ore and cement, from food and medicine to feed and grain, from environmental protection and daily chemical to battery new energy.
