Specifications
Place of Origin :
Anhui, China
Model Number :
RDL250
Brand Name :
TECLION
Price :
$1,806.00 - $2,130.00/sets
Application :
General
Port Size :
DN250
Warranty :
12 months
Power :
Electric
Temperature of Media :
High Temperature, Low Temperature, Medium Temperature, Normal Temperature
Structure :
Control
Media :
Powder
Customized support :
OEM, ODM, OBM
Product name :
RDL250
Body material :
304ss
Medium :
powder
Working pressure :
1 bar
Working Temperature :
250℃
Seal :
air seal
Brand :
TECLION
Description

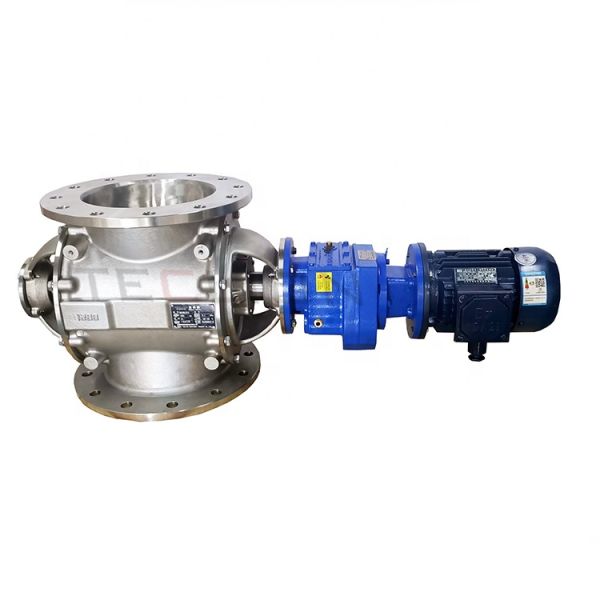

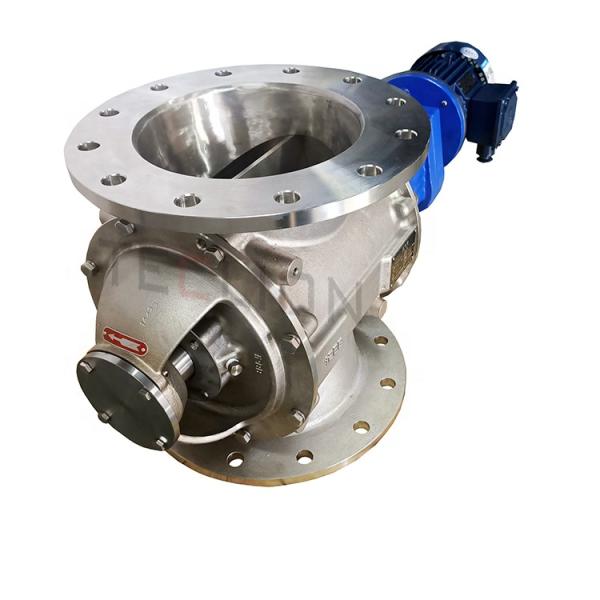

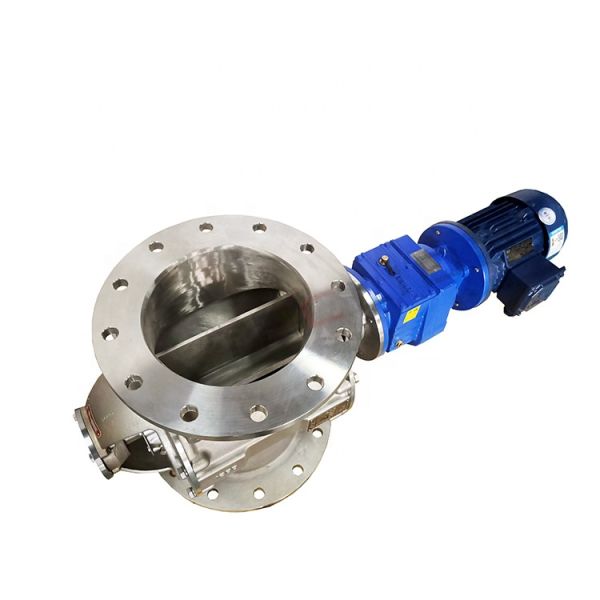

Air Seal Electric Rotary Control Valve for High Pressure Applications

FEATURES AT A GLANCE
Powder medium discharge metering
High filling
Pressure :Less than or equal to 1bar
Flange pressure grade:PN10,ANSI150lbs
Suitable for explosion-proof areas
DN250 High Pressure Electric Rotary Valve System Dust Collector Air Lock
DN250 High Pressure Electric Rotary Valve System Dust Collector Air Lock
Right elevation
DN250 High Pressure Electric Rotary Valve System Dust Collector Air Lock
Left elevation
DN250 High Pressure Electric Rotary Valve System Dust Collector Air Lock
Front elevation
PRODUCT SPECIFICATIONS
No
Item
Data
1
Size
DN250
2
Rotor volume
13L
3
Valve material
stainless steel or carbon steel
4
temperature
less than 250 ℃
5
pressure
1 bar
6
bearing
External
PRODUCT CONFIGURATION
DN250 High Pressure Electric Rotary Valve System Dust Collector Air Lock
Filter regulator
DN250 High Pressure Electric Rotary Valve System Dust Collector Air Lock
reducer
DN250 High Pressure Electric Rotary Valve System Dust Collector Air Lock
Motor
