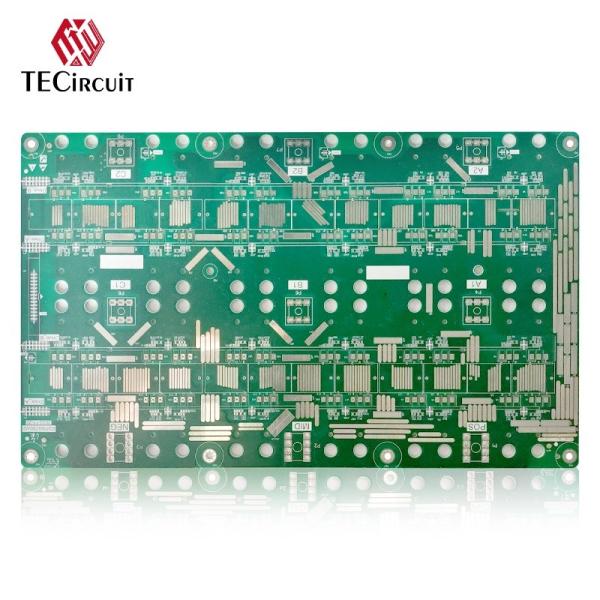

Solar Inverter RIGID PCB Board
Multi Layer Printed Circuit Board Manufacturing for solar energy applications
Product Specifications
Layer Count 4L
Material FR-4 TG150
Thickness 2.5mm
Copper Thickness 3.5oz
Dimension 419 * 250mm
Surface Treatment HASL LF
Application Solar Inverter
Product Images
Solar Inverter RIGID PCB Board Multi Layer Printed Circuit Board Manufacturing Solar Inverter RIGID PCB Board Multi Layer Printed Circuit Board Manufacturing
About TECircuit
Founded: 2004
Location: Shenzhen, China - Electronics Manufacturing Service (EMS) provider
Services: Customizable EMS PCB offering comprehensive one-stop solutions including PCB/PCBA, Flexible Printed Circuit Board (FPC), Components Sourcing, Box-Building, and Testing
Quality Certifications: UL, ISO 9001, ISO 14001, ISO 13485, IATF 16949, compliant with ROHS and REACH standards
Manufacturing Capacity: 50,000 sqm facility with 930+ employees and monthly production capacity of 100,000 m²
Frequently Asked Questions
What is needed for a quotation?
PCB: Quantity, Gerber file, and technical requirements (material, surface finish, copper thickness, board thickness)
PCBA: PCB information, BOM list, and testing documentation
What file formats do you accept for production?
PCB Gerber files, BOM lists for PCB assembly, and test methods for PCBA
Are my files safe?
Your files are completely secure and protected. We safeguard customer intellectual property throughout the entire process and never share documents with third parties.
What is the shipment method?
We offer FedEx, DHL, TNT, and UPS shipping options. Customer-provided shipment methods are also acceptable.
What is the payment method?
Telegraphic Transfer in advance (Advance T/T) and PayPal are accepted.
Product Applications
  • Grid-Tied Solar Inverters: Convert DC power from solar panels into AC power for grid integration
  • Off-Grid Solar Inverters: Power standalone systems in remote locations without grid access
  • Battery-Based Systems: Integrated systems for solar energy storage and power supply during non-sunny periods
  • Microinverters: Small-scale installations converting DC to AC at panel level for optimized energy harvest
  • Power Optimizers: Module-level power management and conversion for maximum energy output
  • Hybrid Inverters: Combine grid-tied and off-grid functionalities with energy storage capabilities
  • Solar Monitoring Systems: Performance tracking and real-time data monitoring for solar power systems
  • Smart Home Integration: Energy management and optimization through home automation connectivity
  • Electric Vehicle Charging Stations: Solar-powered EV charging solutions converting solar energy for vehicle charging
  • Renewable Energy Systems: Integration with larger renewable energy setups including wind energy systems
Technical Specifications
PCB Layers 1-42 layers
PCB Materials CEM1, CEM3, Rogers, FR-4, High Tg FR-4, Aluminum Base, Halogen Free
Maximum Board Size 620mm * 1100mm
Certification RoHS Directive-Compliant
PCB Thickness 1.6 ±0.1mm
Outer Layer Copper Thickness 0.5-5oz
Inner Layer Copper Thickness 0.5-4oz
Maximum Board Thickness 6.0mm
Minimum Hole Size 0.20mm
Minimum Line Width/Space 3/3mil
Minimum Solder Mask Pitch 0.1mm (4mil)
Plate Thickness and Aperture Ratio 30:1
Minimum Hole Copper 20µm
Hole Diameter Tolerance (PTH) ±0.075mm (3mil)
Hole Diameter Tolerance (NPTH) ±0.05mm (2mil)
Hole Position Deviation ±0.05mm (2mil)
Outline Tolerance ±0.05mm (2mil)
PCB Solder Mask Colors Black, white, yellow
PCB Surface Finishes HASL Leadfree, Immersion ENIG, Chem Tin, Flash Gold, OSP, Gold finger, Peelable, Immersion Silver
Legend Color White
Electrical Testing 100% AOI, X-ray, Flying probe test
Outline Processing Rout and Score/V-cut
Inspection Standard IPC-A-610C CLASS II
Certificates UL (E503048), ISO9001/ISO14001/IATF16949
Outgoing Reports Final Inspection, E-test, Solderability Test, Micro Section and more
