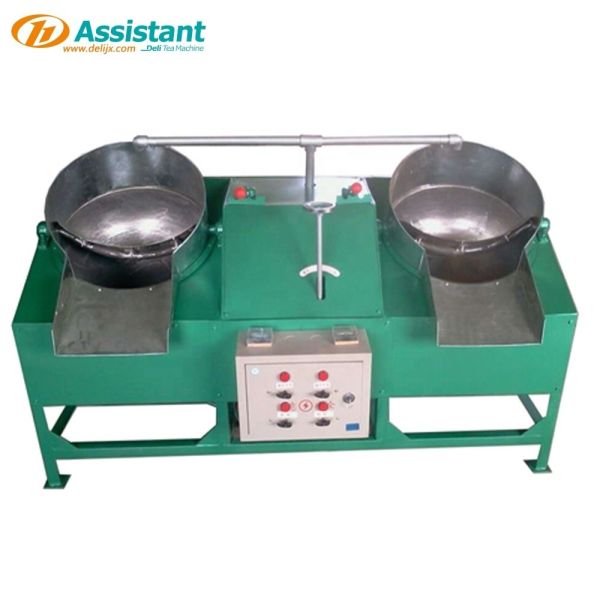

Multi Pan 2 Pot Pearl Type Tea Roast Shaping Machine with 6-8 kg Capacity DL-6CSG-50
Multi Pan 2 Pot Pearl Type Tea Roast Shaping Machine with 6-8 kg Capacity DL-6CSG-50
Multi Pan 2 Pot Pearl Type Tea Roast Shaping Machine with 6-8 kg Capacity DL-6CSG-50
Multi Pan 2 Pot Pearl Type Tea Roast Shaping Machine with 6-8 kg Capacity DL-6CSG-50
Multi Pan 2 Pot Pearl Type Tea Roast Shaping Machine with 6-8 kg Capacity DL-6CSG-50
Multi Pan 2 Pot Pearl Type Tea Roast Shaping Machine with 6-8 kg Capacity DL-6CSG-50
Multi Pan 2 Pot Pearl Type Tea Roast Shaping Machine with 6-8 kg Capacity DL-6CSG-50
Multi Pan 2 Pot Pearl Type Tea Roast Shaping Machine with 6-8 kg Capacity DL-6CSG-50
Multi Pan 2 Pot Pearl Type Tea Roast Shaping Machine with 6-8 kg Capacity DL-6CSG-50
Multi Pan 2 Pot Pearl Type Tea Roast Shaping Machine with 6-8 kg Capacity DL-6CSG-50
Multi Pan 2 Pot Pearl Type Tea Roast Shaping Machine with 6-8 kg Capacity DL-6CSG-50
Multi Pan 2 Pot Pearl Type Tea Roast Shaping Machine with 6-8 kg Capacity DL-6CSG-50
Specifications
Condition :
New
Applicable Industries :
tea
Weight (KG) :
8
Showroom Location :
Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, India, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, Colombia, Algeria, Sri Lanka, Romania,
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Pearl Curly Tea Shaping Machine
Warranty of core components :
1 Year
Core Components :
Engine, Bearing, Gear
Place of Origin :
Fujian, China
Brand Name :
DELI ASSISTANT
Type :
Pearl Curly Tea Shaping Machine
Warranty :
1 Year
Application fields :
Pearl Curly Tea Shaping Machine
Machinery Capacity :
6-8kg
Machinery Function :
Pearl Curly Tea Shaping Machine
Name :
Pearl Curly Tea Shaping Machine
Model :
DL-6CSG-50
Voltage :
380V
Dimension :
1800*800*1050 mm
Wods number :
2PCS
Wok diameter :
50cm
Capacity :
6-8 kg
Packaging Details :
Multi Pan 2 Pot Pearl Type Gunpowder Tea Roast Shaping Machine Double Pan 2 Pot Pearl Type Tea Roast Shaping Machine DL-6CSG-50 packing in wooden box
Price :
$1,850.00/sets 1-9 sets
Description
Product Description

DESCRIPTION

The double pot pearl tea roasting machine is suitable for the frying and processing of spiral tea leaves. By high temperature and a shovel in the pot, the tea leaves are dried one by one and fried into spiral shapes. Suitable for various kinds of tea, also can be made black tea.
Full-automatic temperature control system and hot air distribution system ensure that the hot and humid air in the pot is removed in time to ensure the bright color of the tea.

ADVANTAGE

1. This machine is suitable for tea drying operation and bead molding process. The fried tea strips are firm and firm, the forming effect is good, and the color is green;
2. The double pot is made by precision casting, the shape of the pot body is even and smooth, and the swing arm and the pot body are evenly bonded, which is advantageous for forming the tea leaves, reducing the rate of broken tea and effectively increasing the forming speed;
3. Adopt automatic temperature control, the temperature of the pot is even, and the drying effect of tea leaves is good.

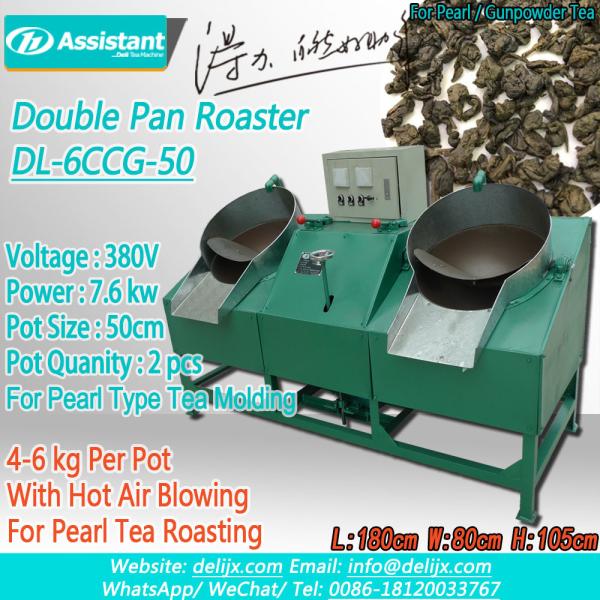

SPECIFICATION

Double-Pot Roasting Machine specification list:

Model DL-6CSG-50
Dimensions (L*W*H) 1800×800×1050 mm
Voltage 380/50 V/Hz
Heating element Heating wire
Total heating power 7.6 kw
Heating element group 2
Swing arm motor power 0.75 kW
Rotating speed 1400 r/min
Rated voltage 380 V
Fan motor power 0.15 kW
Rotating speed 1400 r/min
Rated voltage 220 V
Number of woks 2
Swing arm speed grade 3 files adjustable
Wok diameter 500 mm
Capacity Per Pot Per Time 3-4 kg

If you have special need, it can be customized according to the needs of customers.

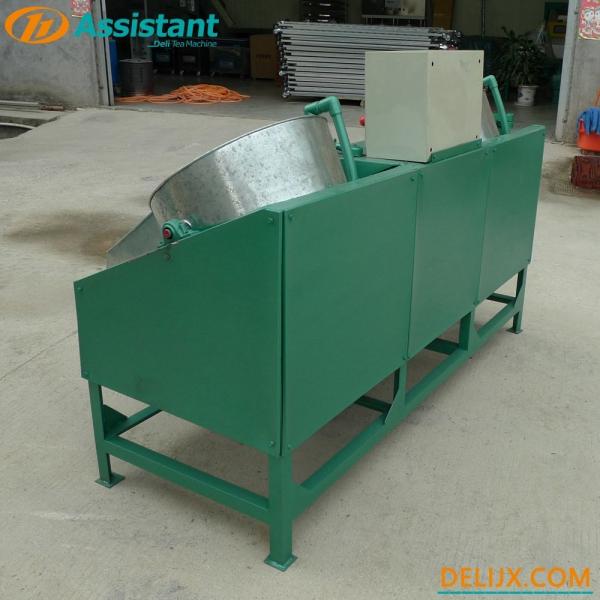

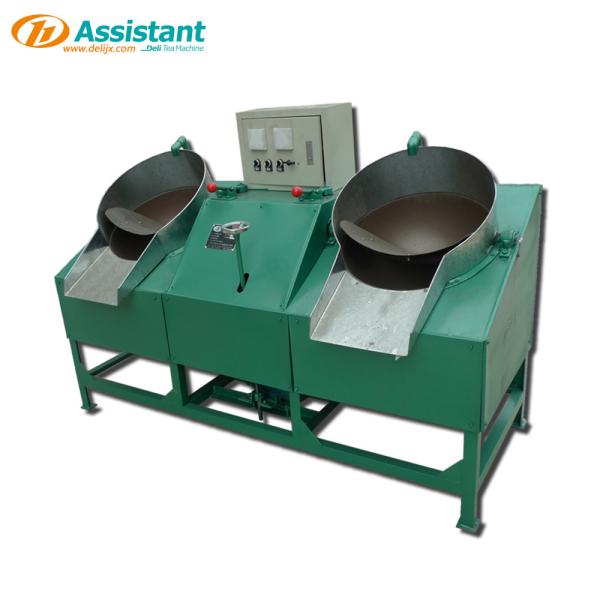

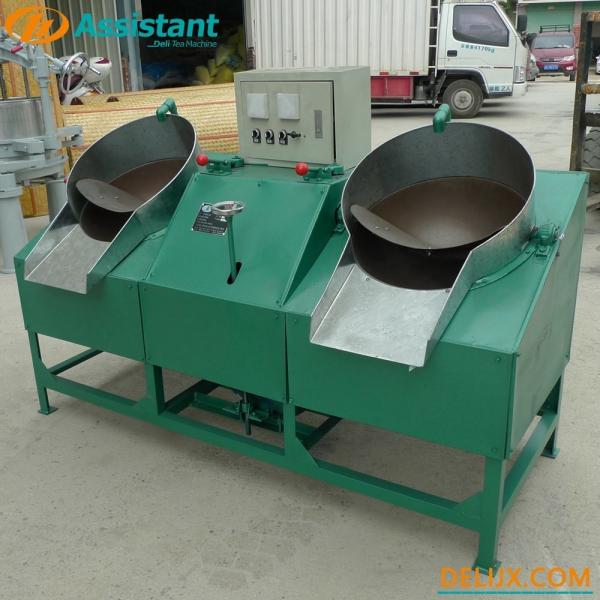

PHOTOS

Multi Pan 2 Pot Pearl Type Tea Roast Shaping Machine with 6-8 kg Capacity DL-6CSG-50

Multi Pan 2 Pot Pearl Type Tea Roast Shaping Machine with 6-8 kg Capacity DL-6CSG-50

Multi Pan 2 Pot Pearl Type Tea Roast Shaping Machine with 6-8 kg Capacity DL-6CSG-50

Multi Pan 2 Pot Pearl Type Tea Roast Shaping Machine with 6-8 kg Capacity DL-6CSG-50

Multi Pan 2 Pot Pearl Type Tea Roast Shaping Machine with 6-8 kg Capacity DL-6CSG-50

Packaging & Shipping
PACKING&DELIVERY

All models of our machines are in stock. Our delivery time is usually about 1-2 days.

Because tea production equipment is a large cargo, we usually deliver them to you by sea.

1. We will wrap them with waterproof film to prevent water from damaging the machine.
2.Wrap cartons or foam boards outside the machine to prevent machine collision and damage.
3.On the outermost layer, we will build a steel or wooden frame to reinforce the machine, not afraid of bumps in the process of transportation, and facilitate forklift loading.

Multi Pan 2 Pot Pearl Type Tea Roast Shaping Machine with 6-8 kg Capacity DL-6CSG-50

Company Information
CUSTOMERS

Our customers all over the world, as long as there are tea processing areas, you can see our machines, our customer includes Russia, Georgia, Azerbaijan, Belarus, Ukraine, etc. in Eastern Europe, Britain, Netherlands, Germany, etc. in Western Europe, Turkey, Yemen, Kuwait in the Middle East, Myanmar, Vietnam, Indonesia, Laos in Southeast Asia, Cambodia, Thailand, India, Sri Lanka, Bangladesh, Nepal, Bhutan, etc. in South Asia, Mexico, United States, Canada, Bolivia in Central and South America, Brazil, Argentina, Chile, Peru, Belize, Colombia, etc., in Australia Australia and New Zealand, Africa has Uganda, Nigeria, Ethiopia, Mozambique, Kenya, etc.

Multi Pan 2 Pot Pearl Type Tea Roast Shaping Machine with 6-8 kg Capacity DL-6CSG-50

STRENGTH

In Russia, Georgia, India, Vietnam, Peru and Turkey, we have offices that provide fast and high quality service to local customers. In 2019, we passed the bidding certification of the State Ministry of Agriculture of Georgia, this is a national project we have settled in, which greatly encourages the quality of our products!

Multi Pan 2 Pot Pearl Type Tea Roast Shaping Machine with 6-8 kg Capacity DL-6CSG-50

CERTIFICATES

Our whole series of equipment has passed ISO9001 international quality system certification and EU CE certification. At present, our machines have been used in Western European countries such as Britain, the Netherlands, Spain, and so on.

More than 20 Chinese national patent certificates, More than 50 promotion certificates of China Agriculture Ministry, Obtain ISO9001 quality system certification.
