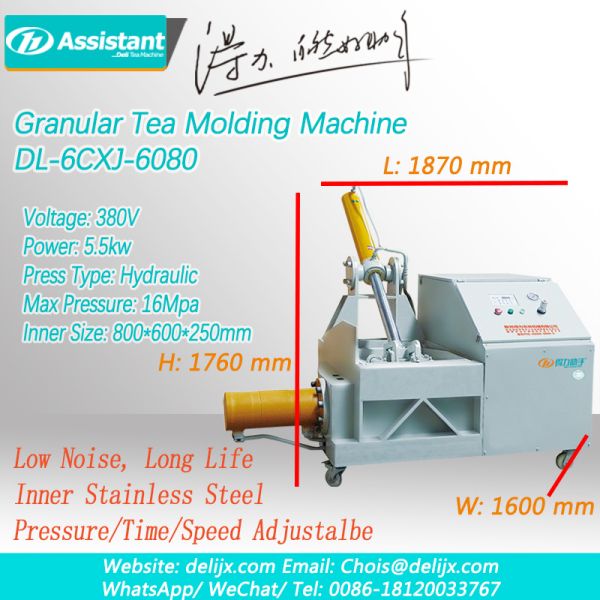

	Model	DL-6CCXJ-6080
	Dimension	1760*1870*1600 mm
	Inner Cavity Size	800*600*250 mm
	Min Size Of Molding	300*100*250 mm
	Pressurization method	Hydraulic
	Maximum pressure	16Mpa
	Power	5.5 kw
	Motor Speed	1400 rpm
	Voltage	380V

The above data is based on fresh tea leaf water content of 75-80%.

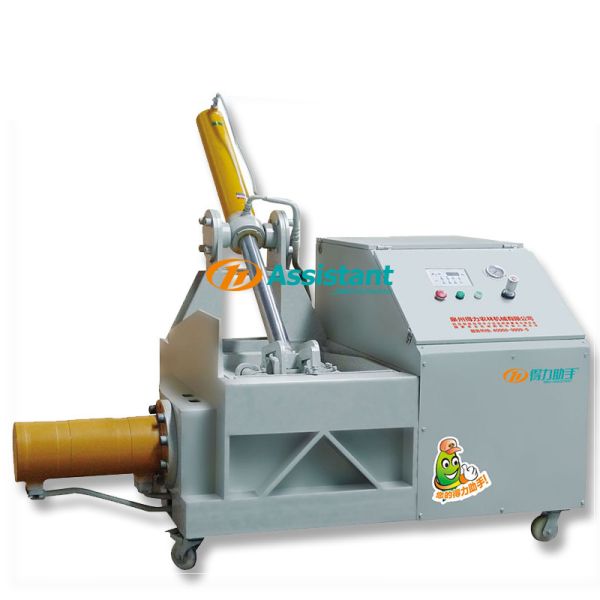

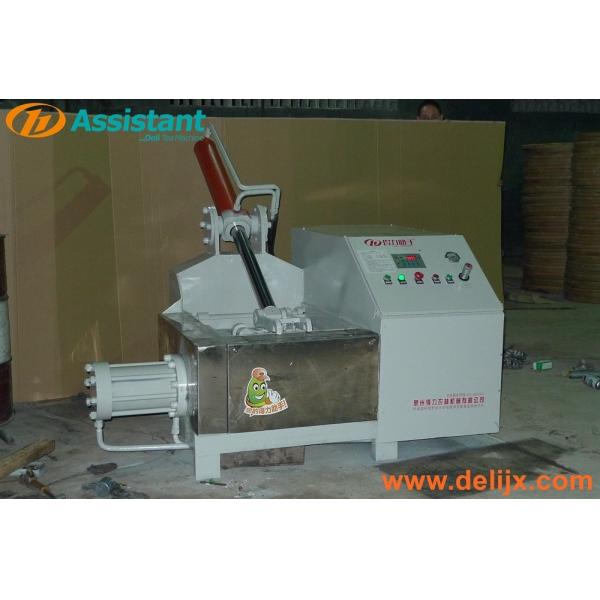

Introduction:

The original leaf-shaped tea leaves can be extruded into granular tea, which can replace the speed charter and the wrapping machine.
Greatly improve work efficiency, and the tea shape is more beautiful, the color is greene.
High quality, high efficiency and low failure are realized. , low energy consumption

Advantage:

1.This machine can replace the speed charter and the wrapping machine, saving costs.
2.The processing efficiency of this machine is dozens of times of manual, which greatly saves costs.
3.Integrated design, large enclosed appearance, with moving bottom wheel, overall beautiful and practical
4.The main structural steel plate of the whole machine adopts Q345B high strength steel plate.
5.The contact part with the material is made of 2mm 304 stainless steel plate to ensure the sanitary standard.
6.Unique cavity size design for faster material forming and improved work efficiency
7.The cover plate has a bolt to ensure that the support structure of the clamshell cylinder is not stressed when the cover is stressed, and the main structure is prevented from being damaged.

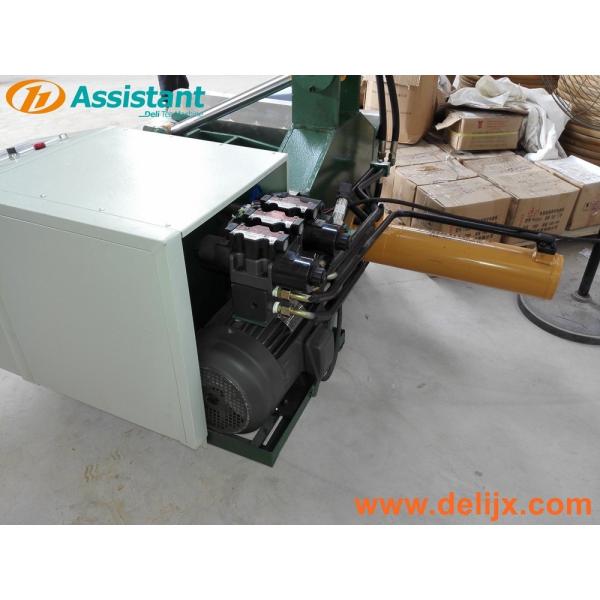

8.Pressure control with dual flow channels makes pressure adjustment easy and convenient
9.Fully automatic control system and pressure sensing device make operation easier
10.With phase sequence protection, the motor protection is in place when the phase is missing.

If you are interested in our machine, click here to send us inquiries.

All models of our machines are in stock. Our delivery time is usually about 1-2 days.

Because tea production equipment is a large cargo, we usually deliver them to you by sea.

1. We will wrap them with waterproof film to prevent water from damaging the machine.
2.Wrap cartons or foam boards outside the machine to prevent machine collision and damage.
3.On the outermost layer, we will build an steel or wooden frame to reinforce the machine, not afraid of bumps in the process of transportation, and facilitate forklift loading.

Obtain ISO9001 quality system certification

More than 30 Chinese honorary certificates

More than 20 Chinese national patent certificates

More than 50 promotion certificates of China Agriculture Ministry

Our products are all over the world, in Russia, Eastern Europe, India, Sri Lanka, Vietnam, Southeast Asia, South America, Africa and other regions, you can see our products.

Here are some of our major partners: ARPICO, TMAX, AGROSOFT, MELCONS, CHINA-URAL.RU, AGROFIL HUYRO and so on

Every year, dozens of foreign customers come to visit our factory, and we provide them with various solutions for tea production.

Our factory covers an area of 16000m², all kinds of equipment are in stock, all machines are modular production, low failure rate, fast maintenance, short production time, is your right assistant in tea processing.
