	Model	DL-6CSTP-CM90B
	Dimension	2100×1100×1840 mm
	Voltage	380V / 220V
	Inner drum diameter	900 mm
	Inner drum length	1000 mm
	Heating type	Wood/coal heating
	Motor power	1 kw
	Drum speed	5-37 rpm
	Efficiency	80 kg/h

The above data is based on fresh tea leaf water content of 75-80%.

Introduction:

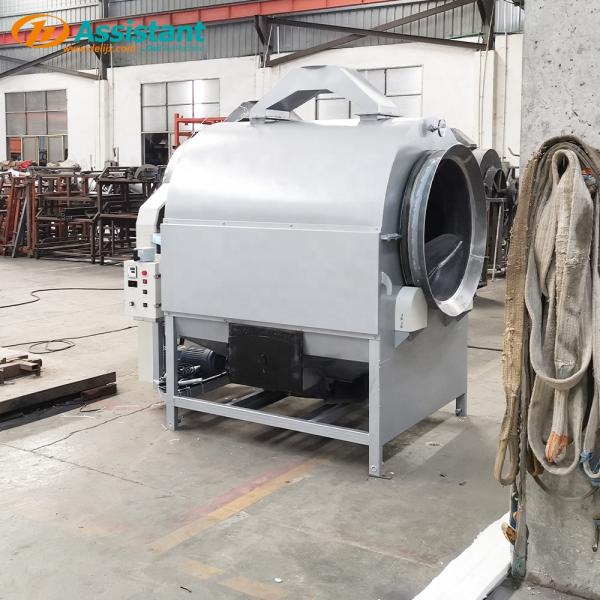

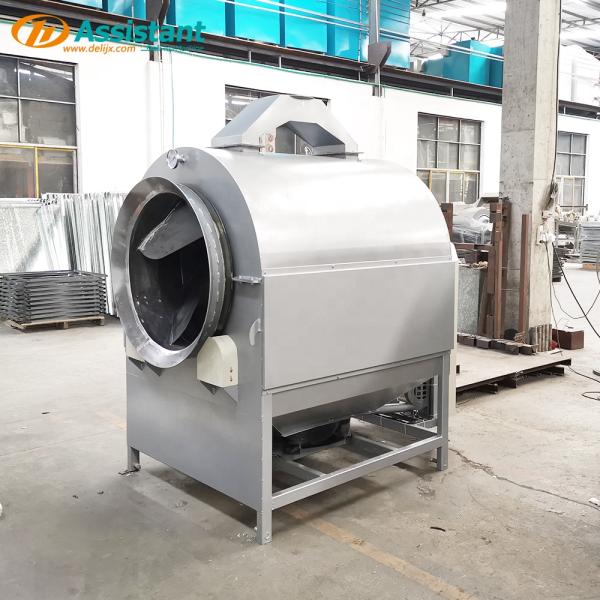

This wood and coal heating tea leaf drum roasting drying machine is using at primary stage of tea processing, for drying water content, sorting and tighten stripe. The machine can also be used for stir day tealeaves, and other food like sunflower seed, pipe seeds.

Application:

This stir drum drying machine mainly used for green tea, make the finished tea leaf more tighten, quality more better.

Advantage:

Use high-grade heat-resistant cement, strong and durable;

Controllable water vapor emission system is adopted to save energy;

Intelligent temperature control system, easy to operate, accurate control;

The inner cylinder is made of 3.5mm thick steel plate, which is uniformly heated and prevents the tea from being scorched. It is the basic standard of high quality tea fixation;

Calcium silicate plate is used to increase heat preservation performance, environmental protection and energy saving, and professional furnace hot runner design, energy saving and high efficiency.

If you are interested in our machine, click here to send us inquiries.

All models of our machines are in stock. Our delivery time is usually about 1-2 days.

Because tea production equipment is a large cargo, we usually deliver them to you by sea.

1. We will wrap them with waterproof film to prevent water from damaging the machine.
2.Wrap cartons or foam boards outside the machine to prevent machine collision and damage.
3.On the outermost layer, we will build an steel or wooden frame to reinforce the machine, not afraid of bumps in the process of transportation, and facilitate forklift loading.
