220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070
220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070
220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070
220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070
220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070
220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070
220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070
220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070
220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070
220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070
220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070
220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070
Specifications
Condition :
New
Applicable Industries :
Food & Beverage Factory, Tea
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
Nitrogen storage tank, Air Filtration Assembly, Nitrogen generator, Stainless steel fermentation bucket
Brand Name :
DELI ASSISTANT
Place of Origin :
Fujian, China
Voltage :
220V 50/60Hz, 220V 50/60Hz
Power :
5kw, 5KW
Dimension(L*W*H) :
220*135*210cm
Weight :
500 KG
Warranty :
1 Year
Application fields :
tea leaves
Machinery Function :
fermentation
Raw material :
tea leaves
Output product name :
tea leaves
Model :
DL-6CFJT-15070
Dimensions :
220*135*210cm
Nitrogen purity :
99
Bucket diameter :
715mm
Barrel length :
1500mm
Tank pressure :
0.6Mpa
Vacuum degree minimum :
100PA
Price :
$6,500.00/sets 1-4 sets
Description
220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070
220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070

Tea Garden Management Equipments

220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070

Tea Withering Machine

220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070

Tea leaf fixation machine

220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070

Tea Rolling Machine

220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070

Tea Fermentation Machine

220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070

Tea Dryer Machine

220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070

GABA Tea Fermentation machine description

This fully automatic anaerobic fermentation tank is designed specifically for GABA tea production, ensuring optimal fermentation in an oxygen-free environment. Made of 304 stainless steel, it features vacuum extraction, nitrogen generation, and nitrogen filling functions for producing high-quality GABA tea.

GABA Tea Fermentation machine usage

GABA Tea Fermentation machine can process almost all tea: such as GABA tea.

220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070
Model
DL-6CFJT-15070
Dimension
220*135*210cm
Voltage
220v/380v
Fermentation method
Vacuum&Nitrogen generation
Fermentation power
5KW
Nitrogen purity
99
Bucket diameter
715mm
Barrel length
1500mm
Vacuum degree minimum
100PA

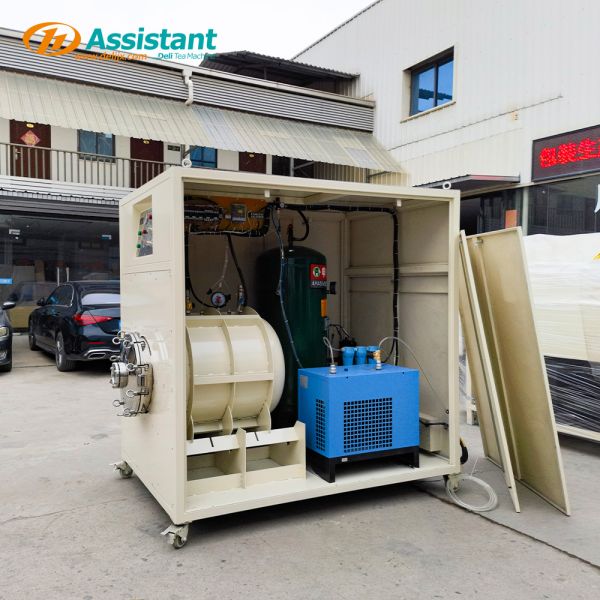

220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070

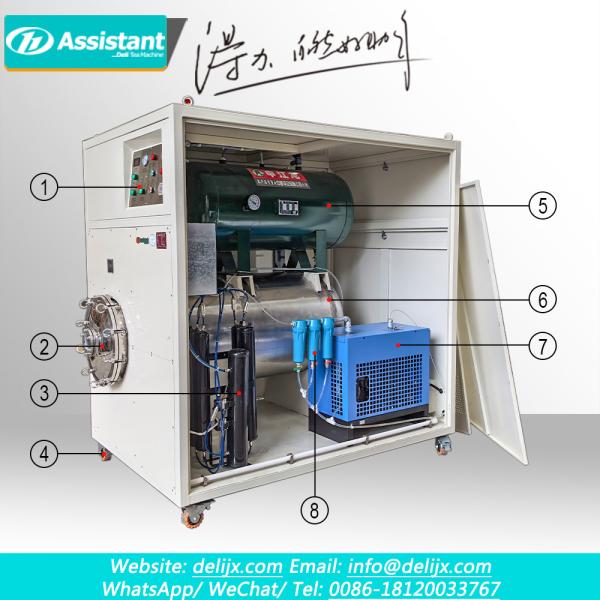

①
Control panel
⑤
Nitrogen storage tank
②
304 stainless steel sealing cover
⑥
Stainless steel fermentation bucket
③

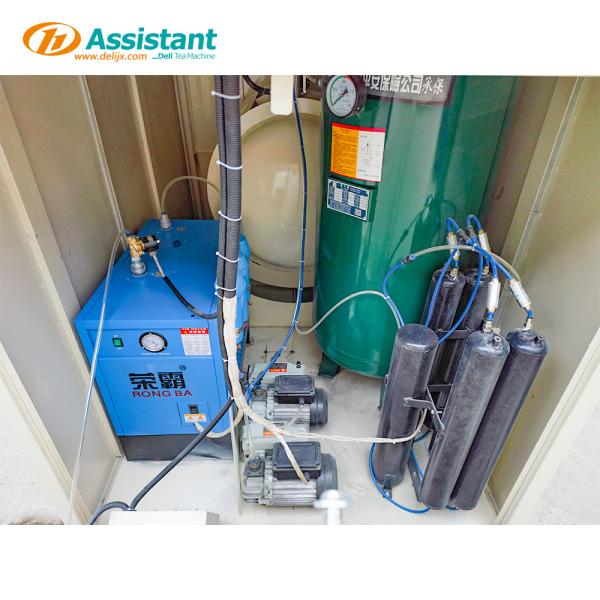

Nitrogen generator
⑦

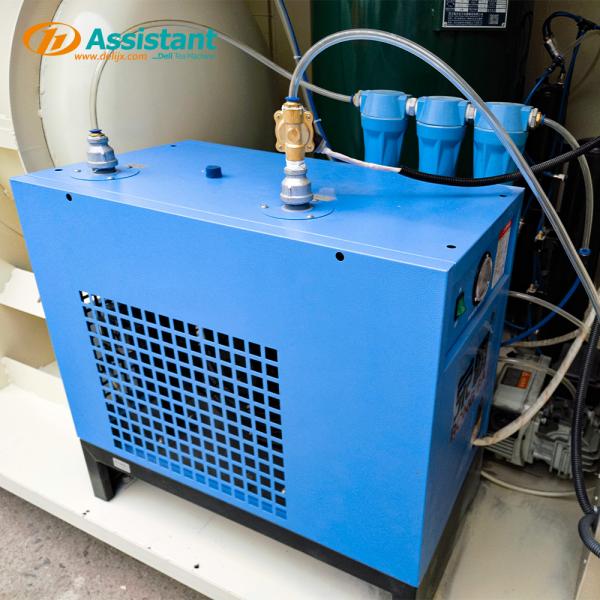

Moisture lyophilizer
④
Support casters
⑧
Air Filtration Assembly
220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070

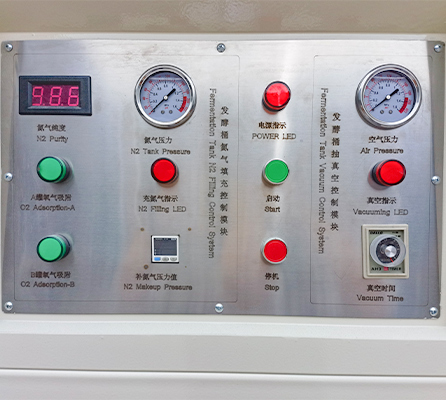

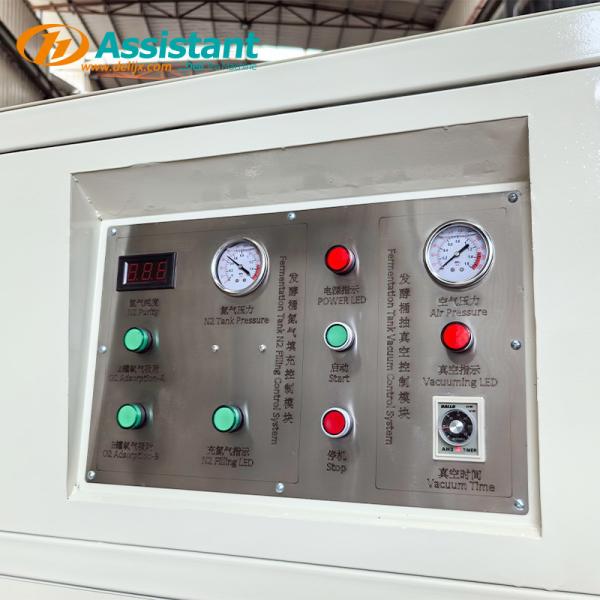

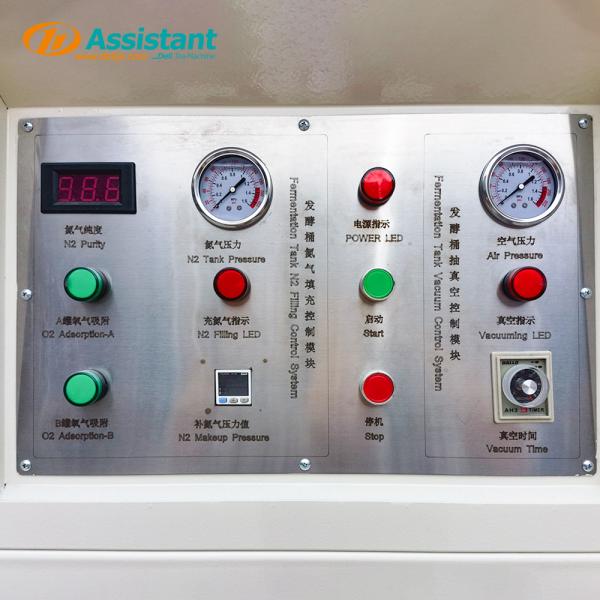

Intelligent temperature and time control system

The GABA tea leaf anaerobic fermentation tank is equipped with an intelligent temperature and time control system. It has a nitrogen purity of 99% and real-time display of nitrogen pressure. The device allows for adjustment of the vacuum extraction time.

220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070

Air filtration components

Air filtration components are important parts of an air filtration system that help remove contaminants and impurities from the fermentation vat. These components typically include filters, filter media, filter housings, and seals. The filter media is the material used within the filter to capture and retain particles.

220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070

Copper core motor

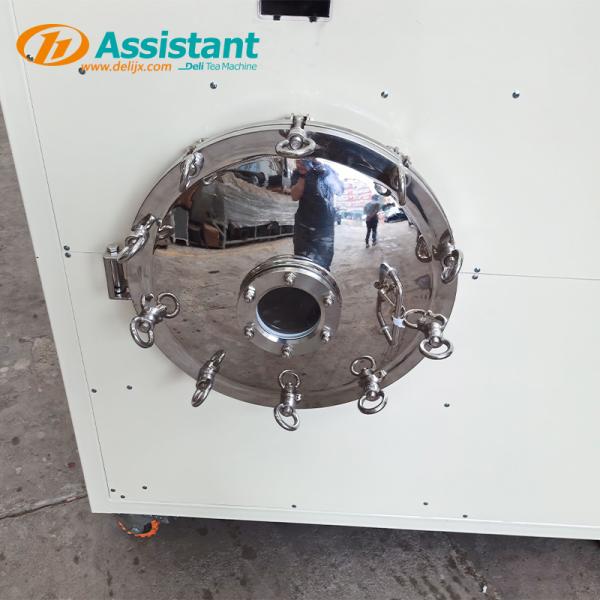

The 304 stainless steel sealing cap is a crucial machine part, ensuring a secure and airtight seal for the fermentation tank. Constructed from top-grade stainless steel, it guarantees durability and dependability. By blocking oxygen entry, the cap establishes an anaerobic environment for optimal tea leaf fermentation.

220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070

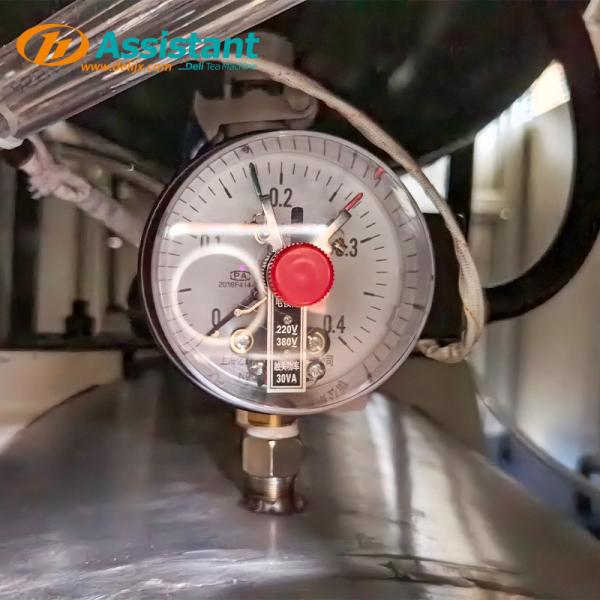

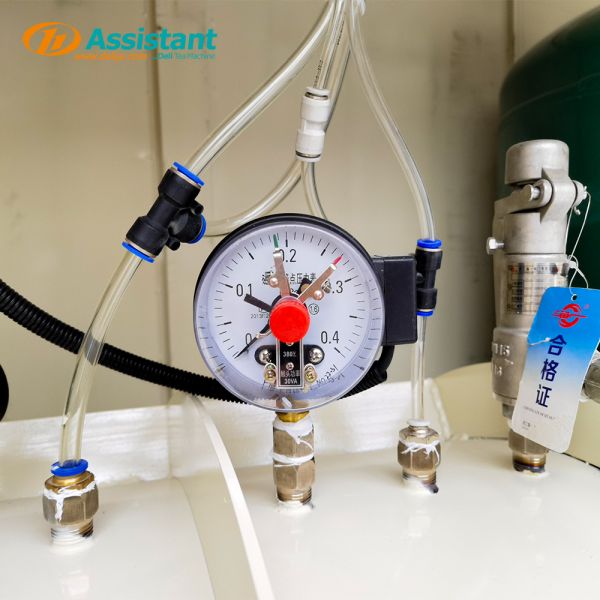

Pressure gauge

The pressure gauge can adjust the safe values of negative pressure and positive pressure inside the
tank, ensuring safety during the production process.

220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070

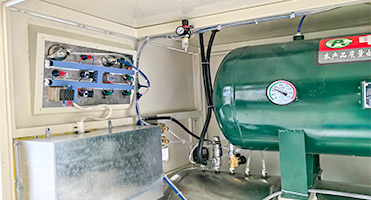

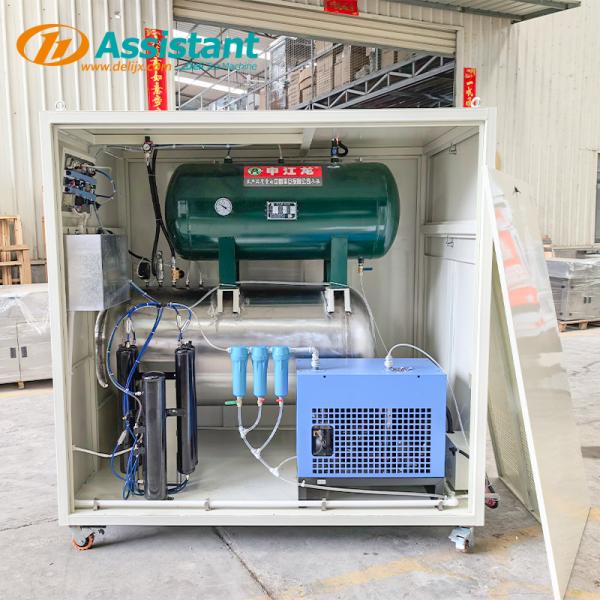

Nitrogen storage tank

* The nitrogen storage tank is characterized by having a pressure safety certificate and equipped with a pressure relief valve.It can also pre-store nitrogen to ensure that the machine can immediately enter working mode when needed.

220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070

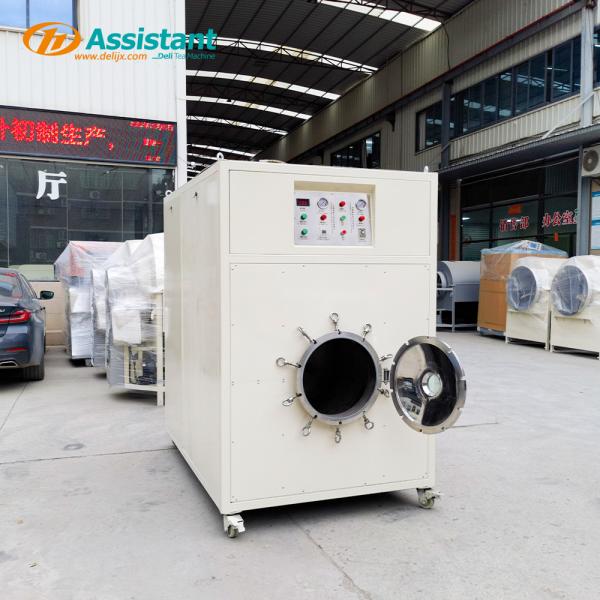

GABA Tea Anaerobic fermentation tank design

1. Made of food-grade stainless steel to ensure the tea leaves’ food safety.
2. Equipped with two safety valves to ensure safety and stability during operation.
3. Features a glass observation window for real-time monitoring of the internal tea leaf condition.
4. Fully sealed design to prevent air leakage and maintain the tea leaves’ anaerobic fermentation environment.

220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070
220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070
220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070
220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070
220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070
220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070
220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070
220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070

If you are interested in tea drying machine, please click here to send us enquiries.

220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070
Obtain ISO9001 quality system certification
More than 30 Chinese honorary certificates
More than 20 Chinese national patent certificates
More than 50 promotion certificates of China Agriculture Ministry
220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070
220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070
220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070
220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070
Customers visit our factories
220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070
220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070
220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070
Part of the our workshop photos
220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070
220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070
220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070
220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070
220V 50/60Hz Fully Automatic GABA Tea NON-OXYGEN Fermentation Tank Machine DL-6CFJT-15070
