Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials
Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials
Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials
Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials
Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials
Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials
Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials
Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials
Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials
Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials
Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials
Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials
Specifications
Condition :
New
Applicable Industries :
Food & Beverage Factory, Retail
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Hot Product 2022
Warranty of core components :
1 Year
Core Components :
Engine, Gear
Brand Name :
DELI ASSISTANT
Place of Origin :
Fujian, China
Voltage :
220v/380v
Power :
1.5w
Dimension(L*W*H) :
6050*2120*2230 mm
Weight :
550 KG
Warranty :
1 Year
Application fields :
tea leaves
Raw material :
tea leaves
Output product name :
tea leaves
Name :
Continuous chain dryer
Motor :
DL-6CHL-CY30
Drying plate size :
30 M2
Drying plate layer :
8
Drying time :
8-90 min
Hot air stove model :
FP-300
Diesel consumption :
95-105 kg/h
Gas consumption :
10 m³/h
Capacity for wet tea :
370 kg/h
Capacity for diret tea :
200 kg/h
Price :
$17,500.00/sets 1-4 sets
Description
Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials
Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials

Tea Garden Management Equipments

Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials

Tea Withering Machine

Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials

Tea leaf fixation machine

Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials

Tea Rolling Machine

Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials

Tea Fermentation Machine

Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials

Tea Dryer Machine

these machine is part of the tea planting and production, If you want to know more information about these machines, or there is no machine you need here.please contact us.
Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials
Diesel oil heating drying machine ( drying box ) parameter:
Model
DL-6CHL-CY10
DL-6CHL-CY20
DL-6CHL-CY30
DL-6CHL-CY40
Size
4400×2020×2540 mm
4640×2120×2230 mm
6050×2120×2230
7500×2120×2230
Voltage
380/50 V/Hz
380/50 V/Hz
380/50 V/Hz
380/50 V/Hz
Drying area
10 m2
20 m2
30 m2
40 m2
Drying plate size
1000×125 mm
1000×125 mm
1000×125 mm
1000×125 mm
Drying plate layer
6
6
8
8
Hot air stove model
FP-100
FP-100
FP-120
FP-150
Fan motor
Power
1.5 KW
2.2 KW
3 KW
3 KW
Speed
1400 rpm
1400 rpm
1400 rpm
1400 rpm
Voltage
220 V
220 V
220 V
380 V
Feed motor
Power
1.5 KW
1.5 KW
2.2 KW
3 KW
Speed
1400 rpm
1400 rpm
1400 rpm
1400 rpm
Voltage
220 V
220 V
220 V
380 V
Feed motor
Power
0.55 KW
0.55 KW
0.55 KW
0.55 KW
Speed
1400 rpm
1400 rpm
1400 rpm
1400 rpm
Voltage
220 V
220 V
220 V
380 V
Production efficiency
95-105 kg/h
110-130 kg/h
140-200 kg/h
170-240 kg/h
The above data is based on fresh tea leaf water content of 75-80%.
there are most machine in our company ,if you want to get bigger machine or other fuel ,please contact us.

Advantage:

1. Using hot air as the medium to make continuous contact with the wet material, so that the water contained in the wet material can be diffused, vaporized and evaporated to remove the heat, thereby achieving the drying purpose;
2. Adopting CNC punching technology, the mesh is flat, the air permeability is good, the structure is firm, the stratified air
enters, the hot air penetrates strongly, the water vapor transmission speed is fast, the water does not accumulate in the tank,and the efficiency is high;
3, using the latest hot gas recovery technology, mechanical heating fast, heat loss is small;
4, the whole machine is strong, the appearance is generous, the lines are tough, the new ultra-low hopper design, stable and practical, easy to dump, high work efficiency; at the same time with high-quality parts, new microcomputer automatic control, easy to operate, stable quality It saves time and effort, and is the ideal machine for drying your materials.
Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials
Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials
Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials
If you are interested in our machine, click here to send us inquiries.

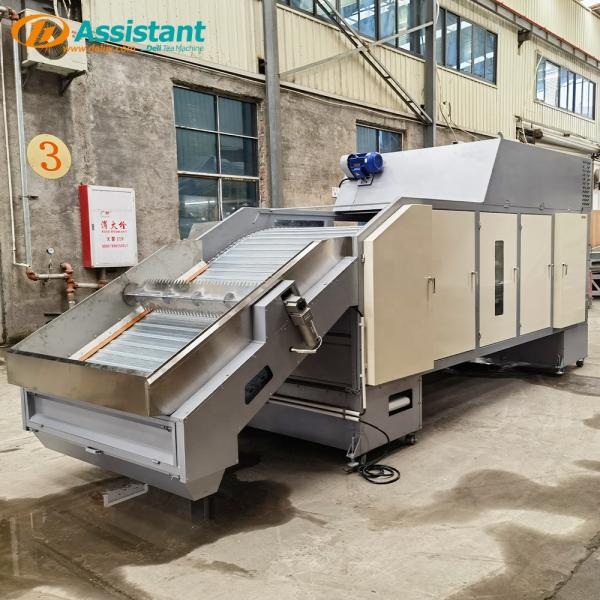

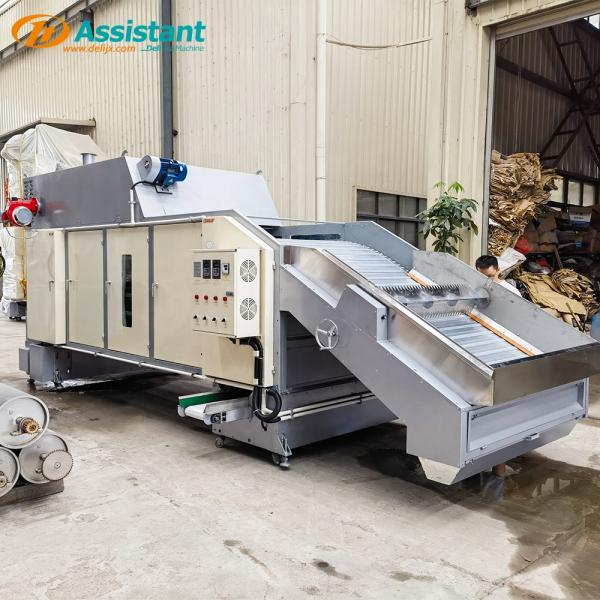

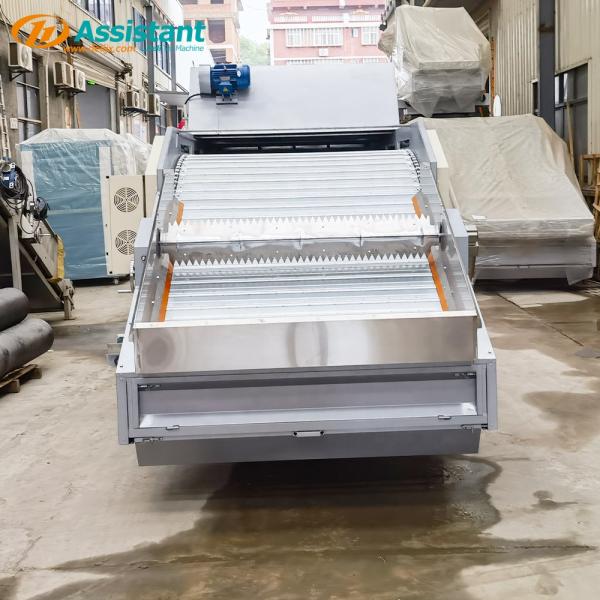

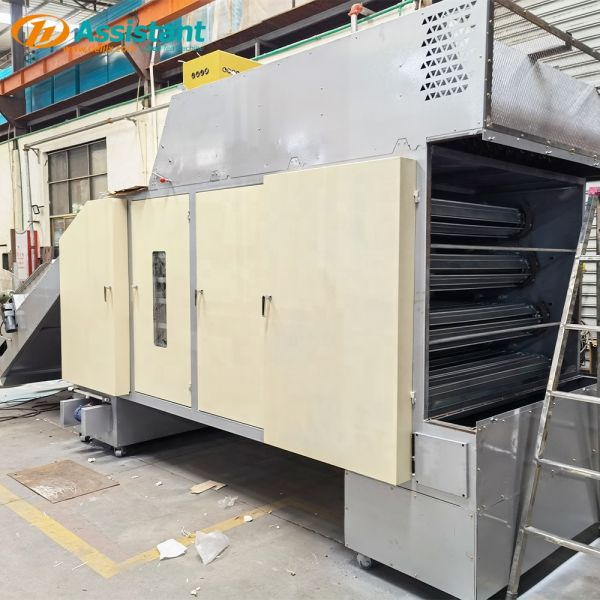

Photos:
Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials
Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials
Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials
Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials
Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials
Obtain ISO9001 quality system certification
More than 30 Chinese honorary certificates
More than 20 Chinese national patent certificates
More than 50 promotion certificates of China Agriculture Ministry
Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials
Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials
Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials
Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials
Customers visit our factories
Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials
Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials
Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials
Part of the our workshop photos
Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials
Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials
Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials
Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials
Large Tea Baking Machine 6050*2120*2230 mm 8-90 min Drying Time for Tea Food Materials
