Specifications
Production Capacity :
40bag/min, 50bag/min, 30bag/min
Weight (KG) :
430
Function :
FILLING, Sealing
Application :
Food, Commodity, Chemical, Machinery & Hardware
Packaging Type :
Bags, Pouch
Packaging Material :
Plastic, Paper
Automatic Grade :
Automatic
Driven Type :
Electric
Voltage :
220v
Place of Origin :
Fujian, China
Brand Name :
DELI ASSISTANT
Dimension(L*W*H) :
1750*740*1950
Warranty :
1 Year
Key Selling Points :
High-accuracy
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Core Components :
Motor, Engine
Power :
1.6 kw
Bag Length :
40-100 mm
Bag Width :
45-75 mm
Packing Speed :
40-60 bag/minutes
Weight Error :
0.2g
Marketing Type :
automatic dip tea bag machine
Type :
Multi-Function Packaging Machine
Applicable Industries :
Building Material Shops
Condition :
New
Price :
$8,500.00/sets 1-9 sets
Description
Compact Dl-Lsdp-Xbw Spice Packing Machine Chai Patti Packing Machine Small Packing Machine
Compact Dl-Lsdp-Xbw Spice Packing Machine Chai Patti Packing Machine Small Packing Machine
Round Tea Bag Packing Machine
Compact Dl-Lsdp-Xbw Spice Packing Machine Chai Patti Packing Machine Small Packing Machine
Pyramid Tea Bag Packing Machine
Compact Dl-Lsdp-Xbw Spice Packing Machine Chai Patti Packing Machine Small Packing Machine
Square Tea Bag Packing Machine
Compact Dl-Lsdp-Xbw Spice Packing Machine Chai Patti Packing Machine Small Packing Machine
Auto Filling And Sealing Machine
Compact Dl-Lsdp-Xbw Spice Packing Machine Chai Patti Packing Machine Small Packing Machine
Manual Continuous Bag Sealing Machine
Compact Dl-Lsdp-Xbw Spice Packing Machine Chai Patti Packing Machine Small Packing Machine
Manual Filling Machine
these machine is Some tea packaging machines, If you want to know more information about these machines, or there is no machine you need here.please contact us
Compact Dl-Lsdp-Xbw Spice Packing Machine Chai Patti Packing Machine Small Packing Machine
Please note: the price on this page is the exact price, including the freight to your nearest port (CIF by sea). You can place an order directly if necessary.
If you need more than one machine, we can give you a discount. Please contact the supplier directly for the specific discount.
OVERVIEW
Compact Dl-Lsdp-Xbw Spice Packing Machine Chai Patti Packing Machine Small Packing Machine

Provide variety of packaging bag solutions

The dip bag packaging machine can pack a variety of materials, such as tea, coffee, herbal tea, etc. It can be switched between bags with / without labels, tags and outer bags. It is a powerful assistant for high-end tea, coffee and other food packaging.
according to the different needs of different customers, we can provide packaging of different materials, whether it is granule,powder, liquid packaging, or packaging by weight or quantity, we can provide a complete set of solutions.

DESCRIPTION

Full automatic price tea packing machine/Filter tea bag packing machine/Small sachets tea bag packing machine, used for make dip tea bags, filter paper tea bag 1-8g with tagged filter paper tea bag.
Multi-purpose weighing filling machine with sealer is made of stainless steel with stable performance,lower consumption,high efficiency, safety and cleanness,it's an ideal equipment which can be used for packing food,tea,herb,dry
powder,granules,seeds,grain,wheat,beans,small hardware and components etc.
Compact Dl-Lsdp-Xbw Spice Packing Machine Chai Patti Packing Machine Small Packing Machine

ADVANTAGE

1. The dip tea bag packing machine is suitable for the non-returnable packaging of the inner and outer bag of small particulate materials such as: tea, herbal tea, health tea grass-root type and so on.
2. Inner and outer bag's film drawing is controlled by the stepper motor, stable bag length and accurate positioning.
3. The temperature controller is adjusted by PID to make the temperature control more accurate.
4. Overall machine movement is controlled by PLC, with human-machine interface display, ensure health of products.
5.Packing material:filter paper, thread, composite membrane and labels.

SPECIFICATION

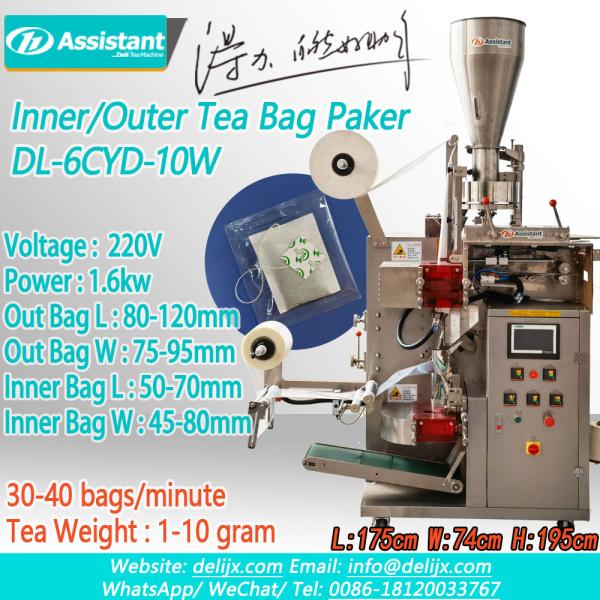

Dip tea bag packing machine specification list:
Model
DL-6CYD-10W
Voltage
220V / 50HZ
Dimension
1750*740*1950mm
Power
1.6 kw
Inner Bag Length
40-100 mm
Inner Bag Width
45-75 mm
Outer Bag Length
80-120 mm
Outer Bag Width
75-95 mm
Packing Speed
30-40 bag/minutes
Weight Error
± 0.2g
Air pressure
≥ 0.4 m³/minute
Machine weight
430 kgs
If you have special need, it can be customized according to the needs of customers.

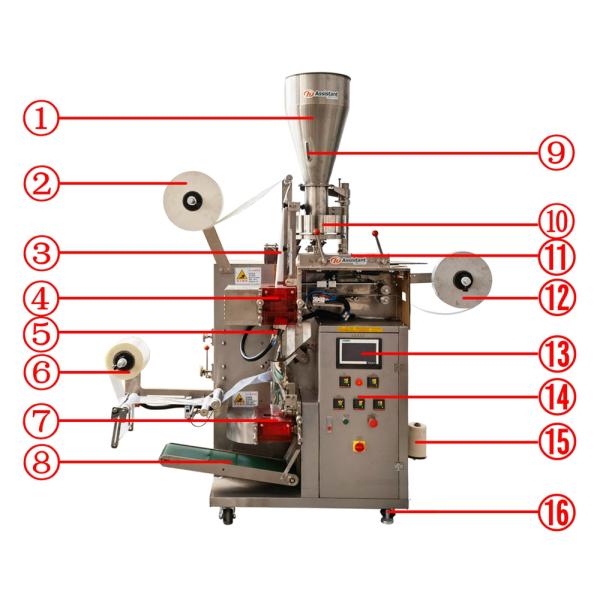

DIAGRAM
Compact Dl-Lsdp-Xbw Spice Packing Machine Chai Patti Packing Machine Small Packing Machine
1
Materials Hopper
9
Observation window
2
Inner Paper Roll
10
Filling Disc
3
Inner Bag Former
11
Filling Disc Adjuster
4
Inner Bag Sealer
12
Label Tag Roll
5
Inner Bag Clip
13
PLC Screen
6
Outer Bag Roll
14
Button Control Area
7
Outer Bag Sealer
15
Cotton Thread Roll
8
Finished Bag Conveyor
16
Support Wheels
This manual pouch sachet filling machine can pack a variety of materials to meet your needs of different packaging.
Details
Compact Dl-Lsdp-Xbw Spice Packing Machine Chai Patti Packing Machine Small Packing Machine

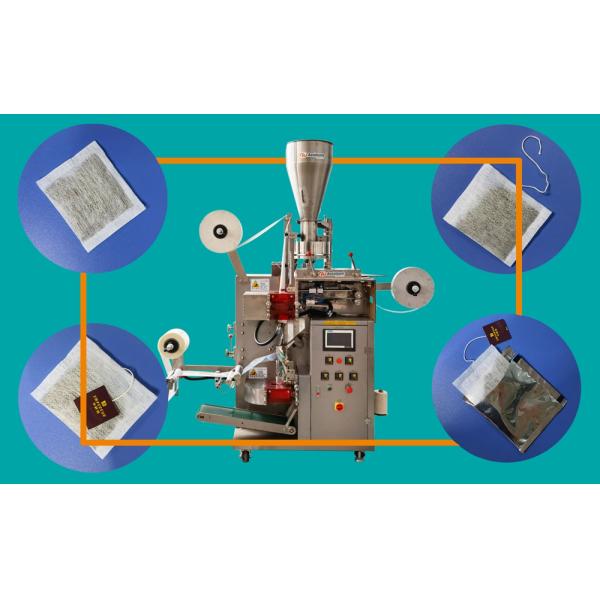

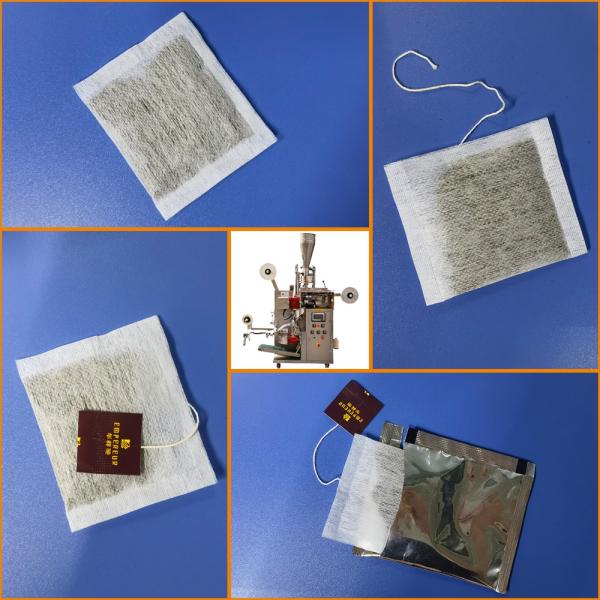

One machine with multiple functions

This machine has multiple functions and can pack 6 different types of tea bags. If you want to know more, please feel free to contact us.
Compact Dl-Lsdp-Xbw Spice Packing Machine Chai Patti Packing Machine Small Packing Machine

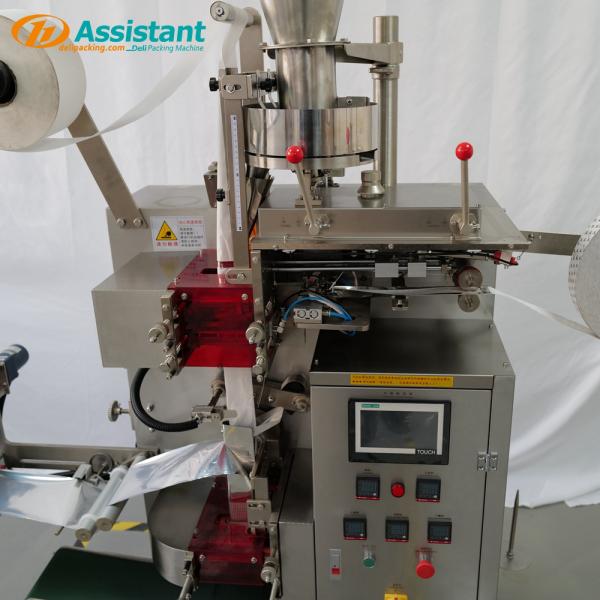

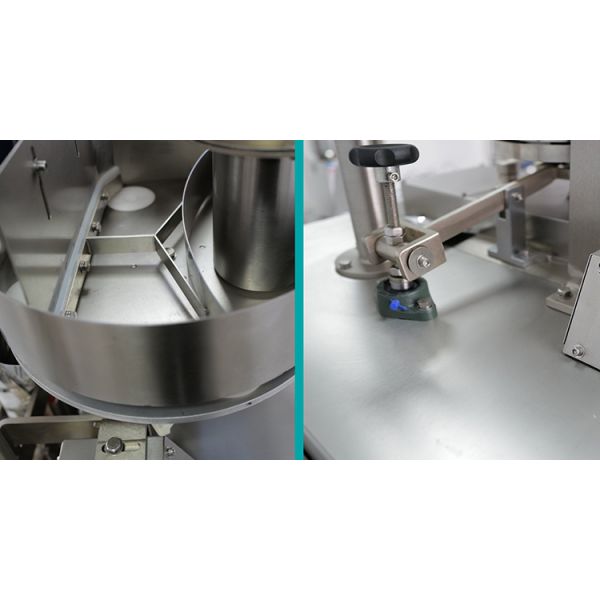

Simple operation

The volume of the feeder can be adjusted freely, so that the amount of tea in the tea bag can be adjusted quickly.
Compact Dl-Lsdp-Xbw Spice Packing Machine Chai Patti Packing Machine Small Packing Machine

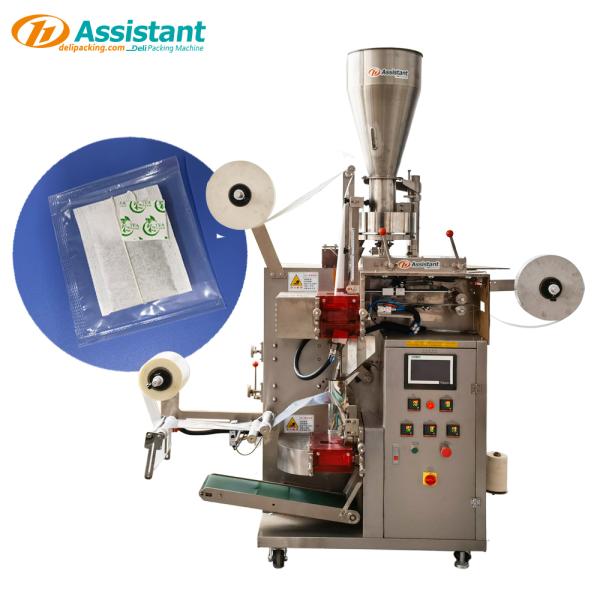

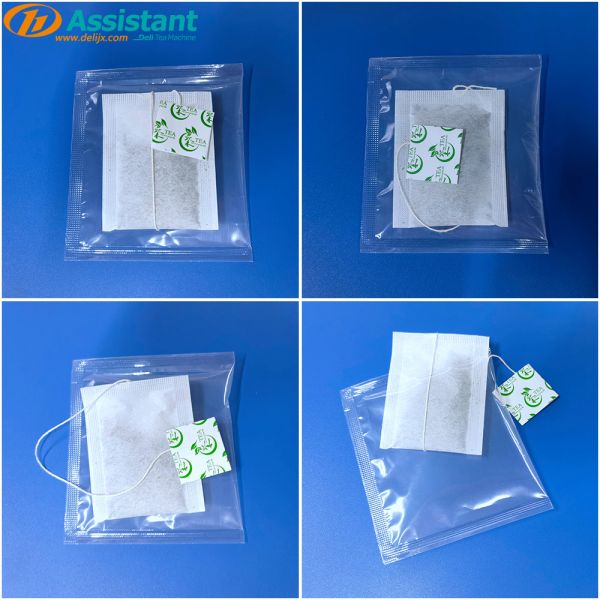

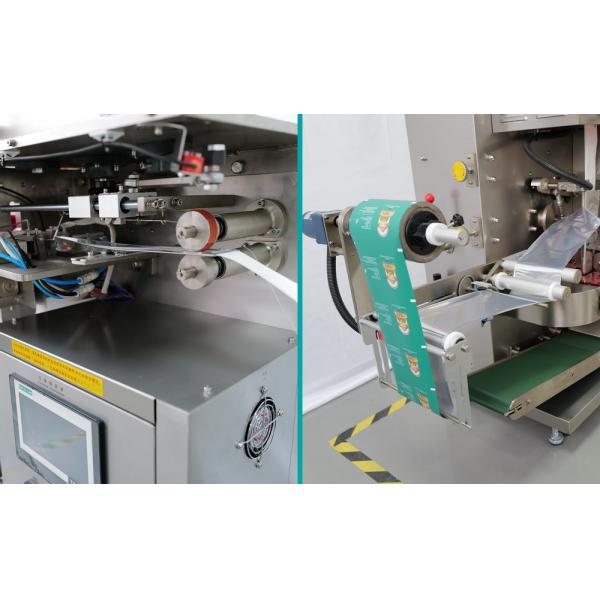

With label and outer bags

This machine can pack several types of bags, the basic type only includes the inner bag. In addition, it can be equipped with belt line, label, outer bag and other functions. A variety of machines can meet your various needs.

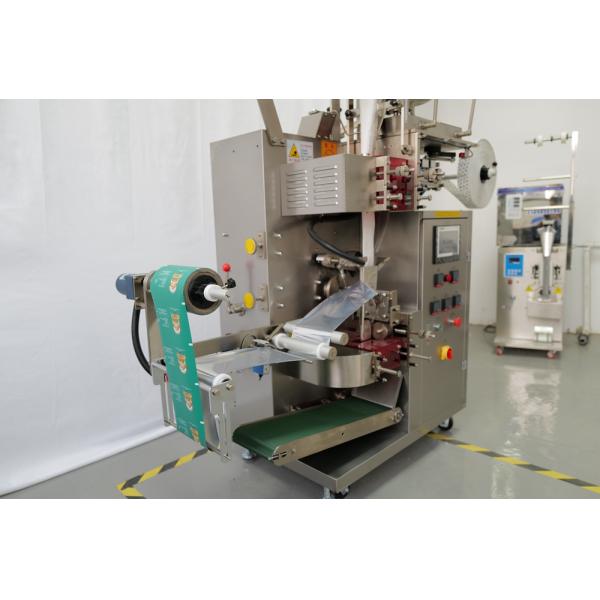

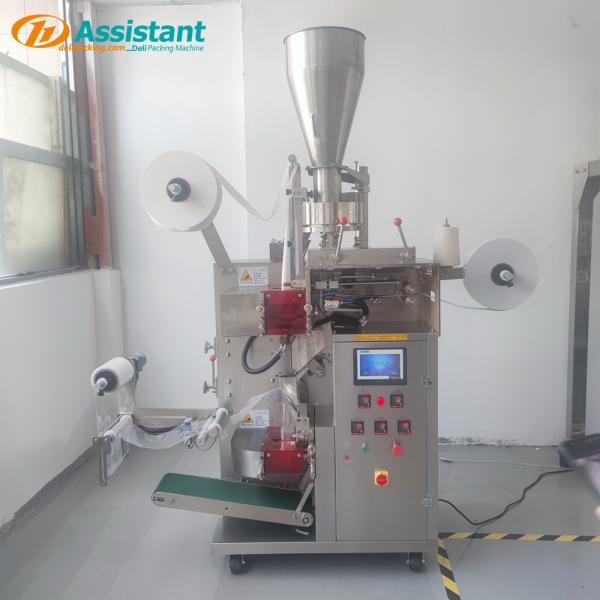

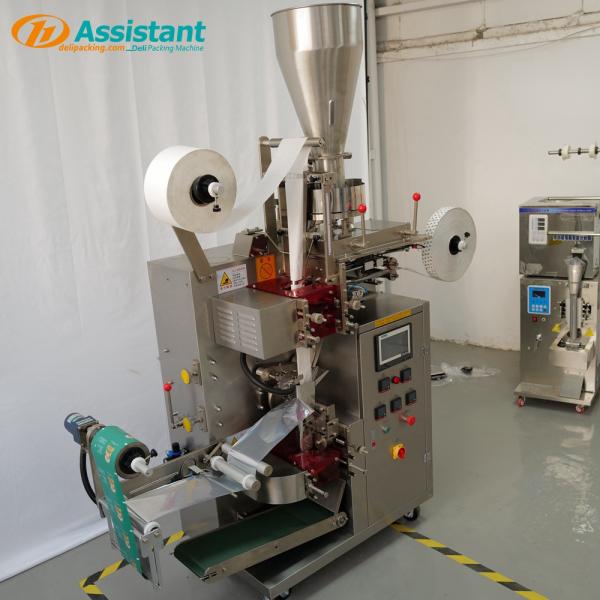

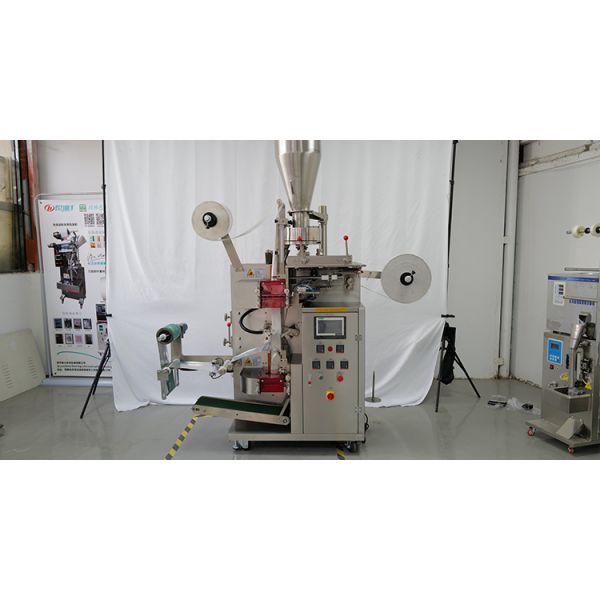

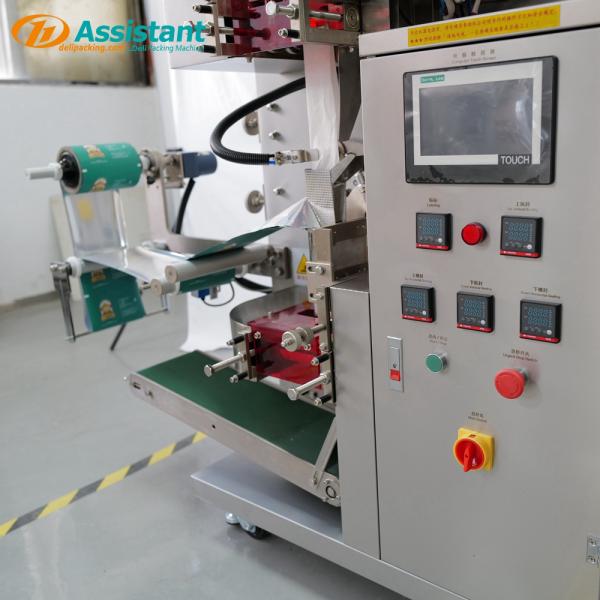

PHOTOS
Compact Dl-Lsdp-Xbw Spice Packing Machine Chai Patti Packing Machine Small Packing Machine
Compact Dl-Lsdp-Xbw Spice Packing Machine Chai Patti Packing Machine Small Packing Machine
Compact Dl-Lsdp-Xbw Spice Packing Machine Chai Patti Packing Machine Small Packing Machine
Compact Dl-Lsdp-Xbw Spice Packing Machine Chai Patti Packing Machine Small Packing Machine
Compact Dl-Lsdp-Xbw Spice Packing Machine Chai Patti Packing Machine Small Packing Machine
Compact Dl-Lsdp-Xbw Spice Packing Machine Chai Patti Packing Machine Small Packing Machine
Compact Dl-Lsdp-Xbw Spice Packing Machine Chai Patti Packing Machine Small Packing Machine
Compact Dl-Lsdp-Xbw Spice Packing Machine Chai Patti Packing Machine Small Packing Machine
Compact Dl-Lsdp-Xbw Spice Packing Machine Chai Patti Packing Machine Small Packing Machine
The above is the product details. If you want to know more, you can inquire us
Compact Dl-Lsdp-Xbw Spice Packing Machine Chai Patti Packing Machine Small Packing Machine
Obtain ISO9001 quality system certification
More than 30 Chinese honorary certificates
More than 20 Chinese national patent certificates
More than 50 promotion certificates of China Agriculture Ministry
