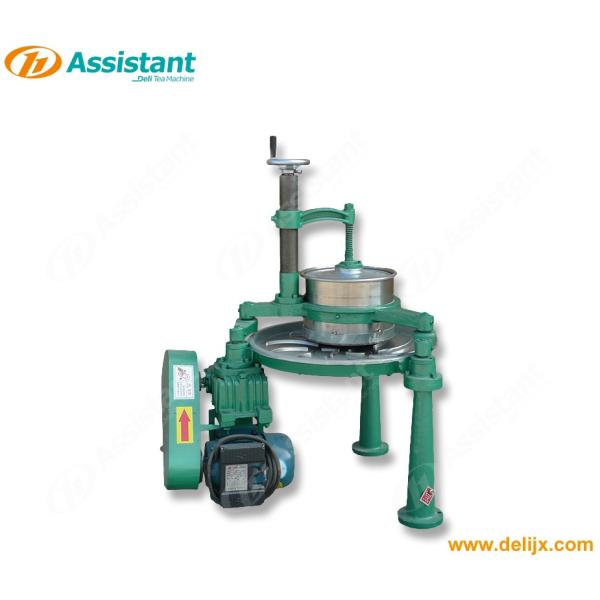

Tea leaf fixation machine
Model | DL-6CRT-50 |
Dimension | 1020*1100*1300 mm |
Voltage | 380V / 50Hz |
Power | 2.2kw |
Tea disc diameter | 1000 mm |
Barrel diameter | 500 mm |
Barrel height | 280 mm |
Barrel speed | 60 RPM |
Productivity | 20 kg/h |
Maximum capacity per time | 20 kg/time |
The above data is based on fresh tea leaf water content of 30-40%
For non-fermented tea such as green tea: For green tea, the main function of tea rolling machine is shaping.
Through the action of external force, tea rolling machine makes the leaves smash and light, the tea roll turns into a strip shape, and the volume is reduced, which is good for brewing.
For fermented tea such as black tea: Through the external force of the tea rolling machine, the tea cells are damaged, the tea juice overflows, accelerates the enzymatic oxidation of polyphenolic compounds, facilitates fermentation, lays a foundation for the formation of the unique taste of the fermented tea.
Tea rolling machine can use for most of tea such as black tea, green tea, and oolong tea.
① | Transverse arm | ⑧ | Support column |
② | Barrel cover | ⑨ | Rolling disc |
③ | Stainless steel Drum | ⑩ | Handwheel |
④ | Crank | ⑪ | Support frame |
⑤ | Transmission case | ⑫ | Tea discharge handle |
⑥ | Transmission belt | ⑬ | Tea outlet |
⑦ | Drive motor | ⑭ | Support leg |
Model | Barrel Diameter | Barrel Height | Capacity |
DL-6CRT-25 | 25 cm | 18 cm | 3 kg/batch |
DL-6CRT-30 | 30 cm | 21 cm | 5 kg/batch |
DL-6CRT-35 | 35 cm | 26 cm | 8 kg/batch |
DL-6CRT-40 | 40 cm | 25 cm | 11 kg/batch |
DL-6CRT-45 | 45 cm | 28 cm | 15 kg/batch |
DL-6CRT-50 | 50 cm | 28 cm | 20 kg/batch |
DL-6CRT-55 | 55 cm | 40 cm | 35 kg/batch |
DL-6CRT-65 | 65 cm | 48 cm | 60 kg/batch |
DL-6CRT-75 | 75 cm | 58 cm | 100 kg/batch |
DL-6CRT-85 | 85 cm | 70 cm | 240 kg/batch |
DL-6CRT-90 | 90 cm | 100 cm | 300 kg/batch |
Tea rolling barrel made of stainless steel, rolling plate and rolling strip made of aluminum, It will not rust and produce no harmful substances to human body.
Professional design of kneading plate tilt angle and kneading strip radian, the speed of forming tea is 30% faster.
The side is higher than plate, prevent tea leaves ralling from the tea rolling machine.
Can custom all stainless steel or full copper type, if you need these type tea rolling machine, please tell us.
Stable gearbox, crank and support frame , ensure smooth and safe operation of tea kneading machines
Powerful copper core drive motor, provide a steady source of power for tea kneading machines.
Convenient handwheel, the barrel lid is pressurized by springs, and can be rotated, quality of tea more higher.
Professional design of kneading plate tilt angle and kneading strip radian, the speed of forming tea and pour out tea leaf is 30% faster.
We have 30 stocks for each model of tea rolling machines, delivery is fast, no need to wait.
If you are interested in tea rooling machine, click here to send us enquiries.
