Introduction:

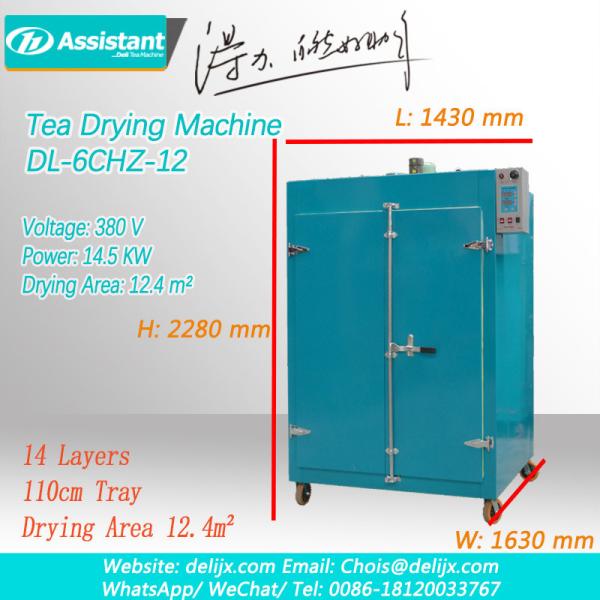

DL-6CHZ-12 tea leaf drying machine has 12 layers tray, each tray diameter 110cm, drying area 12.4m², heating by electric heating wire, total power 3kw, maximum temperature can be 250℃.

Because the electric heating dryer is not affected by the external environment, season, climate, etc., and can work for several hours continuously, and can well guarantee the quality, color, appearance, fragrance of materials, and can meet the drying requirements of a variety of different materials, in addition to the drying effect of tea Drying operation, it can also be applied to seafood, meat, fruits and vegetables, seeds, herbs and grains .etc
Due to the unique air duct and rotary drying design, our machines are 30% more efficient than other companies’ dryer!

	Model	DL-6CHZ-12
	Dimension	1430*1630*2280mm
	Voltage	380V
	Heating Type	Electric Heating Wire
	Heating Power	14.5 KW
	Pallet Rotary Speed	6 RPM
	Pallet Diameter	110 cm
	Pallet Layers	12 Layers
	Drying Area	12.4 m²
	Efficiency	145 kg/h

The above data is based on fresh tea leaf water content of 75-80%.

For drying machines, we have many kinds, these are our drying machine's spefications:

For more details, please search the model in our website, or click the model number, or click here to view more dryers.

In order to meet the requirements of customers in different regions for food hygiene, we can provide stainless steel type machine:

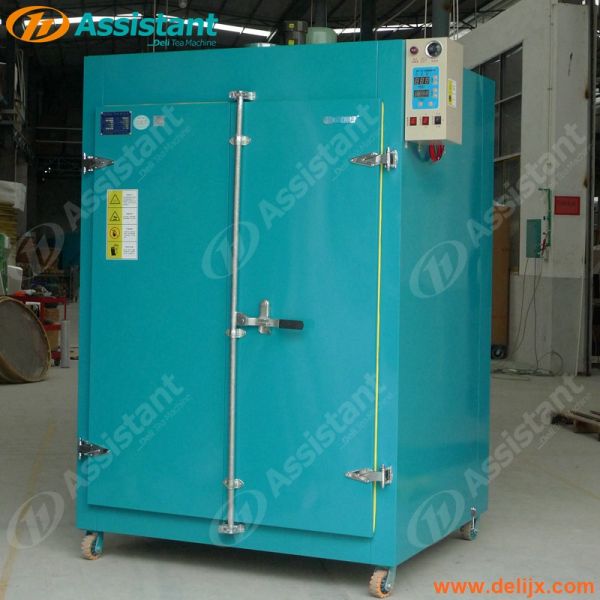

(The following photos may not 6CHZ-12 drying machine, for reference only.)

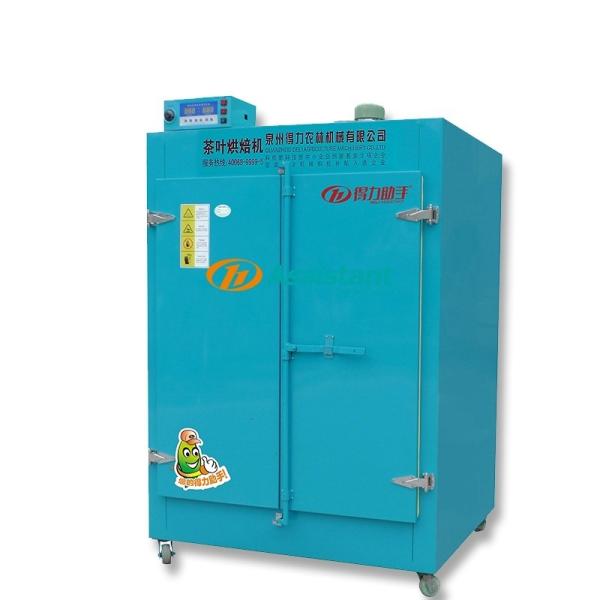

Normal type	Inside stainless steel	All stainless steel

	1	Exhaust vent
	2	Hinge
	3	Door
	4	Nylon wheel
	5	Drive motor
	6	Electric control panel
	7	Tank body
	8	Sealing strip

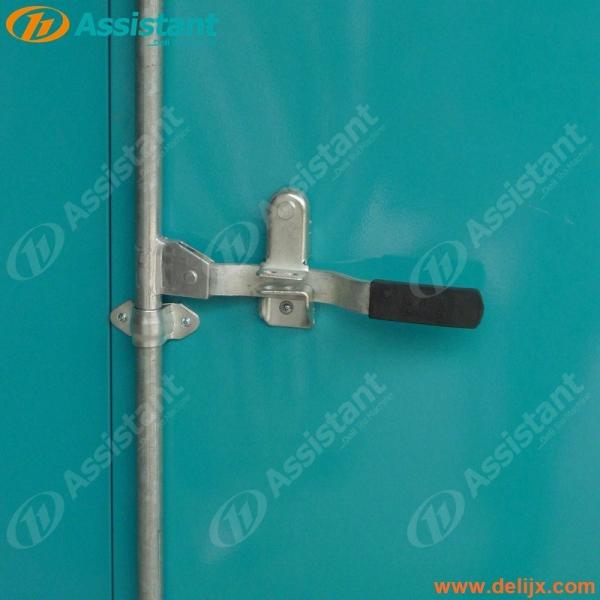

	9	Open handle

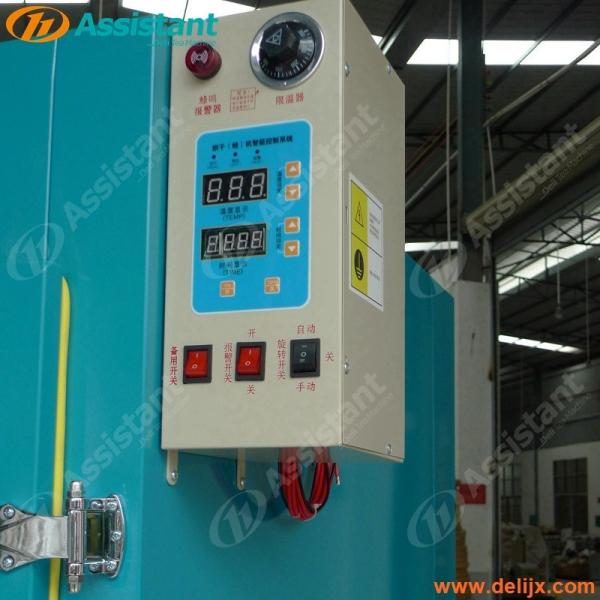

Integrated intelligent temperature and time control system, simple operation, precise control, automatic memory of last parameter.
Double temperature control design, prevent the materials from being damaged by too high temperature, automatically alarm and stop heating when heating time is over.

New environmental protection and heat preservation materials are adopted, and the door is equipped with heat preservation rubber strip, which makes the heat insulation more excellent and energy-saving.

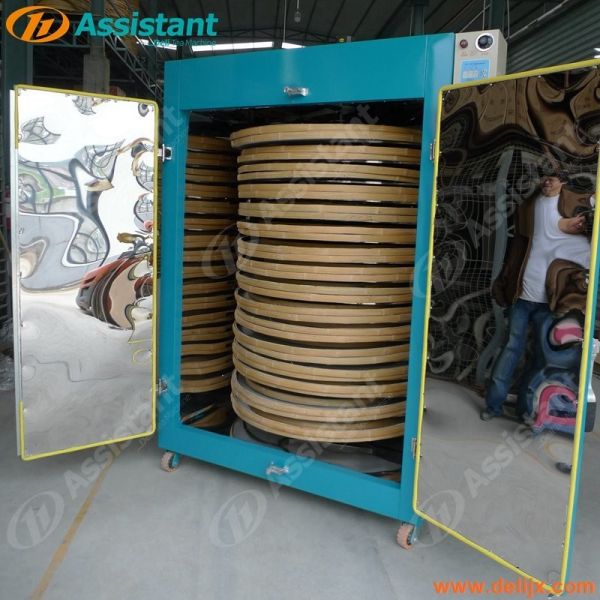

Rotary type trays, with unique hot air outlet design, and the use of pure copper core motor, to ensure the uniformity of drying, but also to ensure the appropriate air volume, hot and humid air can be quickly discharged from the inside of the machine, to ensure the color, quality and uniformity of tea or other food.

If you are interested in our machine, click here to send us inquiries.

All models of our machines are in stock. Our delivery time is usually about 1-2 days.

Because tea production equipment is a large cargo, we usually deliver them to you by sea.

1. We will wrap them with waterproof film to prevent water from damaging the machine.
2.Wrap cartons or foam boards outside the machine to prevent machine collision and damage.
3.On the outermost layer, we will build an steel or wooden frame to reinforce the machine, not afraid of bumps in the process of transportation, and facilitate forklift loading.

Obtain ISO9001 quality system certification

More than 30 Chinese honorary certificates

More than 20 Chinese national patent certificates

More than 50 promotion certificates of China Agriculture Ministry

Our products are all over the world, in Russia, Eastern Europe, India, Sri Lanka, Vietnam, Southeast Asia, South America, Africa and other regions, you can see our products.

Here are some of our major partners: ARPICO, TMAX, AGROSOFT, MELCONS, CHINA-URAL.RU, AGROFIL HUYRO and so on

Every year, dozens of foreign customers come to visit our factory, and we provide them with various solutions for tea production.

Our factory covers an area of 16000m², all kinds of equipment are in stock, all machines are modular production, low failure rate, fast maintenance, short production time, is your right assistant in tea processing.
