Specifications
Brand Name :
DELI ASSISTANT
Place of Origin :
Fujian, China
Warranty :
1 Year
Application fields :
For Tea Processing
Machinery Capacity :
125-145 kg/h
Machinery Function :
For Tea Leaf Drying
After-sales Service Provided :
Video technical support
Name :
Continious belt type tea leaf dryer
Model :
DL-6CHL-CY24
Voltage :
220V/50Hz
Dimension :
5260*2120*2230 mm
Drying area :
24 m2
Drying layers :
6 layers
Fuel :
Diesel oil
Production efficiency :
125-145 kg/h
Drying time :
8-50 min
Heating element :
Diesel engine combustor
Type :
Continious belt type tea leaf dryer
Packaging Details :
Chain plate belt type tea leaf dryer continuous tea dryer machine tea drying machine DL-6CHL-CY packing in contanier
Port :
Xiamen port, china
Supply Ability :
20 Set/Sets per Month
Price :
$10,000.00/sets 1-9 sets
Description
Related Products
Related Products:
DL-6CHL-CY Tea Drying Machine for Tea Processing and Chain Plate Belt Type DesignDL-6CHL-CY Tea Drying Machine for Tea Processing and Chain Plate Belt Type DesignDL-6CHL-CY Tea Drying Machine for Tea Processing and Chain Plate Belt Type Design
Tea Garden MachineTea Processing MachineTea Packing Machine

Click here to view more our products

Product Description

Parameter:

DL-6CHL-CY Tea Drying Machine for Tea Processing and Chain Plate Belt Type Design

ModelDL-6CHL-CY24DL-6CHL-CY32
Size5260×2120×2230 mm6380×2120×2230 mm
Voltage380/50 V/Hz380/50 V/Hz
Drying area24 m232 m2
Drying plate later68
Drying time8-50 min8-90 min
Heating elementDiesel engine combustorDiesel engine combustor
FuelDiesel oilDiesel oil
Fan motorPower2.2 KW3 KW
Speed1400 rpm1400 rpm
Voltage380 V380 V
Drive motorPower1.5 KW1.5 KW
Speed1400 rpm1400 rpm
Voltage380 V380 V
Feed motorPower0.2 KW0.2 KW
Speed1400 rpm1400 rpm
Voltage380 V380 V
Production efficiency125-145 kg/h140-160 kg/h

The above data is based on fresh tea leaf water content of 75-80%.

Description:

Advantage:

1. The diesel engine imported from Japan is used with precise computer program control to ensure that the fuel is fully burned, achieving the highest thermal efficiency, energy saving and environmental protection;
2.Using the latest hot gas recovery technology, mechanical heating fast, heat loss is small;
3.Using the latest CNC punching technology, the mesh is flat, the air permeability is good, the water vapor transmission speed is fast, the water in the tank does not accumulate, ensuring that the color of the drying material is more fresh green;
4.The whole machine is strong, the appearance is generous, the lines are tough, the new ultra-low hopper design, stable and practical, easy to dump, high work efficiency; at the same time with high-quality parts, new microcomputer automatic control, easy to operate, stable quality It saves time and effort, and is the ideal machine for drying your materials.

Details:
DL-6CHL-CY Tea Drying Machine for Tea Processing and Chain Plate Belt Type DesignDL-6CHL-CY Tea Drying Machine for Tea Processing and Chain Plate Belt Type Design
Diesel oild heating chain plate belt type dryer machine can be used with single machine to save cost.Diesel oild heating chain plate belt type dryer machine can be used with continious tea processing equipments, high degree of automation, making tea faster.
DL-6CHL-CY Tea Drying Machine for Tea Processing and Chain Plate Belt Type DesignDL-6CHL-CY Tea Drying Machine for Tea Processing and Chain Plate Belt Type Design

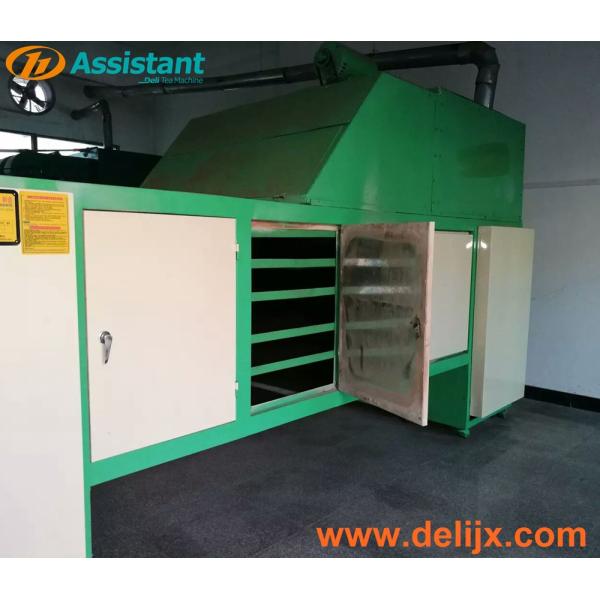

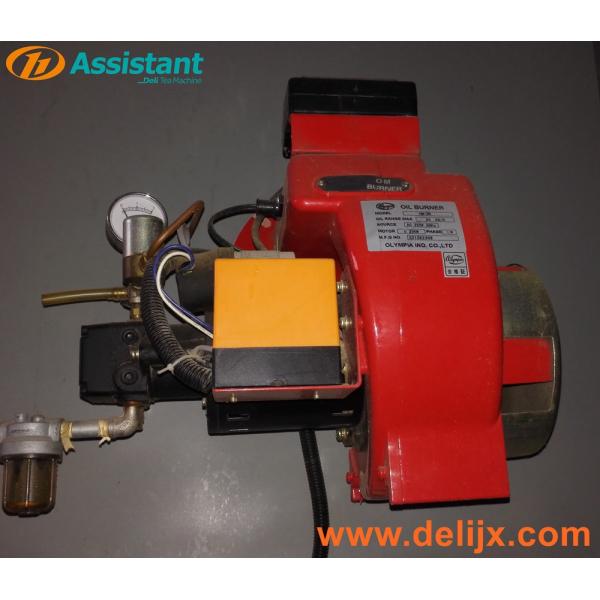

Adopting the diesel engine imported from Japan, with precise computer program control, ensuring full fuel combustion, achieving the highest thermal efficiency, energy saving and environmental protection.The door type design is used to replace the chain board more quickly, and the maintenance is more convenient.

If you are interested in our machine, click here to send us inquiries.

Photos:
Photos:

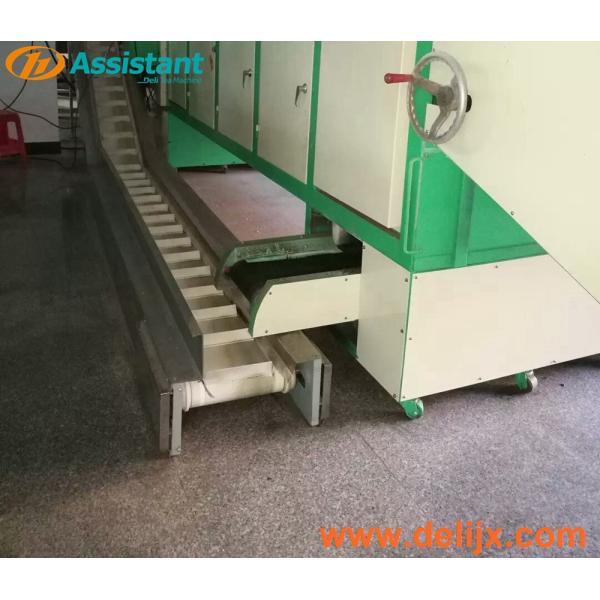

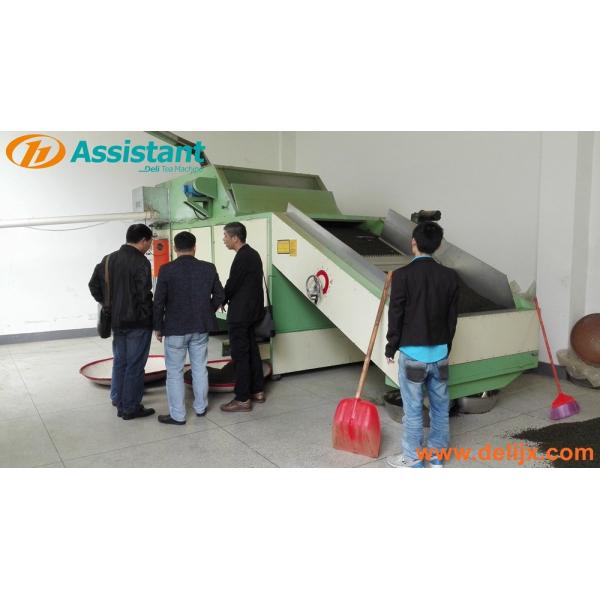

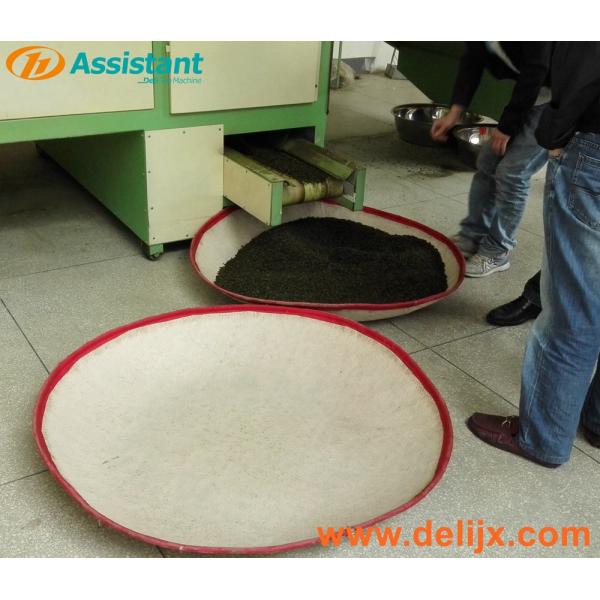

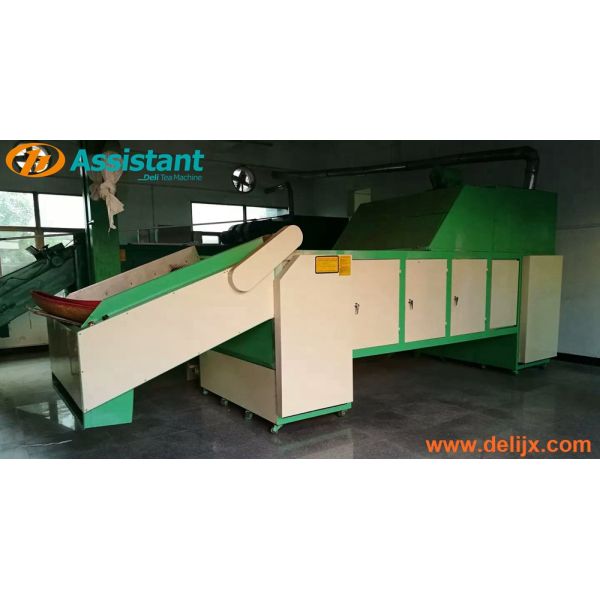

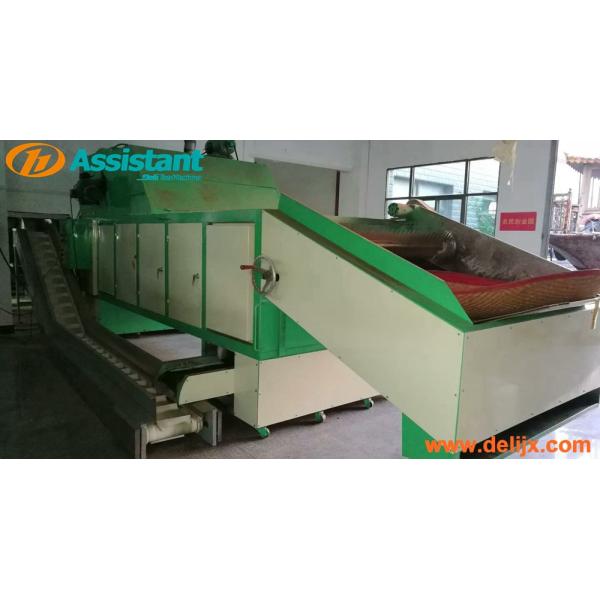

DL-6CHL-CY Tea Drying Machine for Tea Processing and Chain Plate Belt Type Design
DL-6CHL-CY Tea Drying Machine for Tea Processing and Chain Plate Belt Type Design
Packing & Delivery
Packing & Delivery:

All models of our machines are in stock. Our delivery time is usually about 1-2 days.

Because tea production equipment is a large cargo, we usually deliver them to you by sea.

1. We will wrap them with waterproof film to prevent water from damaging the machine.
2.Wrap cartons or foam boards outside the machine to prevent machine collision and damage.
3.On the outermost layer, we will build an steel or wooden frame to reinforce the machine, not afraid of bumps in the process of transportation, and facilitate forklift loading.

DL-6CHL-CY Tea Drying Machine for Tea Processing and Chain Plate Belt Type Design

Company Information
Certificate:

Obtain ISO9001 quality system certification

More than 30 Chinese honorary certificates

More than 20 Chinese national patent certificates

More than 50 promotion certificates of China Agriculture Ministry

DL-6CHL-CY Tea Drying Machine for Tea Processing and Chain Plate Belt Type Design

Our Customer:

Our products are all over the world, in Russia, Eastern Europe, India, Sri Lanka, Vietnam, Southeast Asia, South America, Africa and other regions, you can see our products.

Here are some of our major partners: ARPICO, TMAX, AGROSOFT, MELCONS, CHINA-URAL.RU, AGROFIL HUYRO and so on

Every year, dozens of foreign customers come to visit our factory, and we provide them with various solutions for tea production.

DL-6CHL-CY Tea Drying Machine for Tea Processing and Chain Plate Belt Type Design

Our Factory:

Our factory covers an area of 16000m², all kinds of equipment are in stock, all machines are modular production, low failure rate, fast maintenance, short production time, is your right assistant in tea processing.

DL-6CHL-CY Tea Drying Machine for Tea Processing and Chain Plate Belt Type Design
