Specifications
Condition :
New
Applicable Industries :
Tea
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Not Available
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
Control panel
Brand Name :
DELI ASSISTANT
Place of Origin :
Fujian, China
Voltage :
380V/50Hz
Power :
15 KW
Dimension(L*W*H) :
1000*1050*5800 mm
Weight :
300 KG
Warranty :
1 Year
Application fields :
Tea
Machinery Function :
For white tea green tea black tea withering
Output product name :
tea leave
Name :
Green Tea Leaves Wither Machine
Dimension :
1000*1050*5800 mm
Heating element :
Heating wire
Total heating power :
15 KW
Fan power :
250 W
Motor speed :
2200 rpm
Disk size :
980*5000*200 mm
Output :
200 Kg/times
After Warranty Service :
Video technical support
Certification :
CE, ISO
Packaging Details :
Tea leaf wither withering wilting machine for black green tea withering process with 5 m2 area DL-6CWD-500 packing in wooden case or rack
Port :
Xiamen port, china
Supply Ability :
100 Set/Sets per Month
Price :
$2,099.00/sets 1-4 sets
Description
Related Products
DL-6CWD-500 Green/Black Tea Wither Machine 2200 rpm Motor Speed for Optimal Withering

Tea wither equipment

DL-6CWD-500 Green/Black Tea Wither Machine 2200 rpm Motor Speed for Optimal Withering

Tea fixation roasting equipment

DL-6CWD-500 Green/Black Tea Wither Machine 2200 rpm Motor Speed for Optimal Withering

Tea fixation roasting pot

DL-6CWD-500 Green/Black Tea Wither Machine 2200 rpm Motor Speed for Optimal Withering

Tea rolling equipment

DL-6CWD-500 Green/Black Tea Wither Machine 2200 rpm Motor Speed for Optimal Withering
Intelligent tea fermentation machine
DL-6CWD-500 Green/Black Tea Wither Machine 2200 rpm Motor Speed for Optimal Withering

Temperature control drying machine

DL-6CWD-500 Green/Black Tea Wither Machine 2200 rpm Motor Speed for Optimal Withering

Granular tea molding equipment

DL-6CWD-500 Green/Black Tea Wither Machine 2200 rpm Motor Speed for Optimal Withering

Tea cake press molding equipment

DL-6CWD-500 Green/Black Tea Wither Machine 2200 rpm Motor Speed for Optimal Withering

Tea wind sorting equipment

Click here to view more our products

Farm and garden equipments

Earth auger

Tea harvester

Brush cutters

Hedge trimmer

Power sprayer

Food processing equipments

Tea processing single machine

Tea processing whole sets machines

Tea processing auxiliary equipment

Food drying machines

Food roasting machines

Packing equipments

Vacuum machine

Split packing machine
Liquid packing machine
Vacuum packing machine

Tea bag packing machine

Product Description

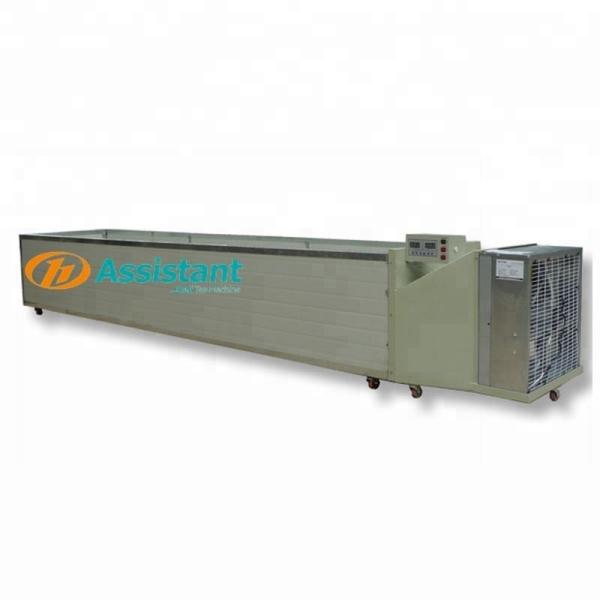

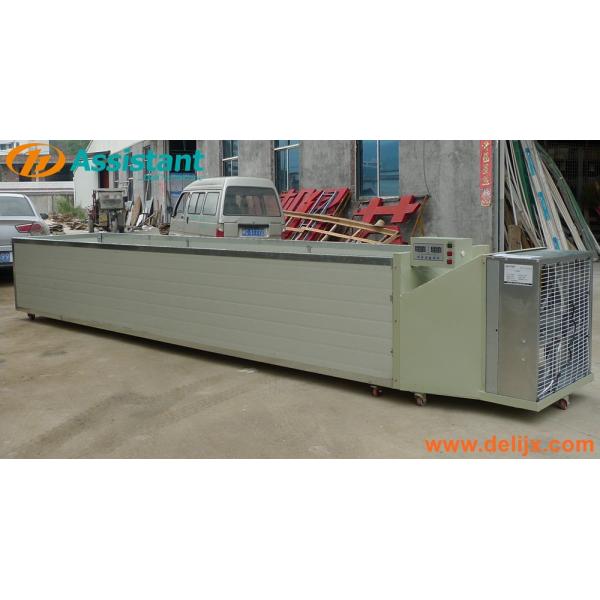

DL-6CWD-500 Green/Black Tea Wither Machine 2200 rpm Motor Speed for Optimal Withering
Model
DL-6CWD-500
Dimension
1000×1050×5800 mm
Voltage
380V / 50Hz
Heating element
Electric heating wire
Heating power
15 KW
Motor power
250 W
Motor speed
2200 rpm
Disk size
980×5000×200 mm
Efficiency
200 kg/time

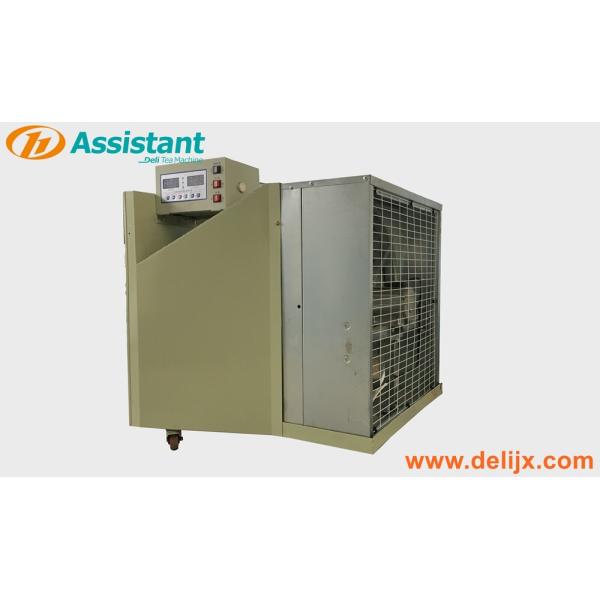

Separate mainframe design

Designed by separate main engine, withering trough and main engine can be used separately.


Easy maintenance, small space and low cost in transportation.

DL-6CWD-500 Green/Black Tea Wither Machine 2200 rpm Motor Speed for Optimal Withering

Tea withering machine description:

By controlling the temperature of the box wind, the withering process can be adjusted adaptively in different seasons, making the withering process of the fine black tea simpler; at the same time, the fresh leaves evaporate quickly and wither and evenly overcome the bad weather. The influence of tea quality

Tea wither machine application:

Black tea, oolong tea and other tea which need to ferment

Tea wither machine advantage:

1. Withering machine can reduce costs and improve work efficiency;
2. Using advanced integrated circuits, time and temperature control at a glance
3. Small footprint, large output per unit area, cost saving

Intelligent microcomputer control system

Intelligent microcomputer control system can adjust the withering time and temperature according to the demand. It has two modes, manual and automatic. It stops automatically at the end of the time and will alarm. It is suitable for the withering operation of tea leaves in various environments and makes the tea quality higher.
DL-6CWD-500 Green/Black Tea Wither Machine 2200 rpm Motor Speed for Optimal Withering
DL-6CWD-500 Green/Black Tea Wither Machine 2200 rpm Motor Speed for Optimal Withering

High power motor

The special motor of negative pressure fan is used to ensure that the hot air can be continuously conveyed to the tea leaves, so that the tea can be heated evenly.

DL-6CWD-500 Green/Black Tea Wither Machine 2200 rpm Motor Speed for Optimal Withering

3 sets heating element

Using three sets of electric heating modules, the total power can reach 15kw, the three heating elements are evenly distributed to ensure that all the tea leaves are evenly heated.

DL-6CWD-500 Green/Black Tea Wither Machine 2200 rpm Motor Speed for Optimal Withering

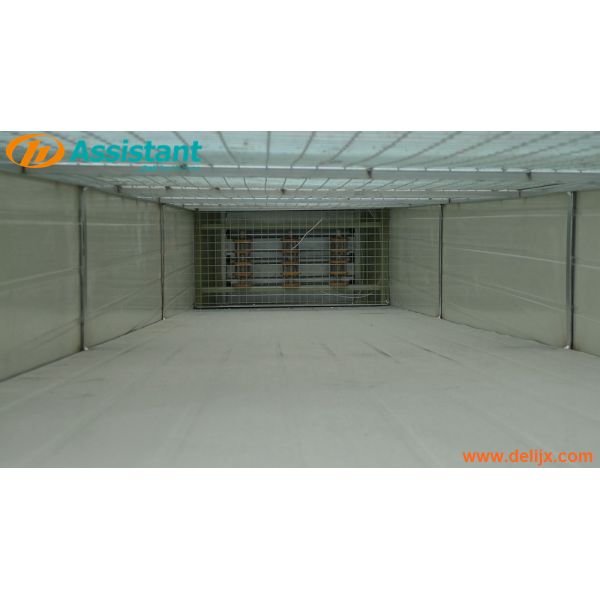

Small and dense mesh

The mesh is small and dense, which ensures that the tea leaves will not fall off, and the hot air is blown more evenly from the bottom to ensure that the tea leaves are heated.

DL-6CWD-500 Green/Black Tea Wither Machine 2200 rpm Motor Speed for Optimal Withering

Large air duct design

Large hot air passage, with high-power fan, ensure that every tea leaves can be subjected to hot air, ensure the same quality of tea

DL-6CWD-500 Green/Black Tea Wither Machine 2200 rpm Motor Speed for Optimal Withering

Industrial grade color steel plate

Adopt industrial grade color steel plate, good heat preservation and insulation effect, small heat loss, light weight, high strength, ensure the quality of the machine.

DL-6CWD-500 Green/Black Tea Wither Machine 2200 rpm Motor Speed for Optimal Withering
Packing & Delivery
DL-6CWD-500 Green/Black Tea Wither Machine 2200 rpm Motor Speed for Optimal Withering
DL-6CWD-500 Green/Black Tea Wither Machine 2200 rpm Motor Speed for Optimal Withering
DL-6CWD-500 Green/Black Tea Wither Machine 2200 rpm Motor Speed for Optimal Withering
DL-6CWD-500 Green/Black Tea Wither Machine 2200 rpm Motor Speed for Optimal Withering
Company Information

Obtain ISO9001 quality system certification

More than 30 Chinese honorary certificates

More than 20 Chinese national patent certificates

More than 50 promotion certificates of China Agriculture Ministry

DL-6CWD-500 Green/Black Tea Wither Machine 2200 rpm Motor Speed for Optimal Withering
DL-6CWD-500 Green/Black Tea Wither Machine 2200 rpm Motor Speed for Optimal Withering
DL-6CWD-500 Green/Black Tea Wither Machine 2200 rpm Motor Speed for Optimal Withering
DL-6CWD-500 Green/Black Tea Wither Machine 2200 rpm Motor Speed for Optimal Withering

Part of the our workshop photos

DL-6CWD-500 Green/Black Tea Wither Machine 2200 rpm Motor Speed for Optimal Withering
